AV-ECD 自動車用電子制御装置

2.5.- オートモーティブエレクトロニクス

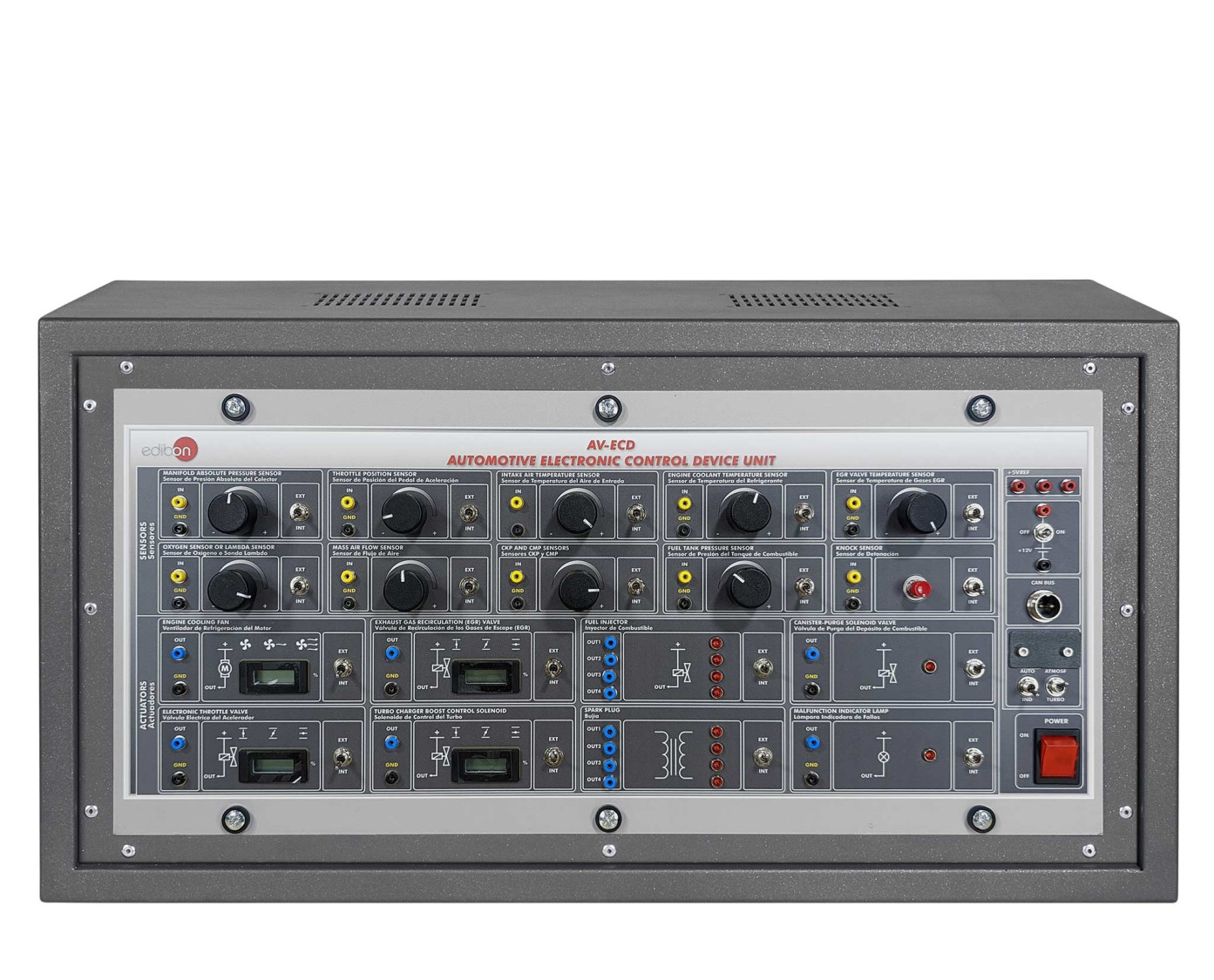

AUTOMOTIVE ELECTRONIC CONTROL DEVICE UNIT - AV-ECD

革新的なシステム

The Automotive Electronic Control Device Unit included in the "AV-ECD" designed by EDIBON allows the flashing an ECU (electronic control unit) with different programs, changing the response of the ECU to different input signals, etc.

一般的な説明を表示

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア

関連ニュース

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
続きを読む
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
続きを読む

概要

The Automotive Electronic Control Device Unit, "AV-ECD", provides a practical solution to the introduction of electronic control units or ECUs.

The Automotive Electronic Control Device Unit, "AV-ECD", is composed of an Electronic Control Unit (ECU) configured to work with the emulated sensors and actuators included in the unit, but the "AV-ECD" can also work in conjunction with other EDIBON units: it can operate with the sensors of the Automotive Sensors Unit, "AV-S" and with the actuators of the Automotive Actuators Unit, "AV-A".

The "AV-ECD" unit includes a combination of sensors and actuators that generate and receive the same signal as the sensors and actuators of the automotive computers. The emulated sensors and actuators included in the unit are focused on the engine management system: knock sensor, engine coolant sensor, Lambda sensor, camshaft position sensor, turbocharger boost control solenoid, electronic throttle valve, engine cooling fan, etc.

The communication protocol of the ECU varies depending on the characteristics of the sensors and actuators connected. This communication with the electronic control units can be done through CAN or LIN network protocols or through digital or analog signals.

All sensor and actuator circuits included in the unit are isolated to understand the function of the circuits separately. Each circuit has different test points accessible through 2 mm standard lab sockets.

The sensor and actuator circuits allow the simulation of faults in the components, inserted with toggle switches. The system faults are indicated by the malfunction indicator lamp (MIL). The sensors and actuators can work individually or with other related sensors and actuators.

The "AV-ECD" circuits include a series of faults, which can be inserted to the input and output signals of the ECU, to allow the students to detect and understand common faults of the electronic components.

The "AV-ECD" unit is provided with a different set of practical exercises, through which the student will understand how the electronic control units work.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

Electronic control unit (ECU):

  1. ECU self-diagnosis to detect faults.
  2. Absolute pressure sensor signal.
  3. Function of the fuel tank pressure sensor and the canisterpurge solenoid valve.
  4. Coolant temperature sensor signal.
  5. Function of the exhaust gas recirculation (EGR) temperature sensor.
  6. Function of the accelerator pedal position sensor.
  7. Oxygen or Lambda sensor signal.
  8. Mass air flow sensor signal.
  9. Intake air temperature sensor signal.
  10. Crankshaft position sensor signal.
  11. Camshaft position sensor signal.
  12. Checking faults in the sensor signals.
  13. Turbocharger boost solenoid control signal.
  14. Function of the exhaust gas recirculation (EGR) valve.
  15. Understanding the electronic throttle valve function.
  16. Function of the fuel pump.
  17. Spark plug control signal.
  18. Fuel injector control signal.
  19. Engine cooling fan control signal.
  20. Checking faults in the actuator signals.
  21. ECU self-diagnostic function.
  22. Reprogram the ECU with the atmospheric engine configuration.
  23. Reprogram the ECU with the turbocharged engine configuration.

より実用的な練習をして、ユニットを完成させる

  1. Several other exercises can be done and designed by the user.
