FME19 キャビテーション（空洞）現象デモンストレーション装置

8.1.4.- 静水圧

CAVITATION PHENOMENON DEMONSTRATION - FME19

Complete FME19 Unit

FME19 Unit with service unit FME00

革新的なシステム

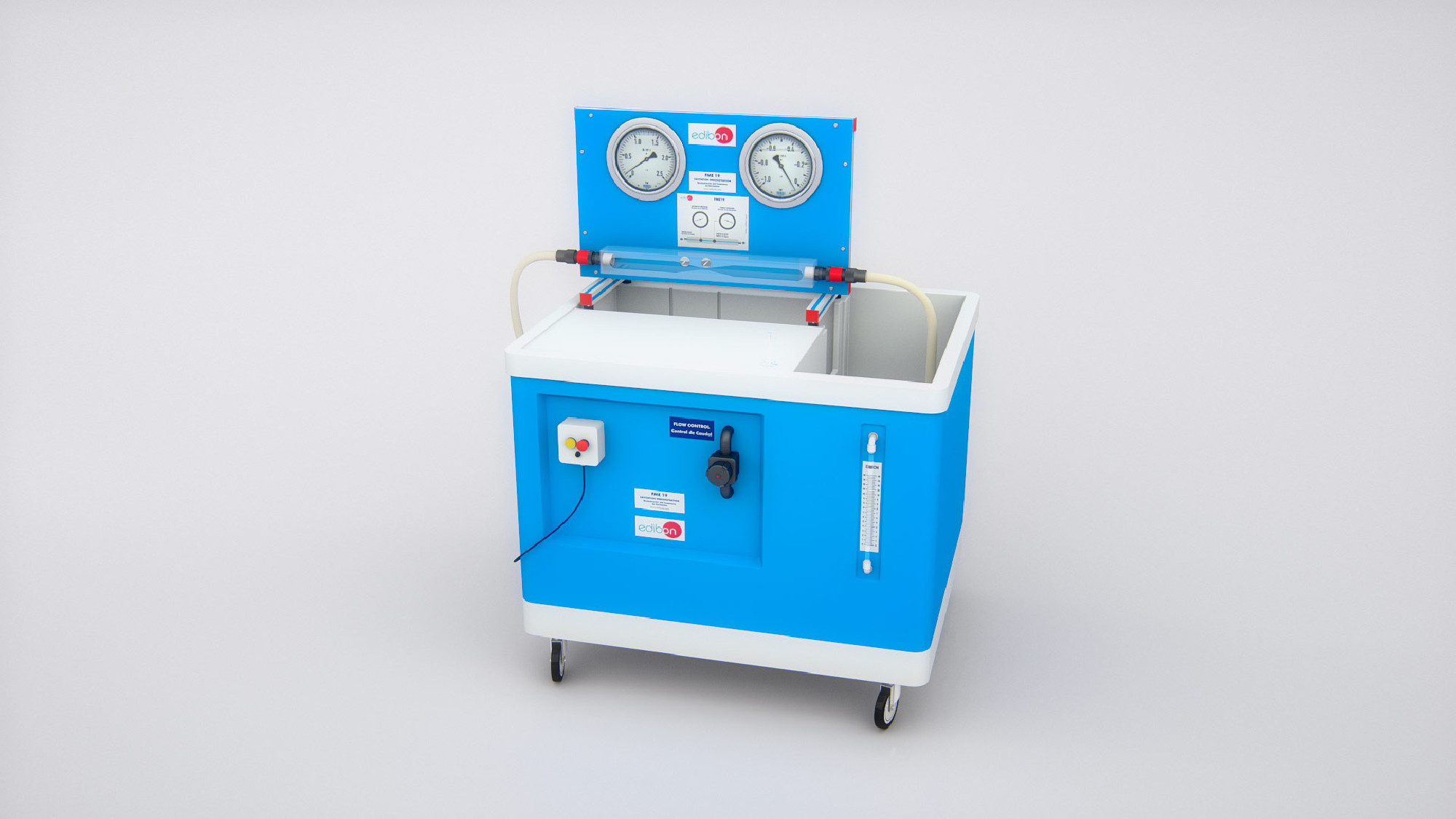

The Cavitation Phenomenon Demonstration unit, "FME19", designed by EDIBON is composed of a Venturi tube with a rectangular cross section, one of its sides being transparent, allowing a better visualization of the cavitation phenomenon.

一般的な説明を表示

カタログ

コンテストの仕様

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア

MSAC

モジュラーな取得および制御システム

研究室

8TV

技術教育・職業教育のための流体力学研究室

8HE

高等教育用流体力学研究室

概要

It includes a manometer and a vacuum meter that are respectively connected to the inlet section and to the reduction throat section.

The existing pressure in the Venturi sections is transmitted by thin capillary tubes placed at the back of the frame.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

Study of cavitation.
Visualization of the cavitation phenomenon with forced conduction.

必要なアイテム

補完的な機器

BASIC FLUIDS MECHANICS INTEGRATED LABORATORY - LIFLUBA

LIFLUBA

Available

8.1.7.- 油圧機械: タービン

LIFLUBA

基礎流体力学統合実験室：

Hydraulics is the branch of science that deals with the mechanical properties of fluids, and Fluid Mechanics provides the foundation for hydraulics.With LIFLUBA (Basic Fluids Mechanics Integrated Laboratory), EDIBON tries to give answer to the...

FME01

Available

8.1.4.- 静水圧

FME01

表面へのジェットインパクト

The unit consists of a cylindrical tank with lateral transparent surfaces where a nozzle, connected to the Hydraulics Bench (FME00), is aligned with a device in which the problem surface is fitted. The vertical force made by the water against the...

BERNOULLI'S THEOREM DEMONSTRATION - FME03

FME03

Available

8.1.4.- 静水圧

FME03

ベルヌーイの定理デモンストレーション装置

The Bernoulli's Theorem Demonstration unit, "FME03", designed by EDIBON is mainly composed of a circular section pipe with the shape of a truncated cone, transparent and with seven pressure taps that allows to measure, simultaneously, the static...

FME04

Available

8.1.4.- 静水圧

FME04

オリフィス放水実験装置

The Orifice Discharge Unit, "FME04", designed by EDIBON allows the study of the different concentration, discharge and velocity coefficients for thin and/or thick wall for different types: colloidal, Venturi or diaphragm.The unit consists of a...

FME14

Available

8.1.4.- 静水圧

FME14

自由・強制渦巻き流実験装置

The Forced and Free Vortex unit, "FME14", designed by EDIBON, allows the study of the fluid rotation in relation to an axis and the study of circular flow at changing velocities.The unit has a cylindrical and transparent deposit with two inlet...

FME17

Available

8.1.4.- 静水圧

FME17

オリフィス・自由噴流実験装置

The Orifice and Free Jet Flow unit, "FME17", designed by EDIBON, allows the study of the different discharge and velocity coefficients in permanent or variable regime as well as the calculation of the discharge times.The unit consists of a...

VENTURI, BERNOULLI AND CAVITATION UNIT - FME22

FME22

Available

8.1.4.- 静水圧

FME22

ベンチュリ、ベルヌーイ・キャビテーション実験装置

The Venturi, Bernoulli and Cavitation unit, "FME22", has been designed by EDIBON to demonstrate some of the practical possibilities that can be achieved with a Venturi tube.This unit is designed for demonstrating some practical possibilities with...

DATA ACQUISITION SYSTEM AND SENSORS - BDAS

BDAS

Available

8.1.7.- 油圧機械: タービン

BDAS

EDIBON FMEシリーズ用基本データ取得システム（コンピューター・センサー）：

BDAS is designed to monitor the measurements of each unit type "FME" from a computer (PC).This system can monitor any unit, checking the revolutions given by the water pump or the torque, differential pressures for Bernoulli theorems, pressure...

品質

アフターサービス

その他の情報については, お問い合わせください
