The Chemical Reactors, "QR", has been designed by EDIBON for the study and comparison of different types of chemical reactors in an easy and simple way and thus allowing, on a small scale, to carry out the necessary studies and practices to understand the operation of the reactors.

一般的な説明を表示

関連ニュース

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
続きを読む
Second-generation biofuels: the sustainable future at EDIBON
Second-generation biofuels: the sustainable future at EDIBON
In a world where energy demand continues to rise and non-renewable resources are rapidly depleting, the need for sustainable, environmentally friendly solutions has never been more urgent. The circular economy and the use of organic biomass to produce biofuels are emerging as key answers to...
続きを読む

概要

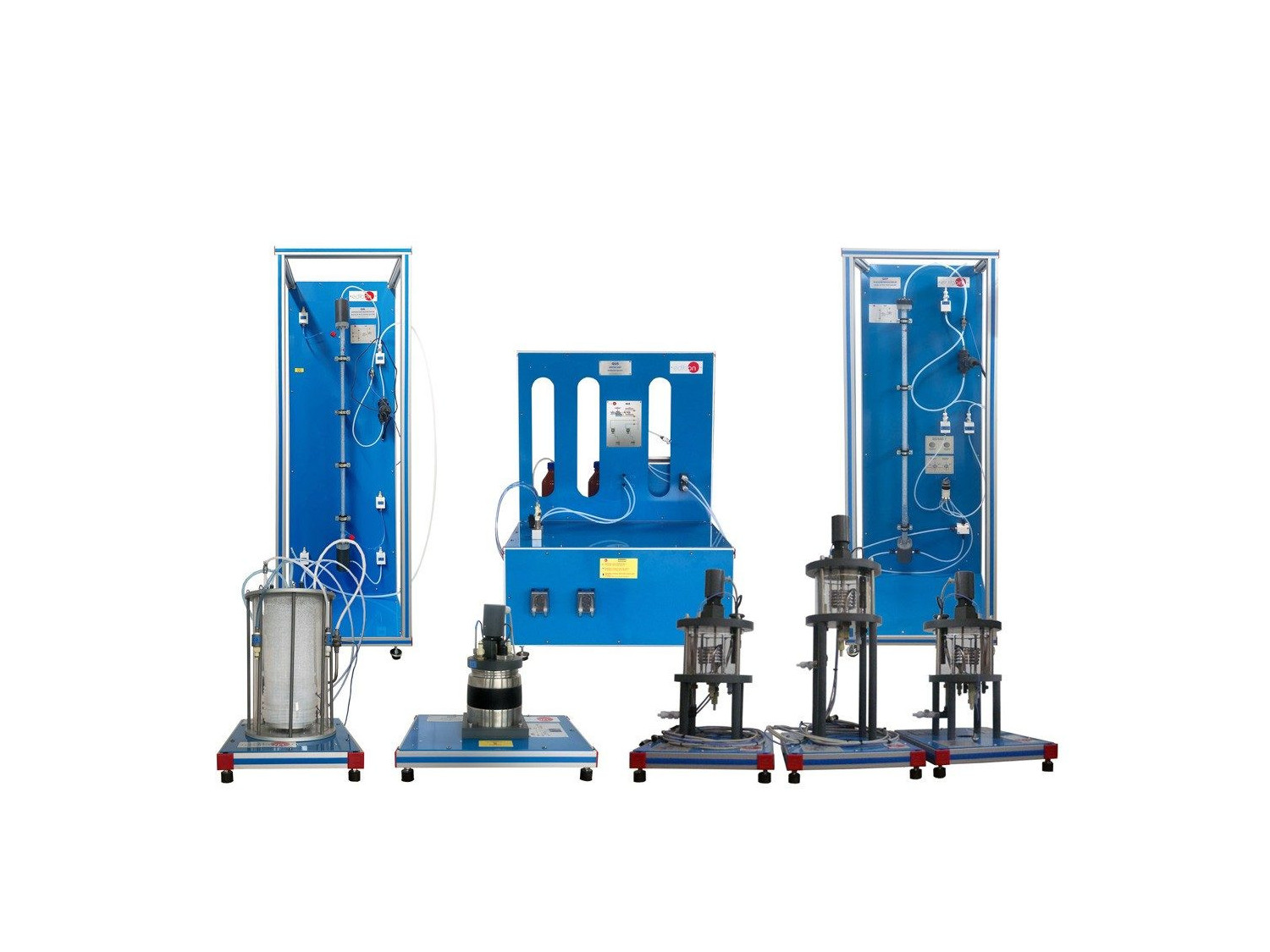

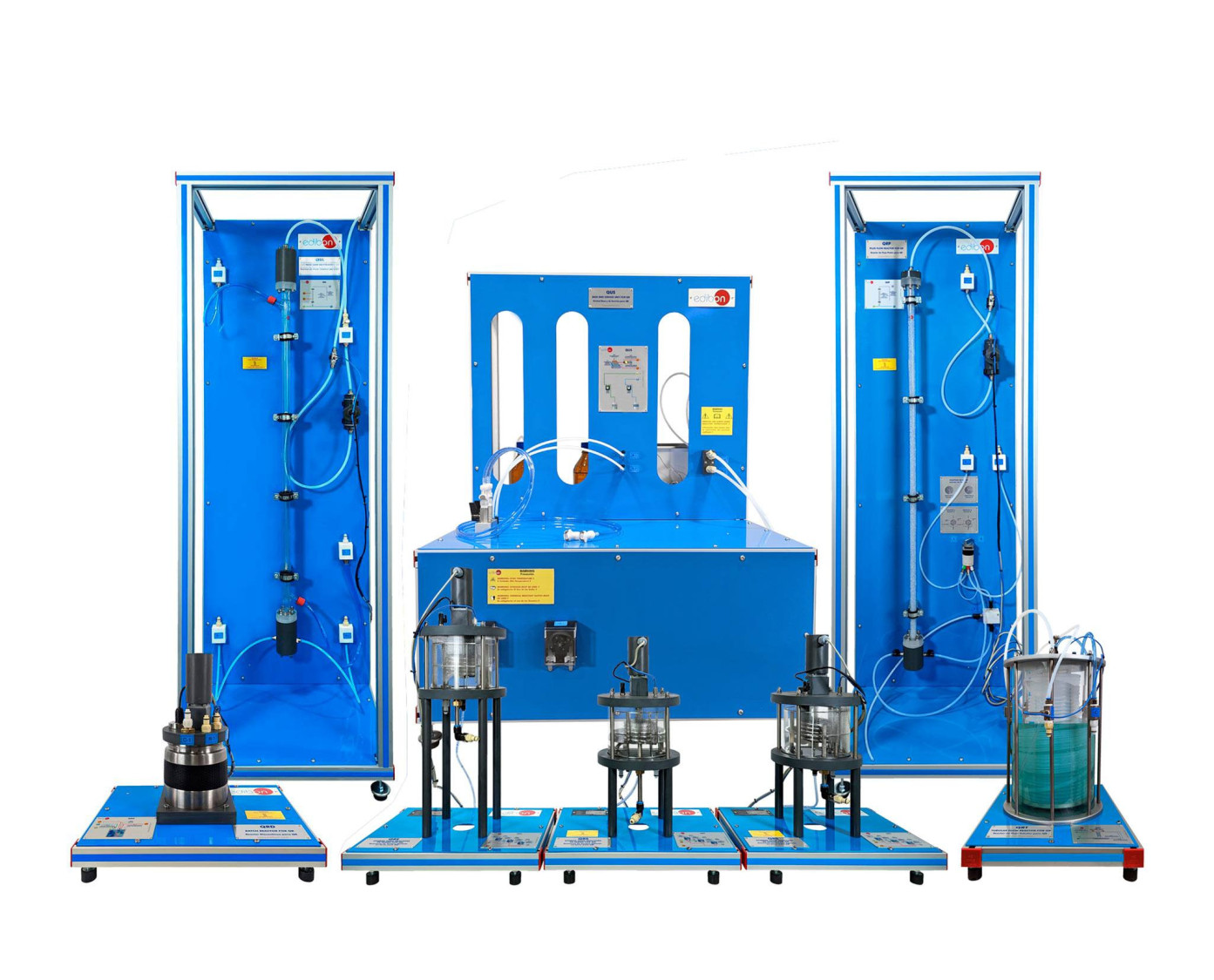

The Chemical Reactors, "QR", has been designed by EDIBON for the study and comparison of different types of chemical reactors in an easy and simple way and thus allowing, on a small scale, to carry out the necessary studies and practices to understand the operation of the reactors.

These reactors allow for the comparison of different types of chemical reactors, and with each type of reactor, the study of the influence of reaction temperature and residence time is enabled, thanks to the thermostatic bath, two 1 l tanks, and two regulation pumps of up to 3 l/min included in the supply.

The Service Unit for QR, "QUS", provides the necessary elements for the operation of the different reactors. It performs the following functions:

  • Reagent supply: consisting of two 1 liter pyrex containers each located at the back, two dosing pumps and all the necessary connections.
  • Temperature control: consisting of a thermostatic bath and an impulsion pump.
  • Quick and easy to perform reactor exchange and positioning system.
  • This unit allows feeding reagents and temperature control of reactors with a volume up to 1.5 l.

付属品

CONTINUOUS STIRRED TANK REACTOR FOR QR - QRCA
  • QRCA
Available
11.2.- 化学反応器
QRCA
QR用の攪拌連続タンク反応器

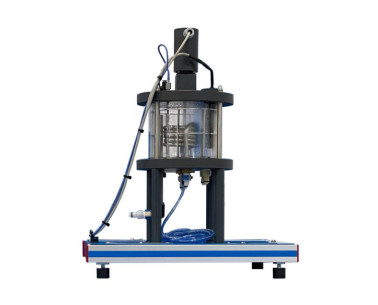

The Continuous Stirred Tank Reactor for QR, "QRCA", designed by EDIBON, provides a controlled environment for detailed kinetic study of homogeneous liquid-liquid chemical reactions.This type of reactor, also known as CSTR (Continuous Stirred-Tank...
ユニットを見る
TUBULAR FLOW REACTOR FOR QR - QRT
  • QRT
Available
11.2.- 化学反応器
QRT
QRチューブラーリアクター
The Tubular Flow Reactor for QR, "QRT", has been designed by EDIBON to conduct the kinetic study of homogeneous liquid-liquid reactions.In this unit, a continuous stream of reactants is passed through, which mix and react as they flow through the...
ユニットを見る
BATCH REACTOR FOR QR - QRD
  • QRD
Available
11.2.- 化学反応器
QRD
バッチリアクター
The Batch Reactor for QR, "QRD", designed by EDIBON, enables the study and kinetic analysis of homogeneous liquid-liquid reactions, as well as the demonstration of adiabatic and isothermal reactions.This unit offers a wide range of opportunities...
ユニットを見る
LAMINAR FLOW REACTOR FOR QR - QRL
  • QRL
Available
11.2.- 化学反応器
QRL
QR用の層流反応器
The Laminar Flow Reactor for QR, "QRL", designed by EDIBON, allows determining the kinetic equations of various reactions, such as the basic hydrolysis of ethyl acetate, and calculating key kinetic constants. Laminar flow reactors, a variant of...
ユニットを見る
PLUG FLOW REACTOR FOR QR - QRP
  • QRP
Available
11.2.- 化学反応器
QRP
QR用ピストンフローリアクター
The Plug Flow Reactor for QR, "QRP", designed by EDIBON, allows studying and investigating the kinetics of reactions and flow behavior in chemical systems. A plug flow reactor is a type of tubular reactor that assumes the assumption of no axial...
ユニットを見る

演習と指導の慣行

マニュアルに含まれるガイド付き実習

Practices to be done with the Continuous Stirred Tank Reactor (QRCA):

  1. Determination of the ionic conductivities.
  2. Batch operation. Obtaining of the reaction order respect to ethyl- Acetate. Initial velocity method.
  3. Batch operation. Obtaining of the reaction order respect to sodium hydroxide. Initial velocity method.
  4. Batch operation. Velocity Constant Computation. Constant sodium hydroxide initial concentration.
  5. Batch operation. Velocity Constant Computation. Constant ethylacetate initial concentration.
  6. Velocity equation formulation.
  7. Batch operation. Variation of the kinetic constant with temperature. Arrhenius Equation.
  8. Batch operation. Theoretical and experimental conversion comparative. Deviation from ideality.
  9. Batch operation. Mixture effects.
  10. Continuous operation.
  11. Continuous operation. Mixture effects.
  12. Conductivity measurement system: conductimeter.
  13. Variation of conversion with residence time.
  14. Residence time distribution.
  15. Determination of the reaction rate constant.

Practices to be done with the Tubular Flow Reactor (QRT):

  1. Analysis of reagents and products.
  2. Ionic conductivities determination.
  3. Theoretical conversion of the tubular reactor.
  4. Experimental determination of the conversion of the tubular reactor.
  5. Dependence of the residence time.
  6. Determination of the reaction order.
  7. Dependence of the speed constant and the conversion with the temperature.
  8. Conductivity measurement system: conductimeter.
  9. Complete emptying of the unit.
  10. Determination of the reaction rate constant.

Practices to be done with the Batch Reactor (QRD):

  1. Determination of the ionic conductivities.
  2. Batch operation. Calculation of the order of the reaction referred to the ethyl-acetate. Initial velocity method.
  3. Batch operation. Determination of the order of the reaction referred to the sodium hydroxide. Initial velocity method.
  4. Batch operation. Determination of the speed constant, the initial concentration of the sodium hydroxide is constant.
  5. Batch operation. Determination of the speed constant, the initial concentration of the ethyl acetate is constant.
  6. Formulation of the speed equation.
  7. Batch operation. Variation of the kinetic constant when the temperature is not constant: Arrhenius equation.
  8. Batch operation. Comparison of the theoretical and the experimental conversion: Deviation from the ideality.
  9. Calculation of the heat transference coefficient of the coil.
  10. Calculation of the hydrolysis reaction enthalpy.
  11. Batch operation. Mixture effects.
  12. Conductivity measurement system: conductimeter.

Practices to be done with Stirred Tank Reactors in Series (QRS):

  1. Investigation of dynamic behaviour of stirred tank reactors in series.
  2. Determination of the ionic conductivities.
  3. Influence of flow rate.
  4. Work with just one reactor in continuous.
  5. Work with just one reactor in continuous with mixture effects.
  6. Work with 3 reactors in continuous.
  7. Effect of step input change.
  8. Response to an impulse change.
  9. Investigation of time constant using dead time coil.

Practices to be done with Laminar Flow Reactor (QRL):

  1. Determination of the residence time distribution of the reactor.
  2. Effect of flow rate and feed concentration on the determination of flow pattern.
  3. Steady state conversion for a reaction with laminar flow.
  4. Effect of flow rate and feed concentration on the steady state conversion.
  5. Demonstration of the flow pattern in the reactor and comparison with the theoretical model.
  6. Effect of the temperature on the laminar flow characterisation.
  7. Determination of the steady state conversion of a second order reaction.
  8. Flow pattern characterisation in a laminar flow reactor.
  9. Conductivity measurement system: conductimeter.

Practices to be done with Plug Flow Reactor (QRP):

  1. Determination of the residence time distribution of the reactor.
  2. Effect of flow rate and feed concentration on the determination of flow pattern.
  3. Study of the reactor response to different perturbations: step and pulse change.
  4. Effect of flow rate and feed concentration on the steady state conversion.
  5. Demonstration of the flow pattern in the reactor and comparison with the theoretical model.
  6. Determination of the steady state conversion of a second order reaction.
  7. Understanding the principles of tracer techniques in flow pattern characterisation.
  8. Conductivity measurement system: conductimeter.
