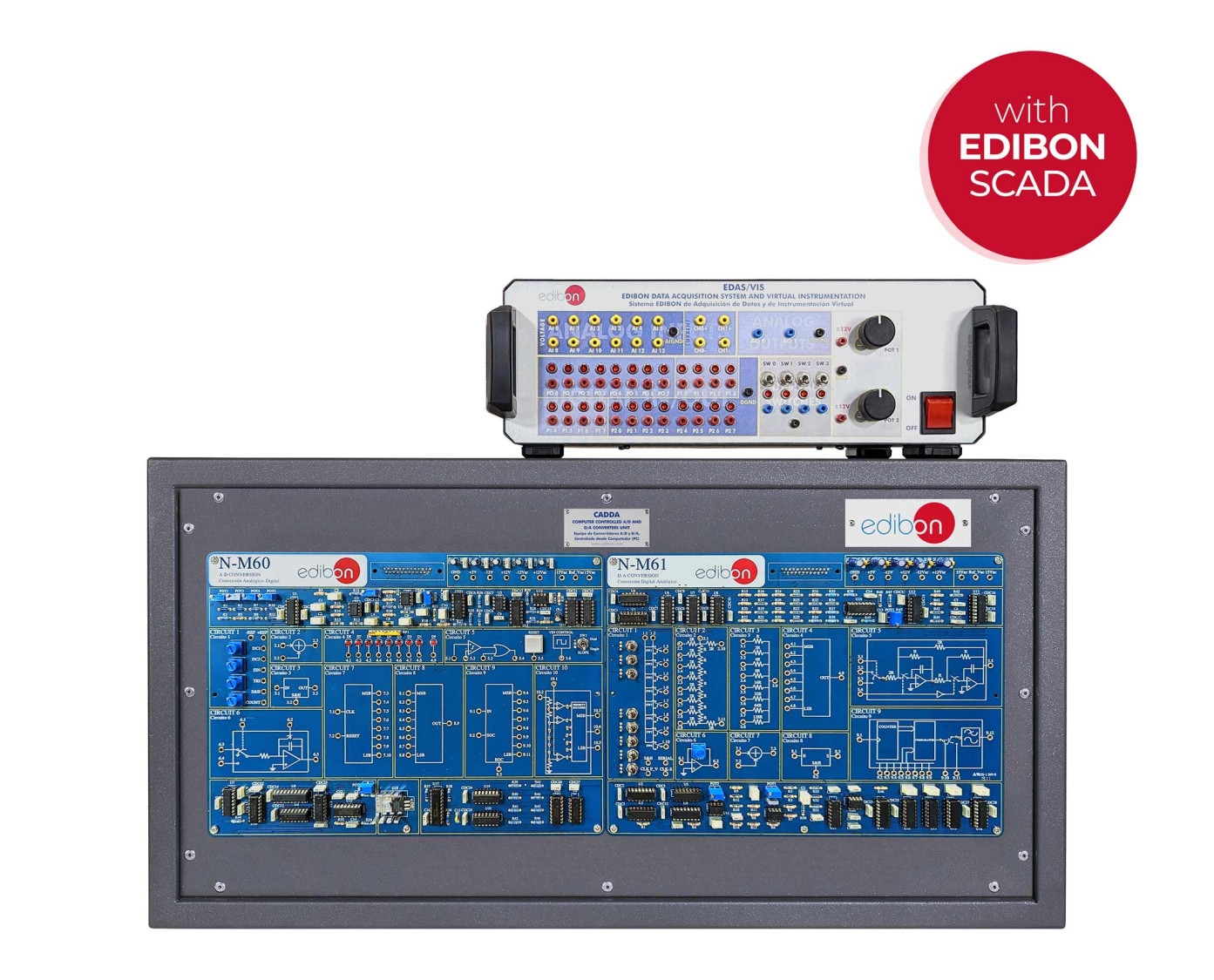

COMPUTER CONTROLLED A/D AND D/A CONVERTERS UNIT - CADDA

革新的なシステム

"CADDA" unit is the Computer Controlled Teaching Unit for the Study of Analog/Digital and Digital/Analog Converters, designed by EDIBON. It covers the basic principles about analog to digital converters and digital to analog converters, and allows to displaying the results on the computer.

一般的な説明を表示

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア
ECR

NI CompactRIOを使用したEDIBONの産業用モジュラーシステム
ESN

EDIBON Scada-Netシステム

研究室

2TV
 技術教育・職業教育のための電子実験室
2HE
 高等教育電子工学研究室
11PTC
 石油研修センター研究室

関連ニュース

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
続きを読む
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
続きを読む

概要

The Computer Controlled A/D and D/A Converters Unit, "CADDA", unit has been designed to help the students to learn how to perform the most common procedures and study the different circuits used to convert analog signals in a digital signals and vice versa.

The unit also allows the user to study in detail other circuits related with the analog to digital conversion and digital to analog conversion, such as adder circuit, sample and hold circuit, series converter, frequency to voltage converter, etc.

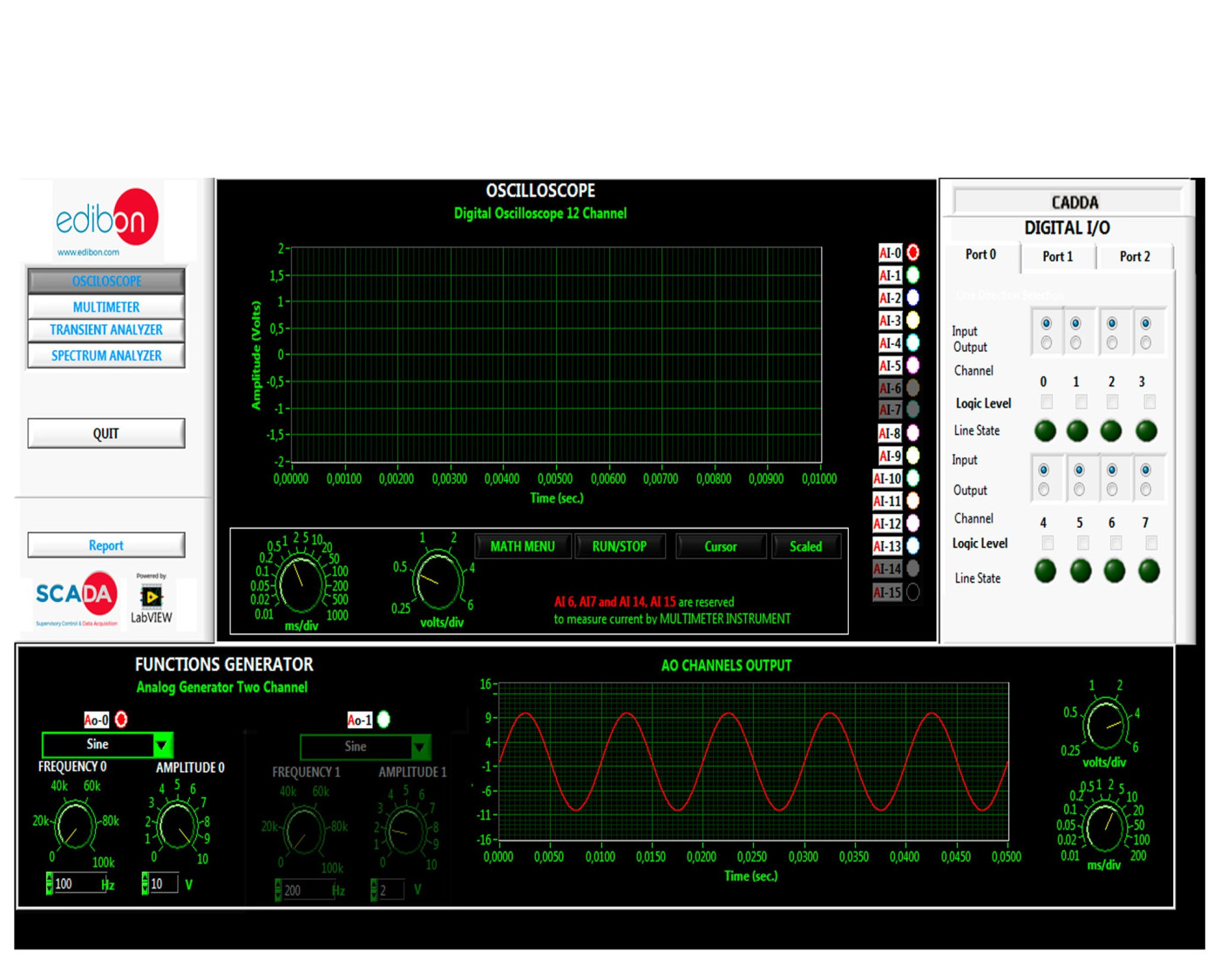

The unit includes a data acquisition system to acquire multiple analog signals and show the signals on the computer. The data acquisition system allows the user to generate a variety of waveforms (with the analog outputs) in order to test the different circuits with different analog signals. The data acquisition system also allows to use 24 digital inputs/outputs configurable as inputs or outputs.

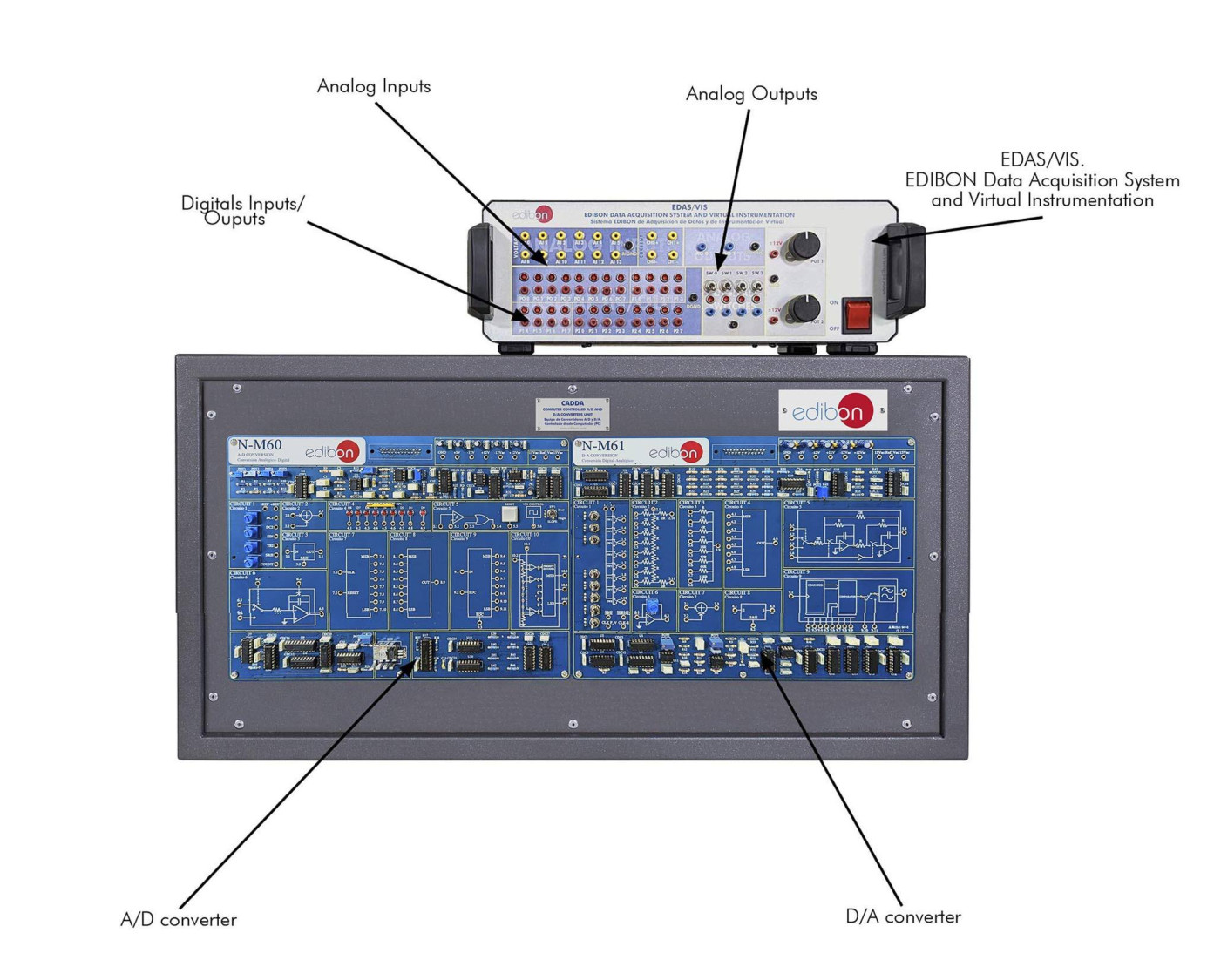

The "CADDA" unit includes the following elements:

  • N-M60. Analog/Digital Converters Module.
  • N-M61. Digital/Analog Converters Module.
  • EDAS/VIS-0.25. EDIBON Data Acquisition System and Virtual Instrumentation (speed: 250,000 samples/s).

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

  1. Sampling theorem.
  2. Monopolar simple ramp converter.
  3. Monopolar double ramp converter.
  4. Monopolar binary ramp converter.
  5. A/D integrated converter. Monopolar assembly.
  6. A/D integrated converter. Bipolar assembly.
  7. Flash converter.
  8. D/A converter of weighted divider resistors.
  9. Analog switches errors.
  10. D/A converter of R-2R ladder.
  11. Current division in R-2R ladder converter.
  12. D/A converter of inverted ladder.
  13. D/A integrated converter.
  14. Serial data input D/A converter.
  15. D/A converter of pulse width modulation.

より実用的な練習をして、ユニットを完成させる

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc. in real time.
  3. The Computer Control System with SCADA allows a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the CADDA unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the CADDA unit process.
  9. Several other exercises can be done and designed by the user.

含まれるアイテム

利用可能な類似の機器

ANALOG/DIGITAL CONVERTERS MODULE - N-M60
  • N-M60
Available
2.3.3.- デジタルエレクトロニクス
N-M60
Analog/Digital Converters Module
Most of the "information" generated in the world by various physical phenomena has a strong analogical character. This means that the information undergoes a continuous variation within certain limits determined over time. Of course, there is also...
ユニットを見る
DIGITAL/ANALOG CONVERTERS MODULE - N-M61
  • N-M61
Available
2.3.3.- デジタルエレクトロニクス
N-M61
Digital/Analog Converters Module
Digital/analog conversion happens when you want to recover or re-obtain a digital signal that has been processed and we want to regenerate it. A signal that has been sampled, for example, a temperature signal and we need to return it to the...
ユニットを見る
