POAC コンピューター制御高度酸化実験装置

13.3.- 廃水処理

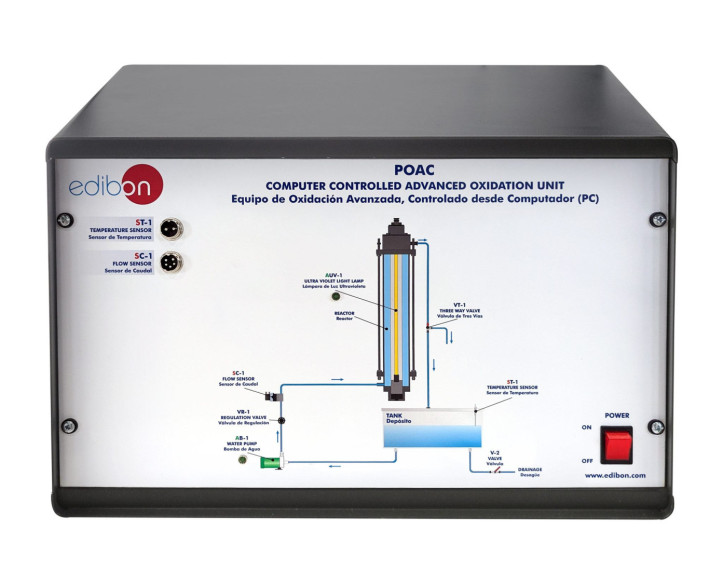

COMPUTER CONTROLLED ADVANCED OXIDATION UNIT - POAC

革新的なシステム

The Computer Controlled Advanced Oxidation Unit "POAC" generates hydroxyl radicals (OH-) through ultraviolet light radiation with hydrogen peroxide.

一般的な説明を表示

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア
FSS

故障シミュレーションシステム
PLC

PLCによる産業プロセス制御
PLCHMI

HMIを使用したローカル/リモートIIoT制御と監視
ELK

EDIBONソフトウェア開発キット、NI LabVIEW™による動作
ECR

NI CompactRIOを使用したEDIBONの産業用モジュラーシステム
ESN

EDIBON SCADA-Net
ECL

EDIBON遠隔教育

研究室

11TV
 化学工学研究室
11HE
 高等教育化学工学研究室
11PTC
 石油研修センター研究室

関連ニュース

CO₂ adsorption: a current necessity
CO₂ adsorption: a current necessity
In a world where climate change represents one of the greatest threats to our future, carbon dioxide (CO2) adsorption has become an urgent priority. The increasing concentration of CO2 in the atmosphere, primarily driven by human activities such as fossil fuel combustion and deforestation, has...
続きを読む
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
続きを読む
ダイレクトエアキャプチャー：気候変動対策の鍵となる技術
ダイレクトエアキャプチャー：気候変動対策の鍵となる技術
ダイレクトエアキャプチャー (DAC) は、液体溶媒や固体吸収剤との化学反応を利用して空気中のCO₂を直接除去する革新的な技術です。コストの高さやエネルギー消費といった課題はあるものの、DACは大気中のCO₂濃度を減らし、気候変動を緩和する潜在的な解決策を提供します。DACの研究開発を継続することが、その実現可能性と効果を向上させるために重要です。
続きを読む
飲料水処理システムの理解と改善
飲料水処理システムの理解と改善
下水処理施設 飲料水処理プラントが安全な飲料水の供給に焦点を当てる一方で、下水処理施設は使用済みの水を再び環境に放出する前に処理します。 これらの施設は、水資源と公衆衛生の保護に重要な役割を果たします。 高度な処理技術は、汚染物質を除去し、処理された水が環境基準を満たすことを保証します。
続きを読む
Setting up at Universidad de Oviedo
Setting up at Universidad de Oviedo
We want to present the installation that we have made in the Department of Chemical Engineering and Environmental Technology of the Oviedo University (UNIOVI) We are very proud to contribute to student learning and to be able to work in projects like this.
続きを読む

概要

The Computer Controlled Advanced Oxidation Unit "POAC" generates hydroxyl radicals (OH-) through ultraviolet light radiation with hydrogen peroxide.

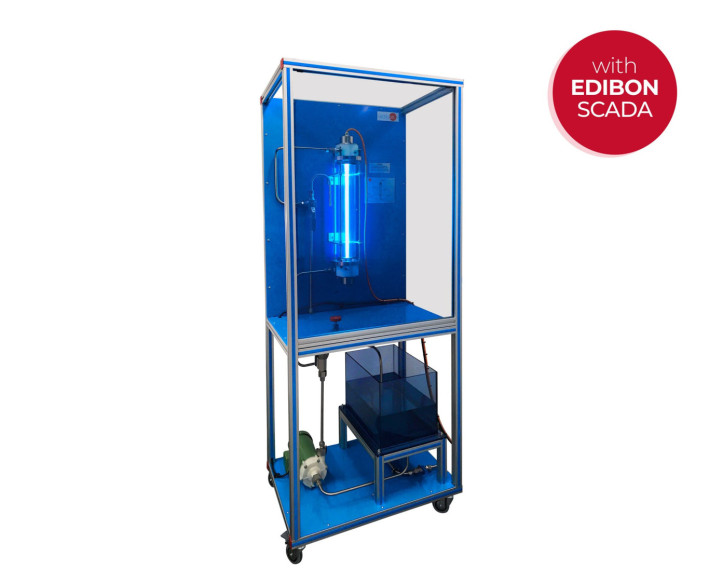

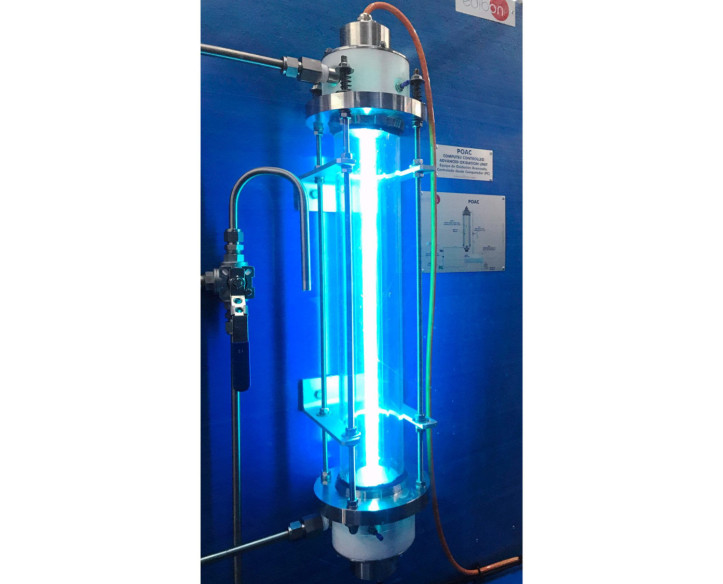

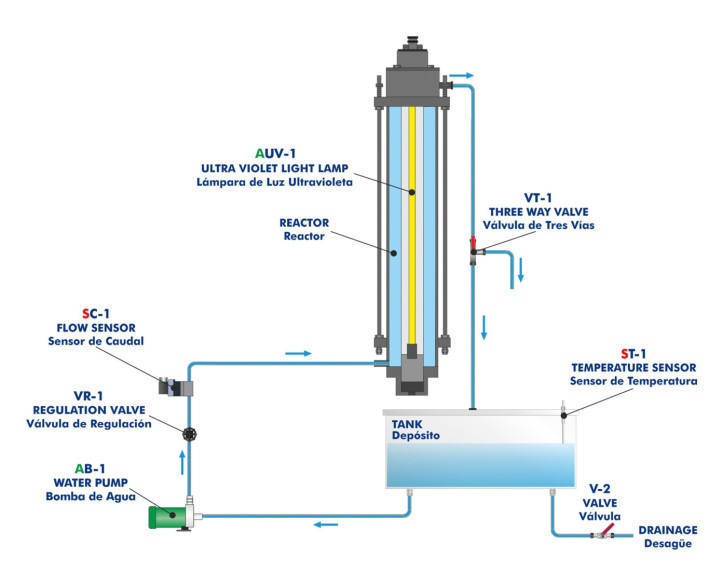

Raw water is enriched with hydrogen peroxide in a transparent tank and is driven by a pump towards a reactor where an ultraviolet lamp with protective tube is lodged.

The reactor has manifolds at its upper part that allow the flow of raw water forming a falling film on the inner walls of the reactor. As it descends, it receives ultraviolet light radiation, forming hydroxyl radicals, which oxidize non-biodegradable soluble substances from the water to be treated.

The reactor is open by its upper side. Water flows towards the tank, forming a closed circuit. A flow sensor allows to measure the raw water flow rate through the circuit.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

  1. Study of advanced oxidation process for wastewater treatment.
  2. Study of advanced oxidation with hydrogen peroxide and UV light.
  3. Influence of the amount of hydrogen peroxide in the oxidation process.
  4. Analysis of the reaction kinetics.
  5. Sensors calibration.

より実用的な練習をして、ユニットを完成させる

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains: proportional, integral, derivative parameters, etc. in real time.

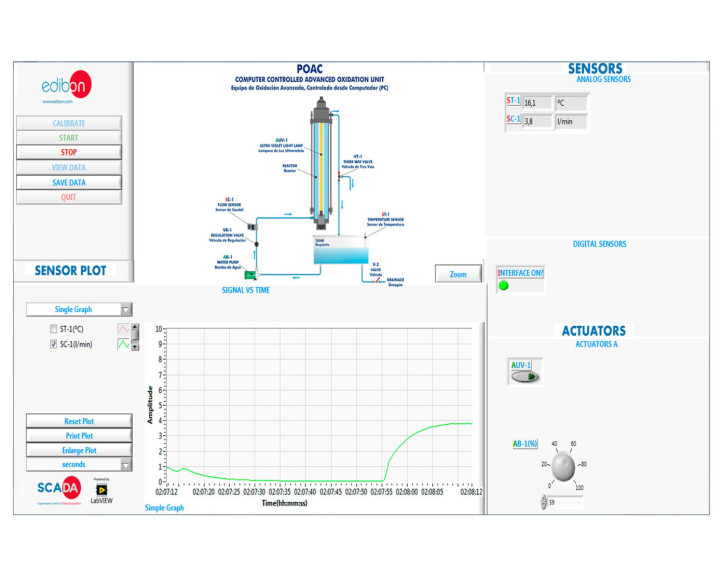

  3. The Computer Control System with SCADA allows a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
    5. This unit can be used for doing applied research.
11.- This unit can be used for giving training courses to Industrieseven to other Technical Education Institutions.12.- Control of the POAC unit process through the control interfacebox without the computer.13.- Visualization of all the sensors values used in the POAC unitprocess.- By using PLC-PI additional 19 more exercises can be done.- Several other exercises can be done and designed by the user.
