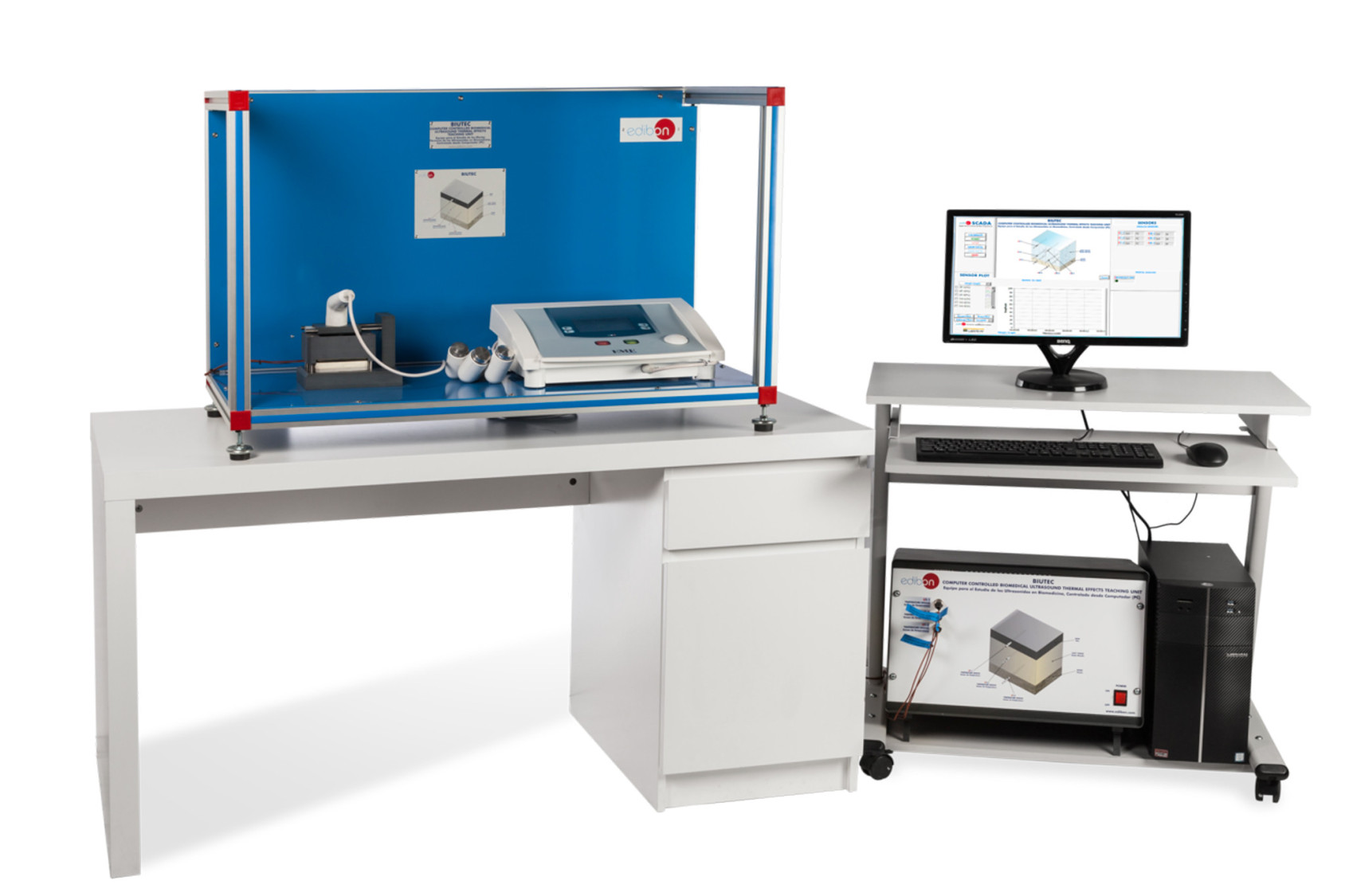

Complete BIUTEC unit

COMPUTER CONTROLLED BIOMEDICAL ULTRASOUND THERMAL EFFECTS TEACHING UNIT - BIUTEC

Unit details

COMPUTER CONTROLLED BIOMEDICAL ULTRASOUND THERMAL EFFECTS TEACHING UNIT - BIUTEC

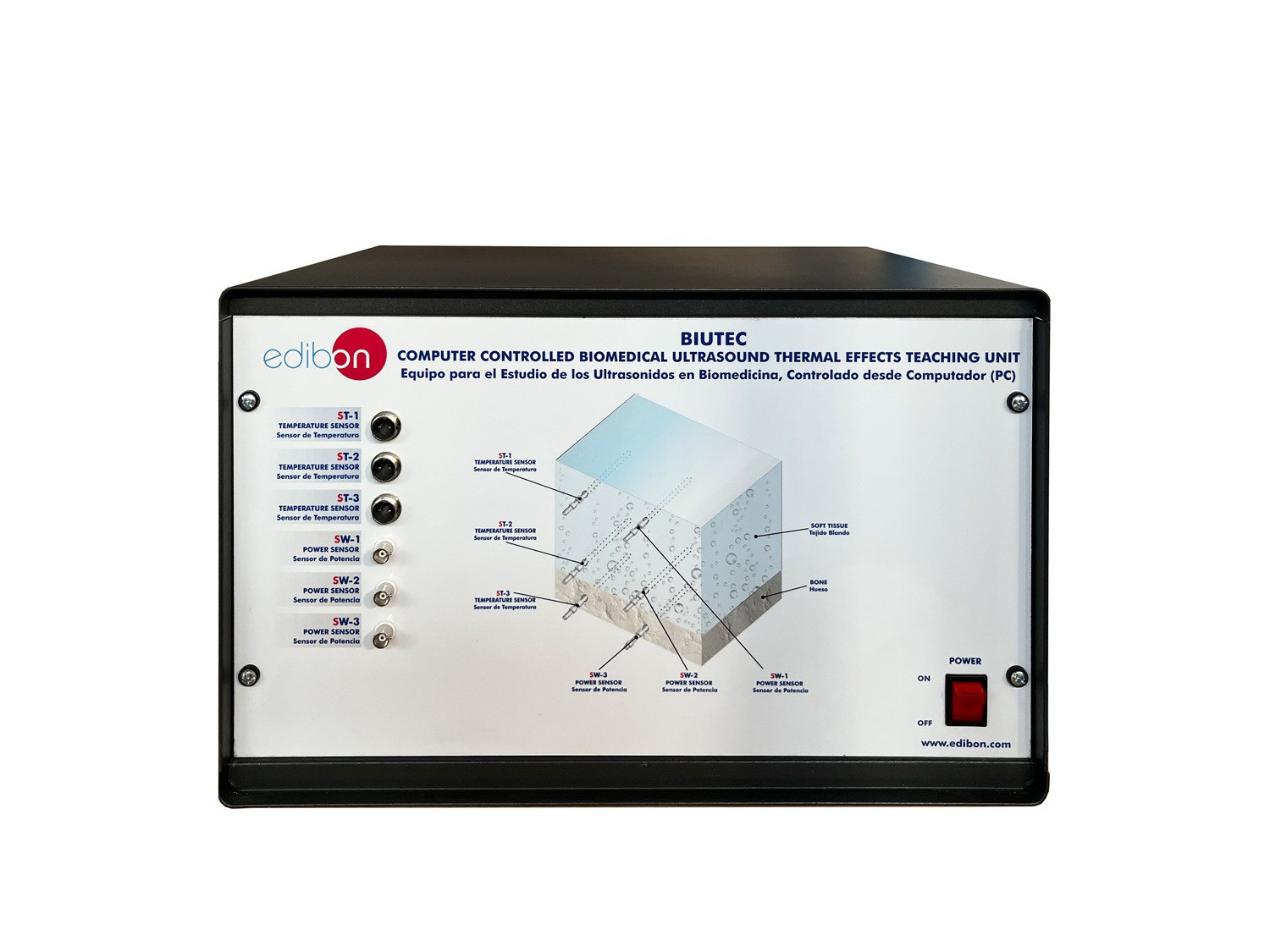

BIUTEC/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED BIOMEDICAL ULTRASOUND THERMAL EFFECTS TEACHING UNIT - BIUTEC

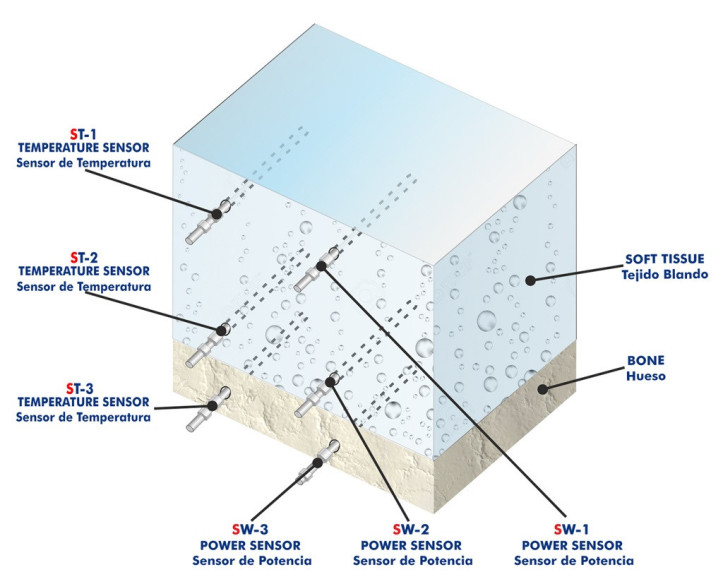

Process diagram and unit elements allocation

COMPUTER CONTROLLED BIOMEDICAL ULTRASOUND THERMAL EFFECTS TEACHING UNIT - BIUTEC

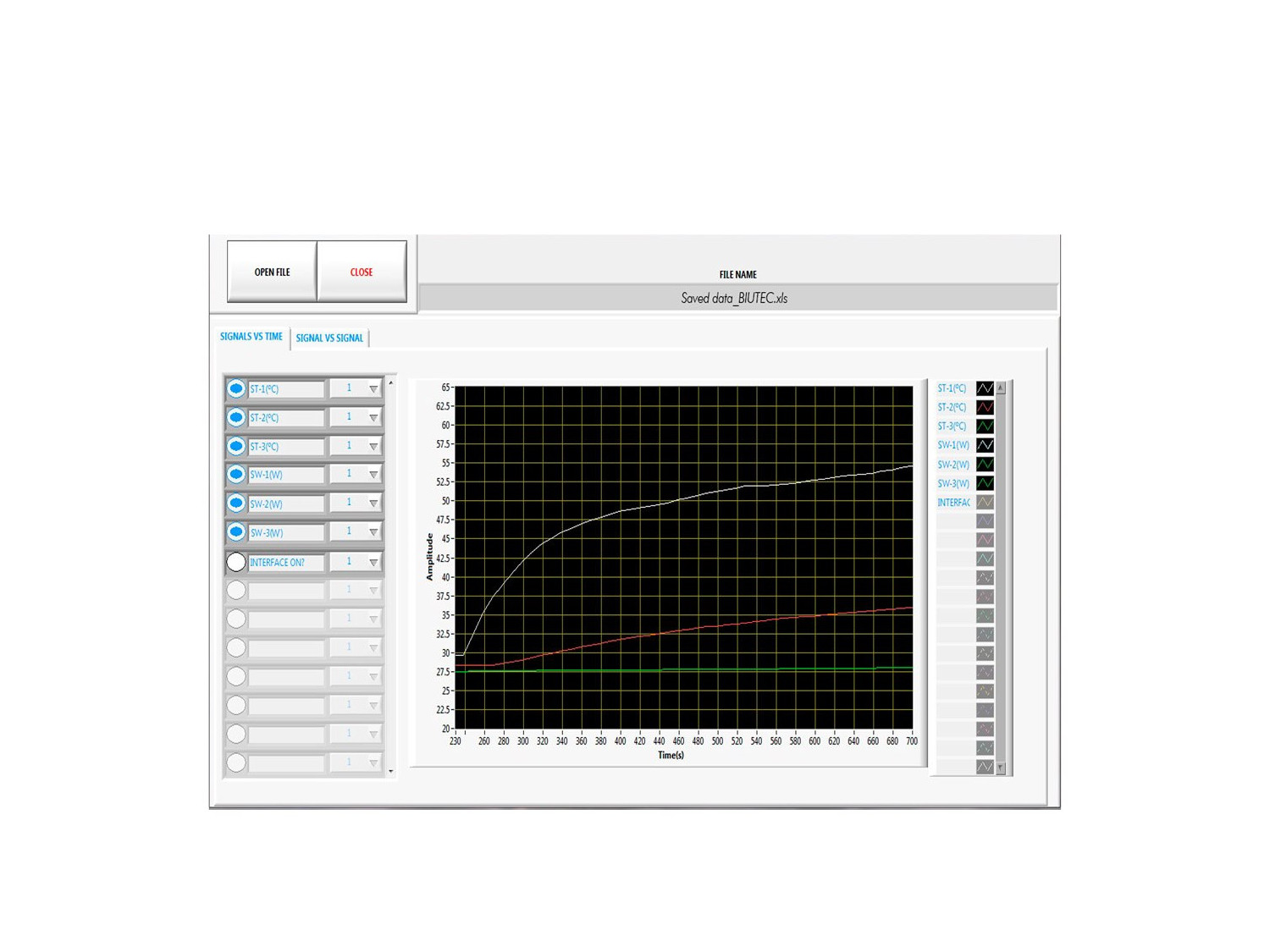

BIUTEC/SOF. BIUTEC Software. Main Screen

COMPUTER CONTROLLED BIOMEDICAL ULTRASOUND THERMAL EFFECTS TEACHING UNIT - BIUTEC
COMPUTER CONTROLLED BIOMEDICAL ULTRASOUND THERMAL EFFECTS TEACHING UNIT - BIUTEC
COMPUTER CONTROLLED BIOMEDICAL ULTRASOUND THERMAL EFFECTS TEACHING UNIT - BIUTEC
COMPUTER CONTROLLED BIOMEDICAL ULTRASOUND THERMAL EFFECTS TEACHING UNIT - BIUTEC
COMPUTER CONTROLLED BIOMEDICAL ULTRASOUND THERMAL EFFECTS TEACHING UNIT - BIUTEC
COMPUTER CONTROLLED BIOMEDICAL ULTRASOUND THERMAL EFFECTS TEACHING UNIT - BIUTEC

革新的なシステム

The Computer Controlled Biomedical Ultrasound Thermal Effects Teaching Unit, "BIUTEC", has been designed by EDIBON to study, in an experimental way, the ultrasound effects in biological tissues and acquire the necessary knowledge to design and validate therapeutic ultrasound units.

一般的な説明を表示

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア
ESN

EDIBON Scada-Netシステム

関連ニュース

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
続きを読む

概要

The Computer Controlled Biomedical Ultrasound Thermal Effects Teaching Unit, "BIUTEC", has been designed by EDIBON to study, in an experimental way, the ultrasound effects in biological tissues and acquire the necessary knowledge to design and validate therapeutic ultrasound units.

The unit is supplied with a set of practical exercises that will help the student to understand how to configure a therapeutic ultrasound device.

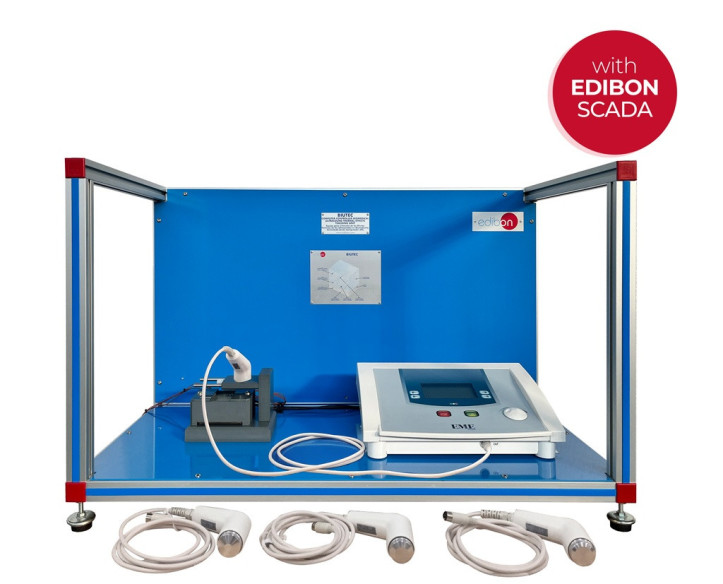

The Computer Controlled Biomedical Ultrasound Thermal Effects Teaching Unit,"BIUTEC", consists of a professional therapeutic ultrasound machine and a biologicaltissue simulator, composed of three different material layers with a thermocouple ineach one.

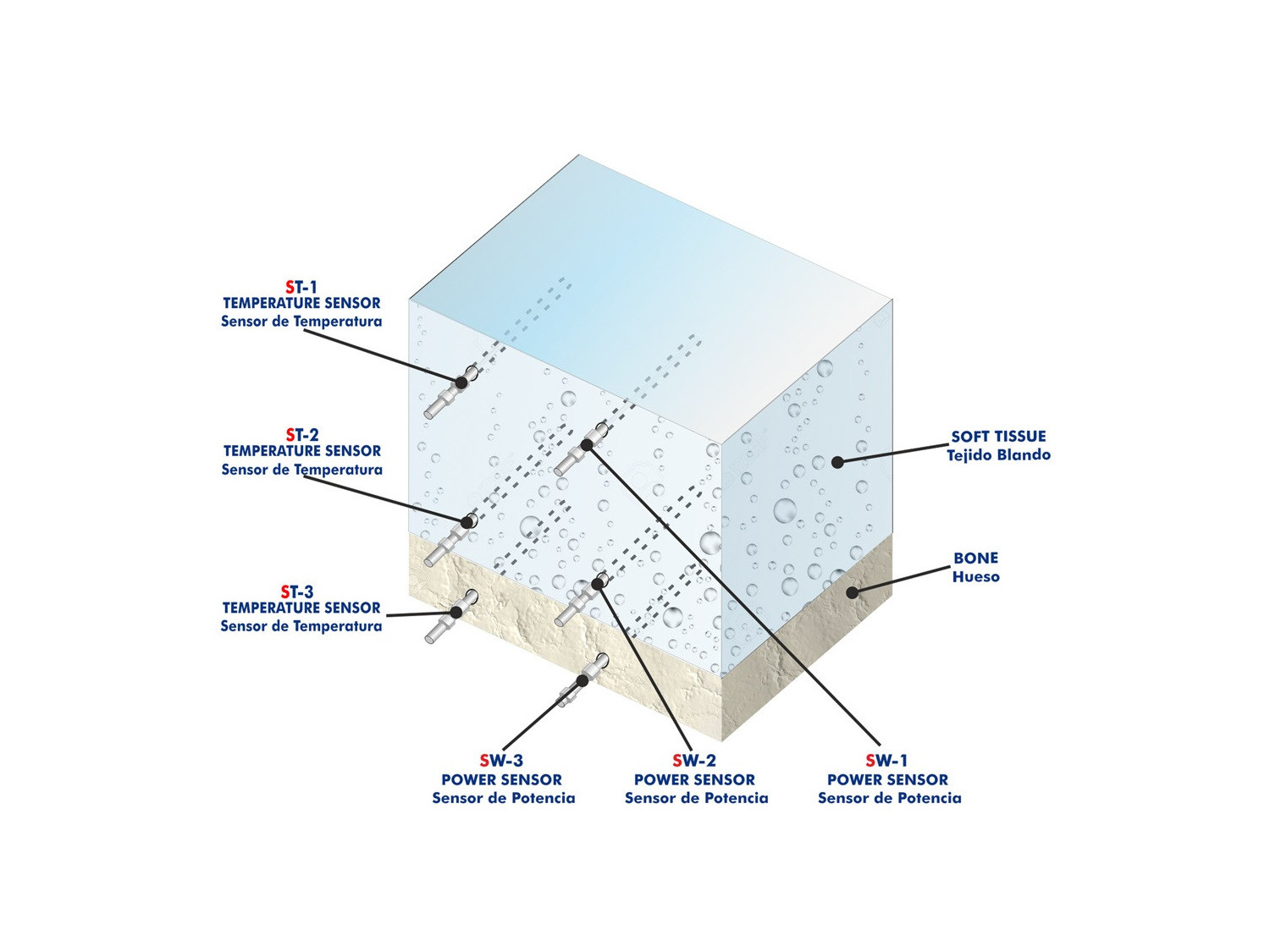

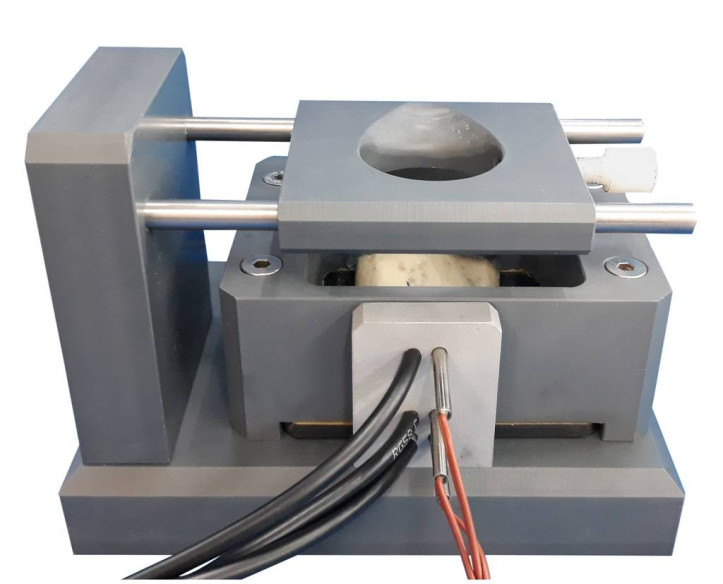

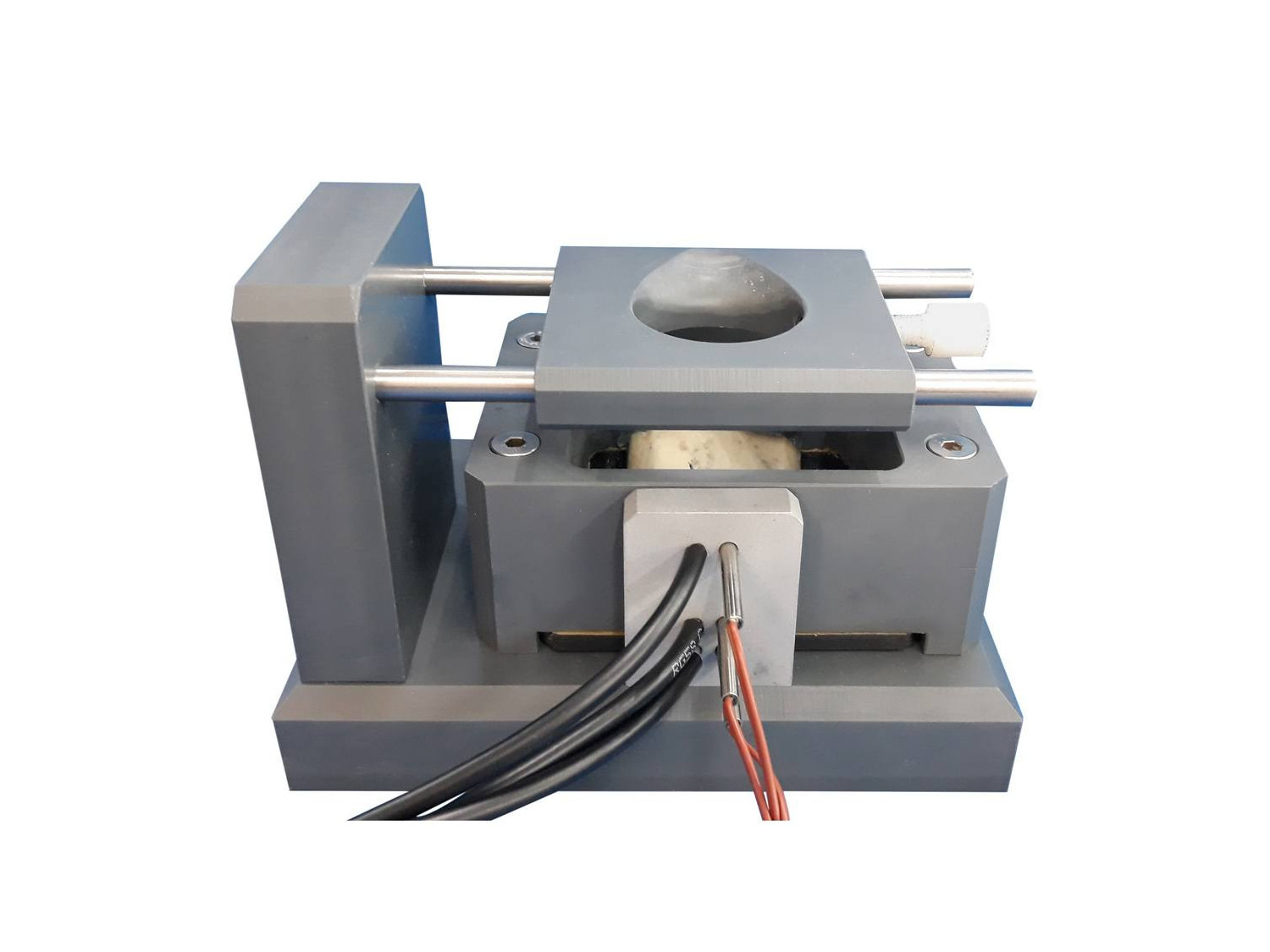

The simulator’s materials have similar acoustic properties to the human skin,soft tissue and bone with the aim of study the thermal effect produced by ultrasoundtherapy.

Besides, the unit is supplied with different applicators to study the effect of theemitting area.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a ControlInterface Box + a Data Acquisition Board + Data Acquisition and Data Management Software Packages, for controlling the process andall parameters involved in the process.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

  1. Study of the thermal effect according to the duty cycle.
  2. Study of the thermal effect according to the frequency.
  3. Study of the thermal effect according to the effective emission area (ERA).
  4. Study of the nonthermal effect according to the duty cycle.
  5. Study of the nonthermal effect according to the frequency.
  6. Study of the power dissipation according to the frequency.
  7. Sensor calibration.

より実用的な練習をして、ユニットを完成させる

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. The Computer Control System with SCADA allows a real industrial simulation.
  3. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  4. This unit can be used for doing applied research.
  5. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  6. Control of the BIUTEC unit process through the control interface box without the computer.
  7. Visualization of all the sensors values used in the BIUTEC unit process.
  8. Several other exercises can be done and designed by the user.
