PEFC コンピューター制御凝集試験装置

12.3.- 飲用水処理 13.3.- 廃水処理
COMPUTER CONTROLLED FLOCCULATION TEST UNIT - PEFC

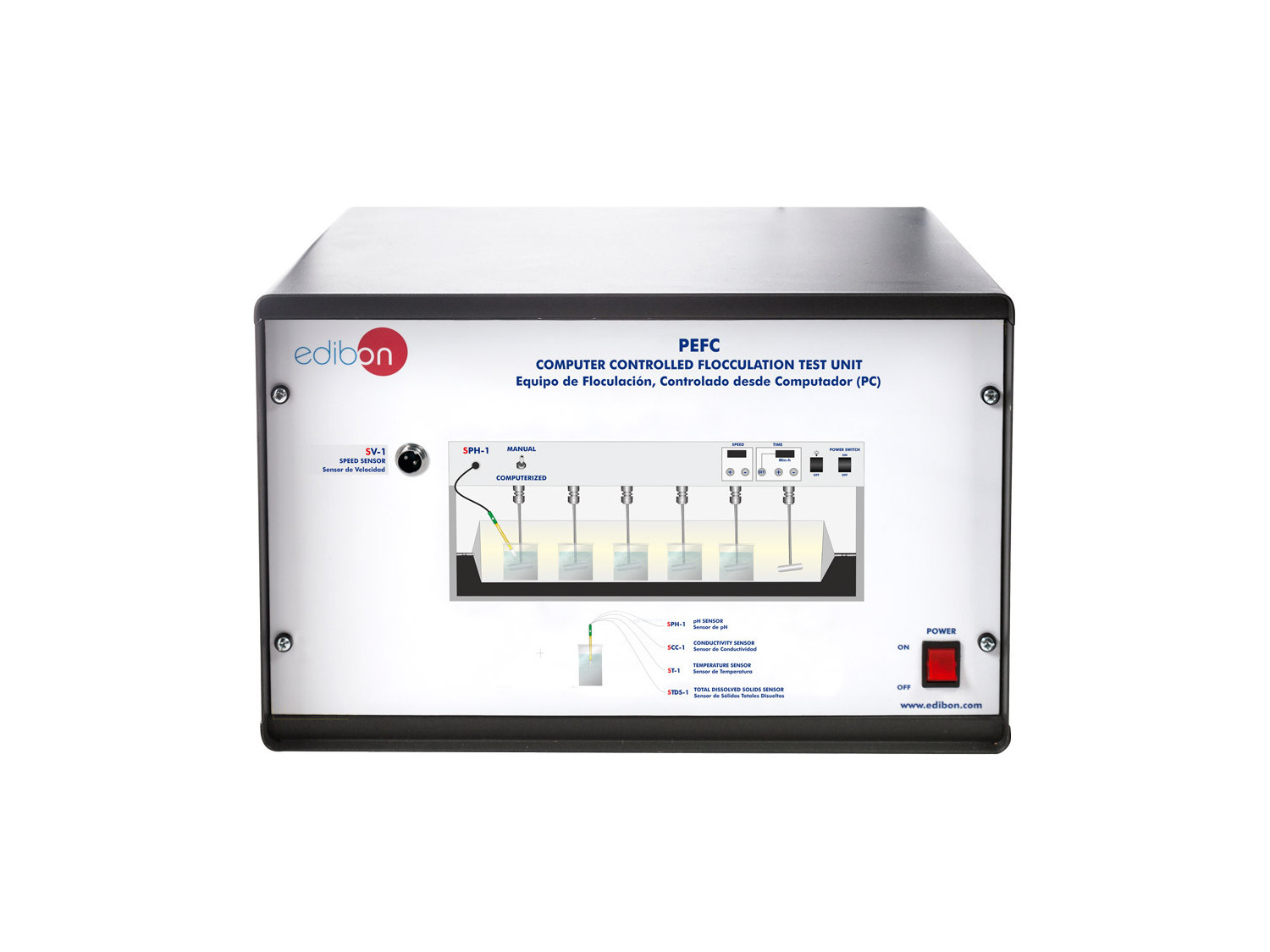

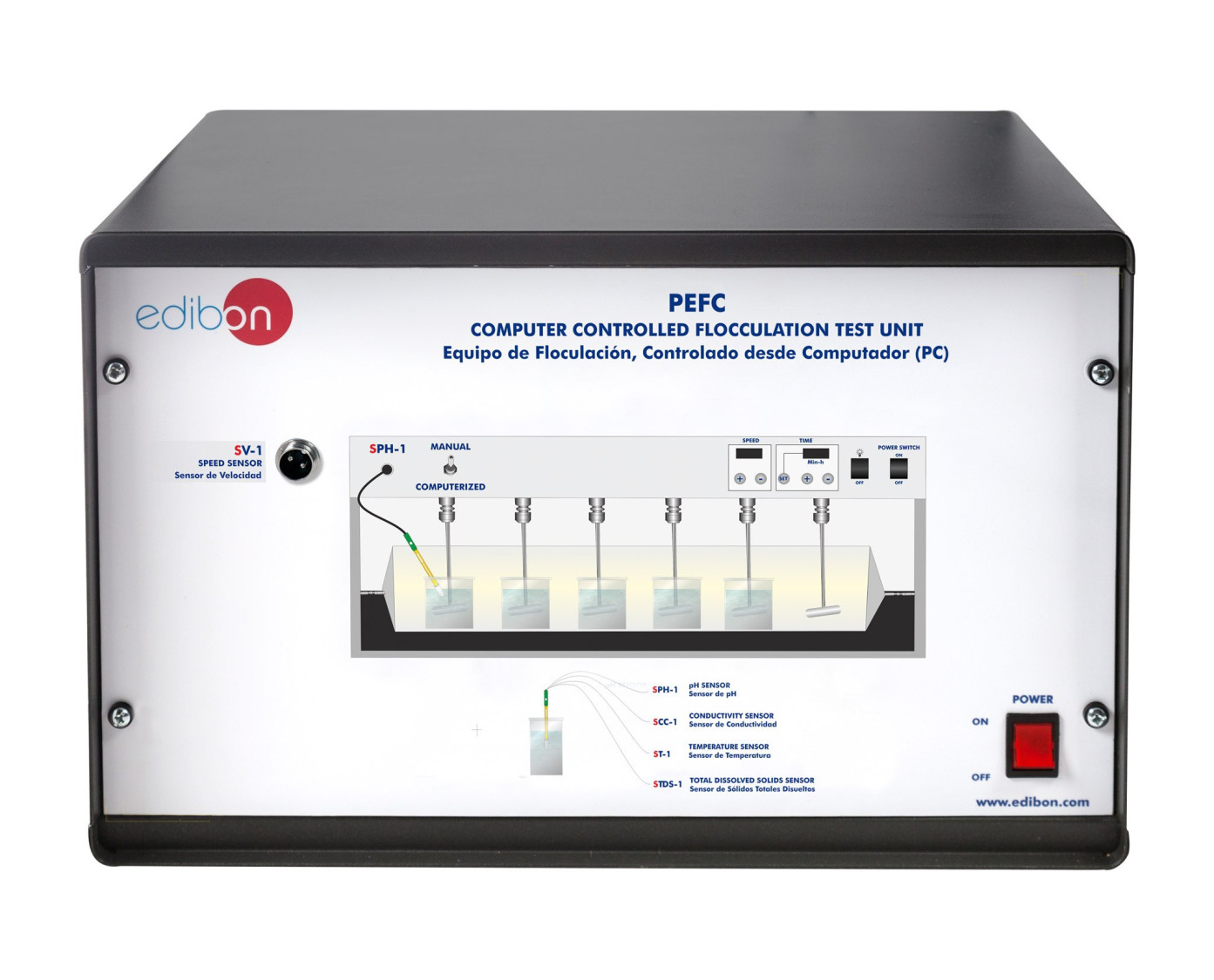

Unit: PEFC. Computer Controlled Flocculation Test Unit

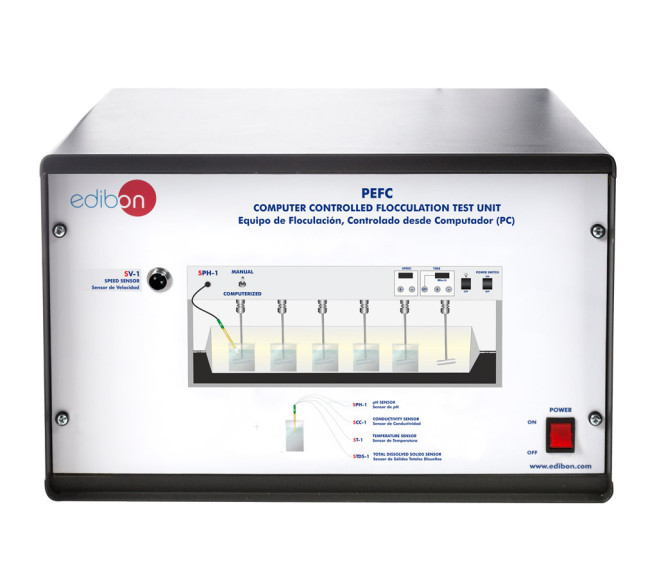

COMPUTER CONTROLLED FLOCCULATION TEST UNIT - PEFC

PEFC/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED FLOCCULATION TEST UNIT - PEFC

Process diagram and unit elements allocation

COMPUTER CONTROLLED FLOCCULATION TEST UNIT - PEFC

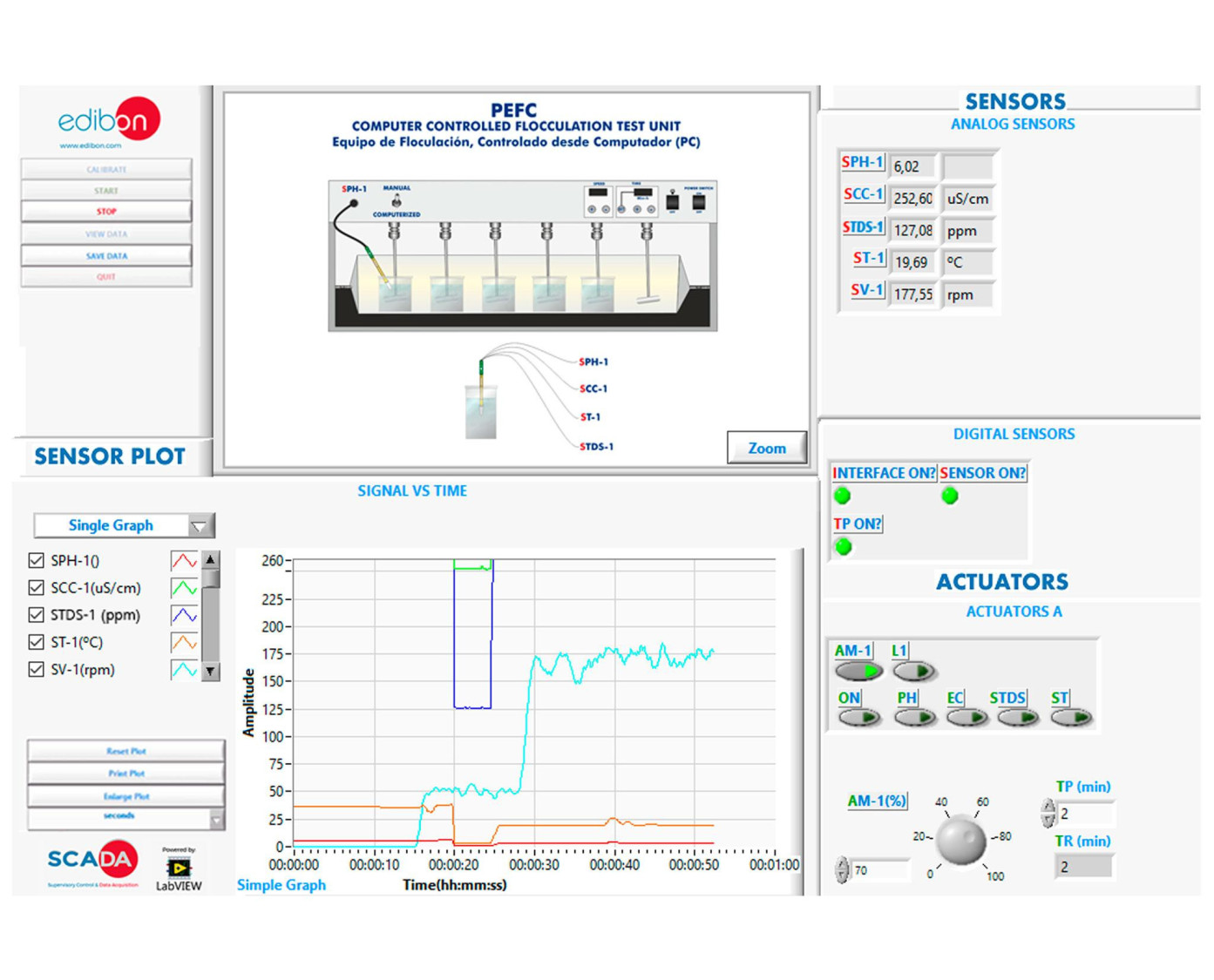

PEFC/SOF. Real time representation of any measured variable

COMPUTER CONTROLLED FLOCCULATION TEST UNIT - PEFC
COMPUTER CONTROLLED FLOCCULATION TEST UNIT - PEFC
COMPUTER CONTROLLED FLOCCULATION TEST UNIT - PEFC
COMPUTER CONTROLLED FLOCCULATION TEST UNIT - PEFC

革新的なシステム

The Computer Controlled Flocculation Test Unit, "PEFC", allows to study the coagulation and flocculation operations and to analyze the main parameters that determine the colloids removal operation.

一般的な説明を表示

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア
FSS

故障シミュレーションシステム
PLC

PLCによる産業プロセス制御
PLCHMI

HMIを使用したローカル/リモートIIoT制御と監視
ELK

EDIBONソフトウェア開発キット、NI LabVIEW™による動作
ECR

NI CompactRIOを使用したEDIBONの産業用モジュラーシステム
ESN

EDIBON Scada-Netシステム
ECL

EDIBON遠隔教育

研究室

13TV
 技術教育・職業教育環境実験室
13HE
 高等教育環境研究室

関連ニュース

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
続きを読む
ダイレクトエアキャプチャー：気候変動対策の鍵となる技術
ダイレクトエアキャプチャー：気候変動対策の鍵となる技術
ダイレクトエアキャプチャー (DAC) は、液体溶媒や固体吸収剤との化学反応を利用して空気中のCO₂を直接除去する革新的な技術です。コストの高さやエネルギー消費といった課題はあるものの、DACは大気中のCO₂濃度を減らし、気候変動を緩和する潜在的な解決策を提供します。DACの研究開発を継続することが、その実現可能性と効果を向上させるために重要です。
続きを読む
飲料水処理システムの理解と改善
飲料水処理システムの理解と改善
下水処理施設 飲料水処理プラントが安全な飲料水の供給に焦点を当てる一方で、下水処理施設は使用済みの水を再び環境に放出する前に処理します。 これらの施設は、水資源と公衆衛生の保護に重要な役割を果たします。 高度な処理技術は、汚染物質を除去し、処理された水が環境基準を満たすことを保証します。
続きを読む
NEW Food & Water technologies leaflets
NEW Food & Water technologies leaflets
Food Technology is a branch of Food Science based on multidisciplinary knowledge of nutrition, chemical analysis, physics, biochemistry and engineering. Water treatment technologies obtain drinking water, so necessary for our life. Both disciplines have become in recent years an indispensable...
続きを読む

概要

The Computer Controlled Flocculation Test Unit, "PEFC", shows the removal of dissolved substances by coagulation and flocculation.

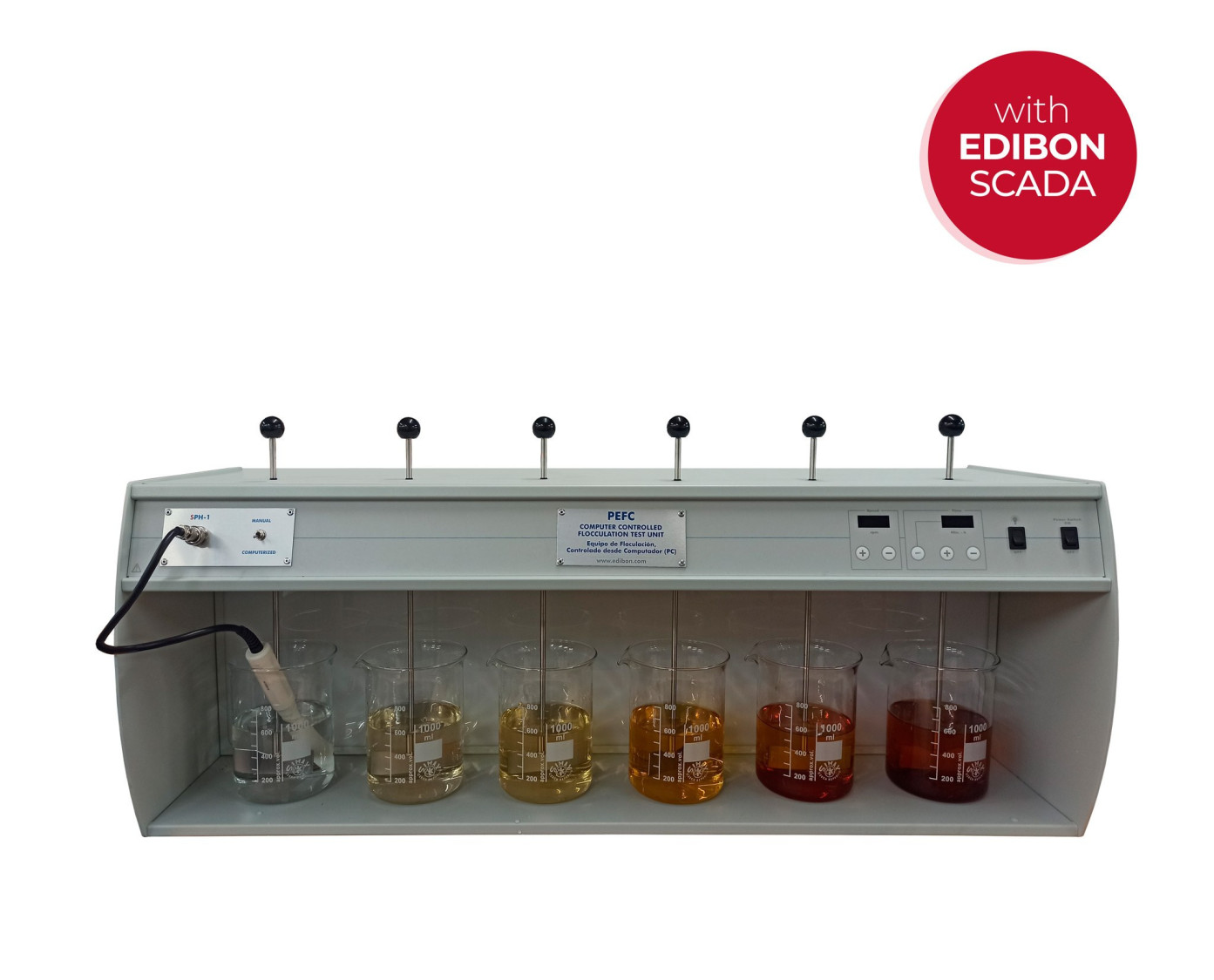

It has six beakers where water to be tested is poured. Each one has one adjustable speed paddle stirrer.

The unit is illuminated from the base or from the rear side to allow a clear visualization of the supernatant particles.

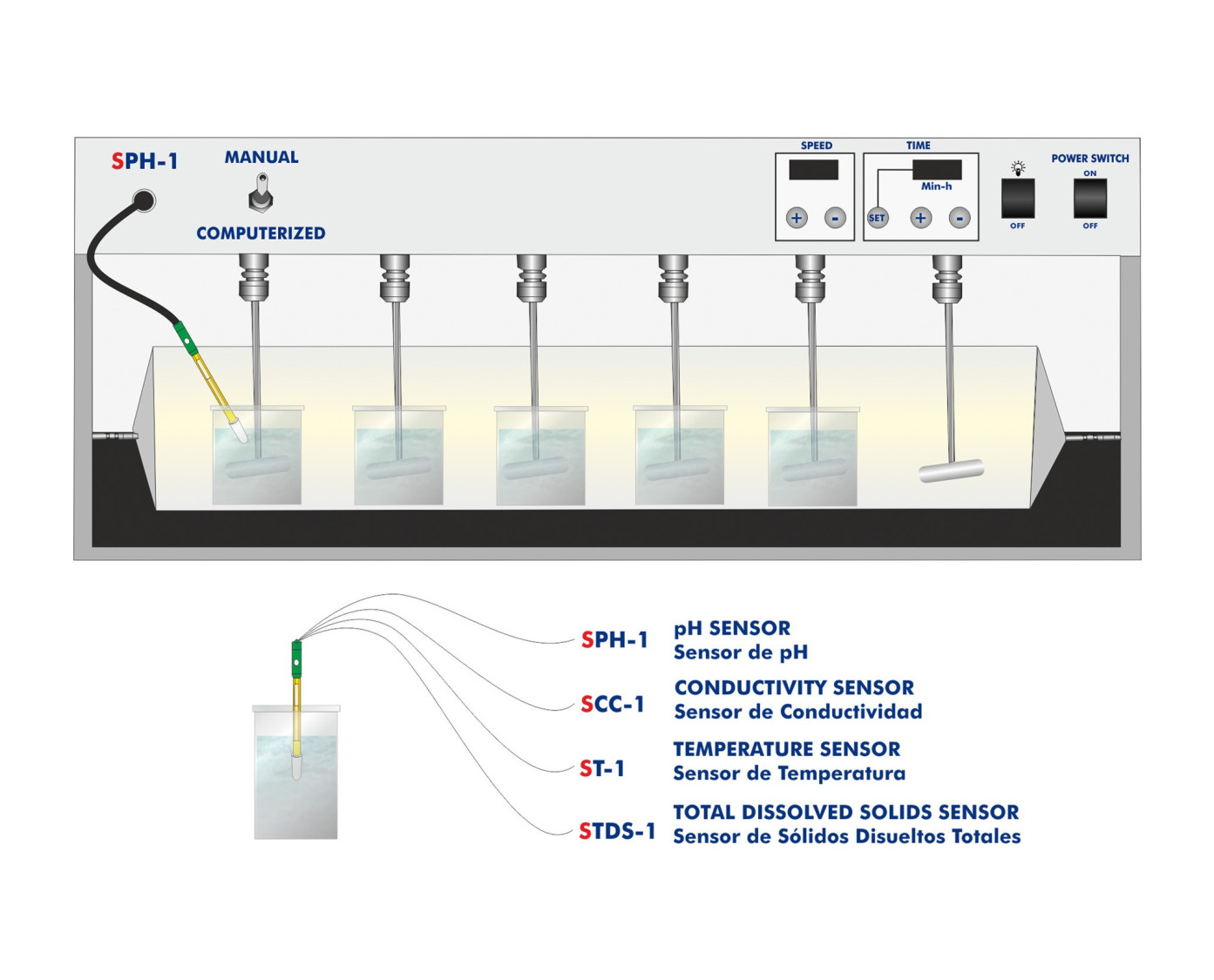

The instrumentation of the unit allows to determine temperature, pH, conductivity and total dissolved solids to set, thus, the optimum conditions for flocculation.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

  1. Determination of optimum coagulant dosage.
  2. Study of coagula formation regarding to the mixing time and the agitation speed.
  3. Determination of optimum Ph.
  4. Coagulation test in conjunction with activated carbon.
  5. Sensors calibration.

より実用的な練習をして、ユニットを完成させる

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivate parameters, etc, in real time.
  3. The Computer Control System with SCADA allows a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the PEFC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the PEFC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.

利用可能な類似の機器

FLOCCULATION TEST UNIT - PEF
  • PEF
Available
13.3.- 廃水処理
PEF
凝集試験装置
The Flocculation Test Unit, "PEF", shows the removal of dissolved substances by coagulation and flocculation.It has six beakers where water to be tested is poured. Each one has one adjustable speed paddle stirrer.The unit is illuminated from the...
ユニットを見る

品質

アフターサービス

リクエスト情報
