COMPUTER CONTROLLED GAS WASHING PROCESSING PLANT - PLGC

革新的なシステム

The Computer Controlled Gas Washing Processing Plant, "PLGC", designed by EDIBON, allows to evaluate the operation of a gas washing plant, analyzing its efficiency.

一般的な説明を表示

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア
FSS

故障シミュレーションシステム
PLC

PLCによる産業プロセス制御
PLCHMI

HMIを使用したローカル/リモートIIoT制御と監視
ELK

EDIBONソフトウェア開発キット、NI LabVIEW™による動作
ECR

NI CompactRIOを使用したEDIBONの産業用モジュラーシステム
ESN

EDIBON Scada-Netシステム
ECL

EDIBON遠隔教育

研究室

11TV
 化学工学研究室
11HE
 高等教育化学工学研究室
11PTC
 石油研修センター研究室
13TV
 技術教育・職業教育環境実験室
13HE
 高等教育環境研究室

関連ニュース

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
続きを読む
Second-generation biofuels: the sustainable future at EDIBON
Second-generation biofuels: the sustainable future at EDIBON
In a world where energy demand continues to rise and non-renewable resources are rapidly depleting, the need for sustainable, environmentally friendly solutions has never been more urgent. The circular economy and the use of organic biomass to produce biofuels are emerging as key answers to...
続きを読む
ダイレクトエアキャプチャー：気候変動対策の鍵となる技術
ダイレクトエアキャプチャー：気候変動対策の鍵となる技術
ダイレクトエアキャプチャー (DAC) は、液体溶媒や固体吸収剤との化学反応を利用して空気中のCO₂を直接除去する革新的な技術です。コストの高さやエネルギー消費といった課題はあるものの、DACは大気中のCO₂濃度を減らし、気候変動を緩和する潜在的な解決策を提供します。DACの研究開発を継続することが、その実現可能性と効果を向上させるために重要です。
続きを読む
飲料水処理システムの理解と改善
飲料水処理システムの理解と改善
下水処理施設 飲料水処理プラントが安全な飲料水の供給に焦点を当てる一方で、下水処理施設は使用済みの水を再び環境に放出する前に処理します。 これらの施設は、水資源と公衆衛生の保護に重要な役割を果たします。 高度な処理技術は、汚染物質を除去し、処理された水が環境基準を満たすことを保証します。
続きを読む

概要

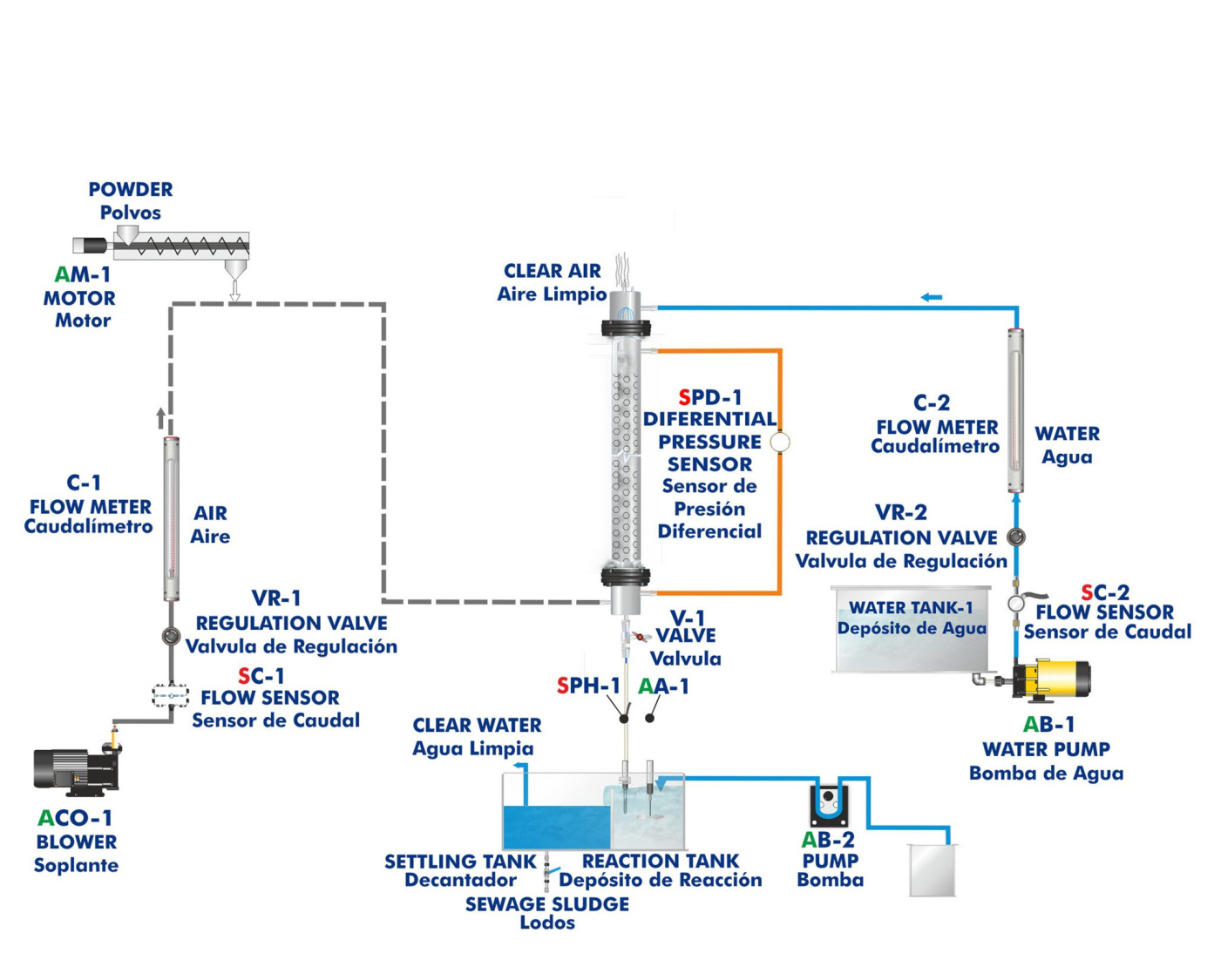

The Computer Controlled Gas Washing Processing Plant, "PLGC", has a water feed tank, from which and by means of a water pump, the water is pumped to the upper part of a column. The solids are added by means of a solid dosing system to the air current, which is introduced in the column by its lower part. The water pumped to the upper part of the column is pulverized, by means of showers, to drag the added solids in the air current.

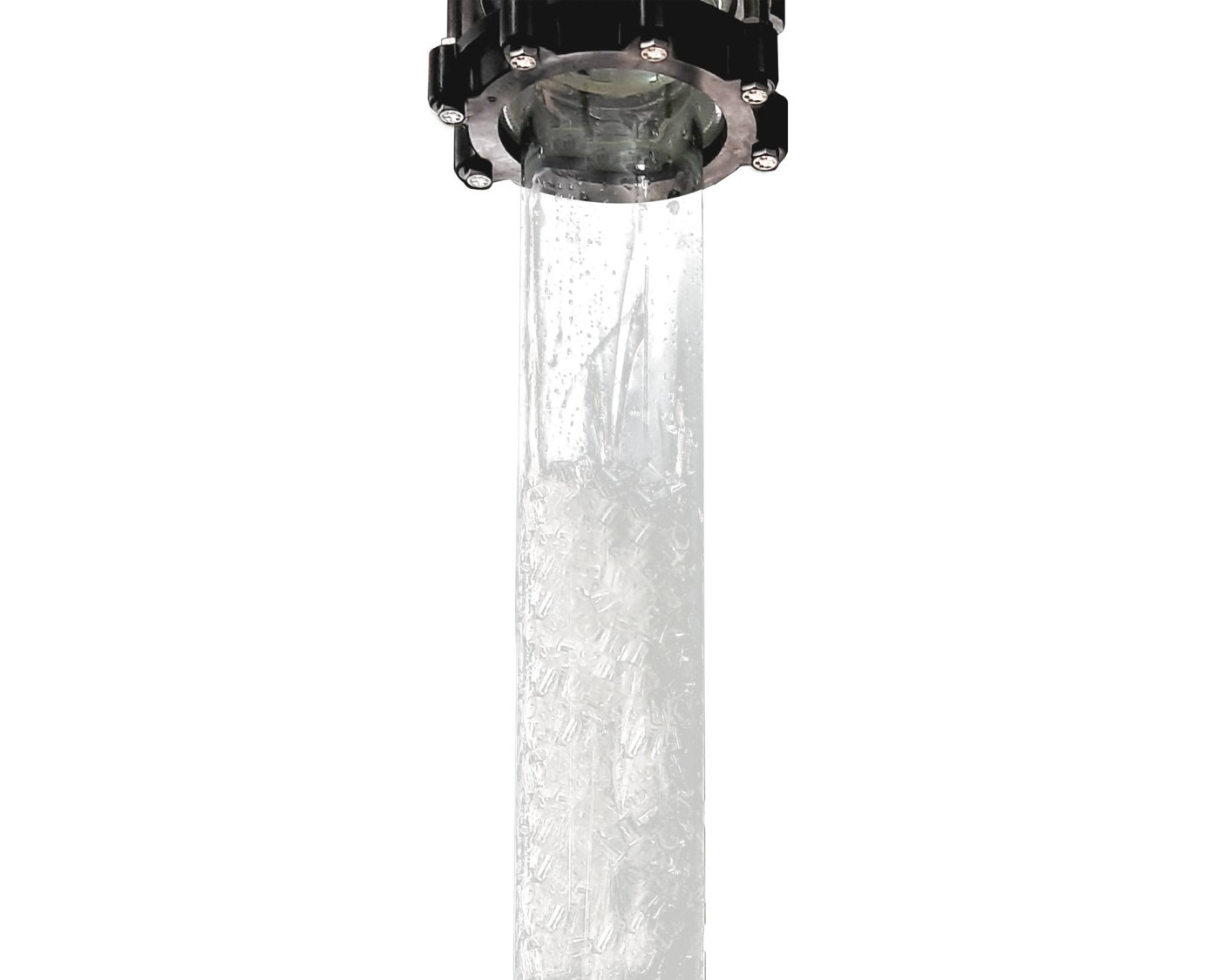

This column has Raschig rings, which increase the surface of interchange between the water and the polluted air current.

The unit has two flow sensor and flowmeters: one to measure the water flow and the other one to measure the air current.

The water current that flows through the bottom of the column goes to a reaction tank. This tank has an stirring system and a pH sensor.

The current is mixed with the flocculant. It will produce the later sedimentation of particles and their decantation. Thus, we can separate a sludge current and a clean current.

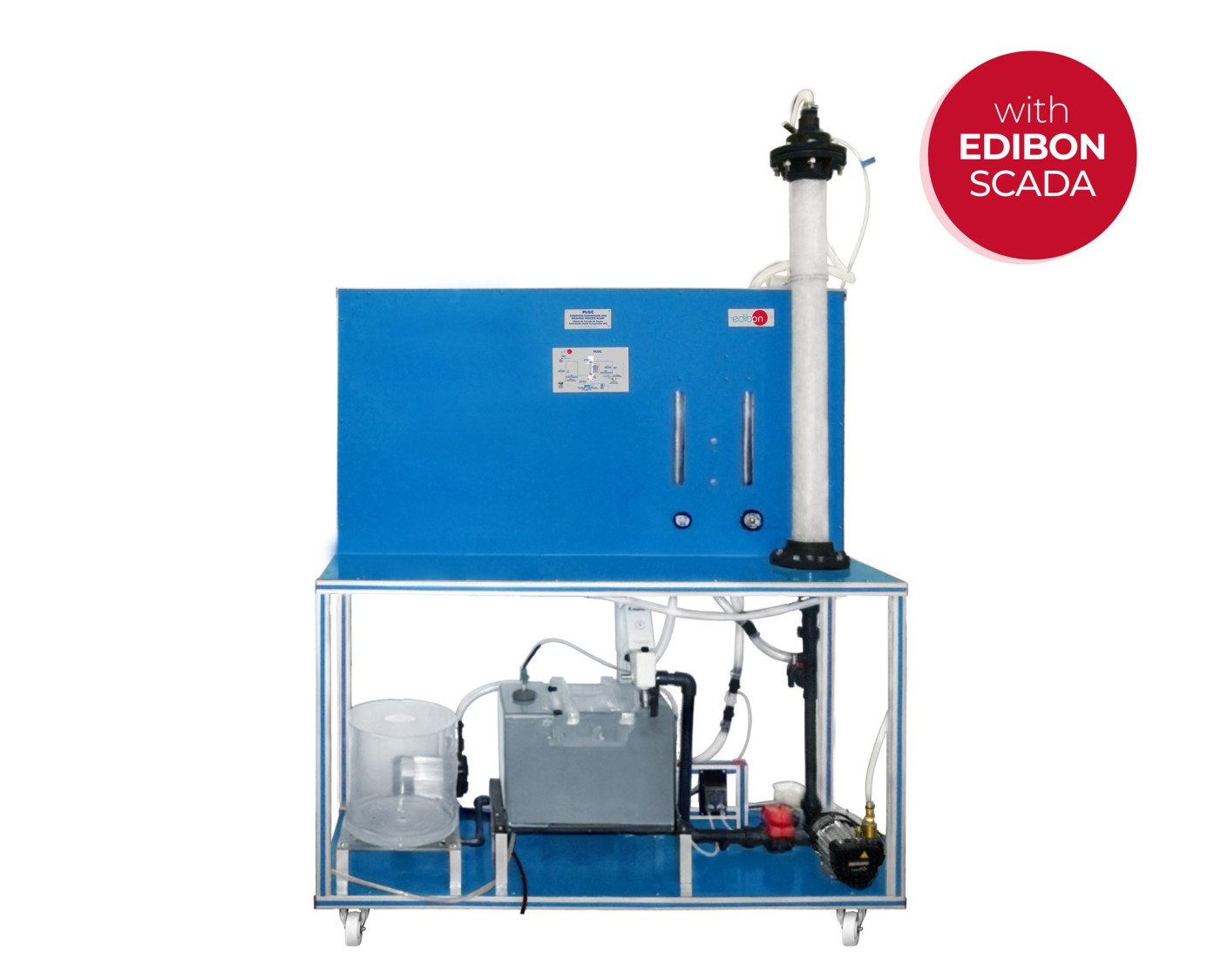

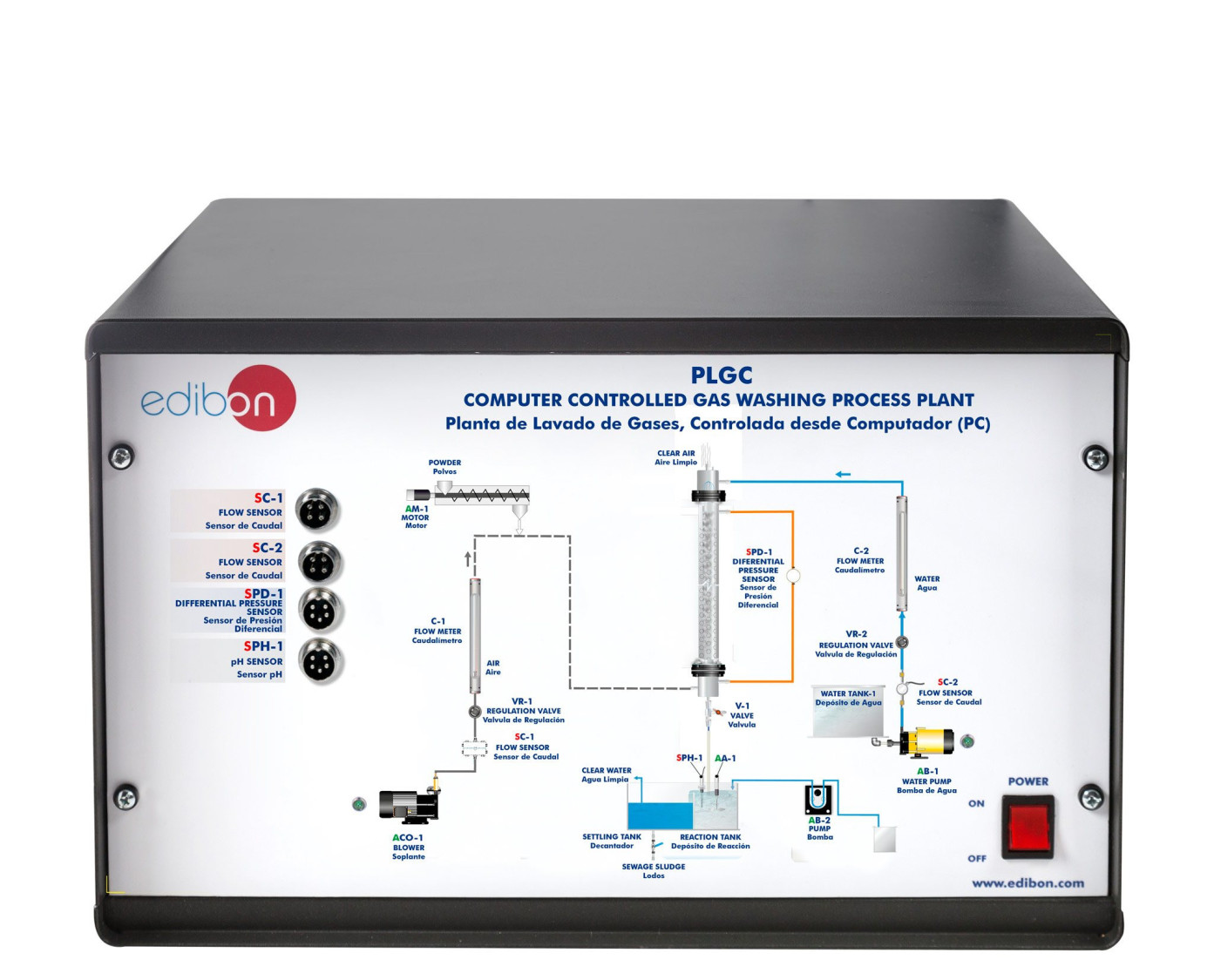

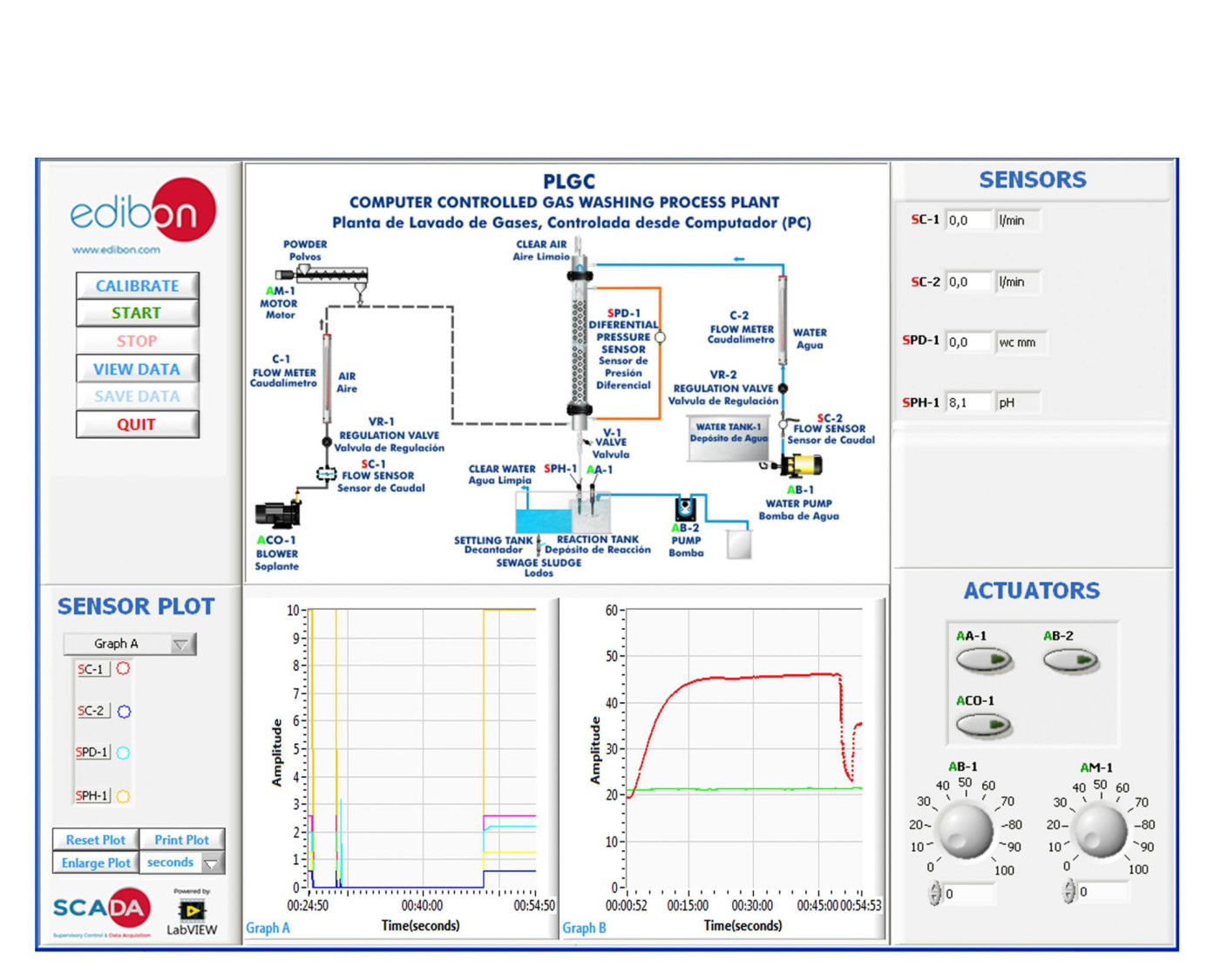

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.
