COMPUTER CONTROLLED HEAT EXCHANGERS BASIC UNIT - TICC/SS

革新的なシステム

The Computer Controlled Basic Heat Exchangers Unit (TICC/SS) has been designed by Edibon to study and compare different types of small-scale heat exchangers working with parallel or counterflow arrangements.

一般的な説明を表示

関連ニュース

Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and thermotechnology are fundamental fields of engineering that play a critical role across various industries, from energy generation to climate control. Understanding these foundational concepts is essential not only for engineers but also for fostering technological innovations...
続きを読む
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
続きを読む
We are excited to celebrate the publication of the article by Prof. Dr. Nina Penkova titled "Performance of Diffusion Absorption Refrigerators with Variable Input Power" The study explores how absorption refrigerators, which utilize waste or solar energy for heating and cooling, can operate...
続きを読む

概要

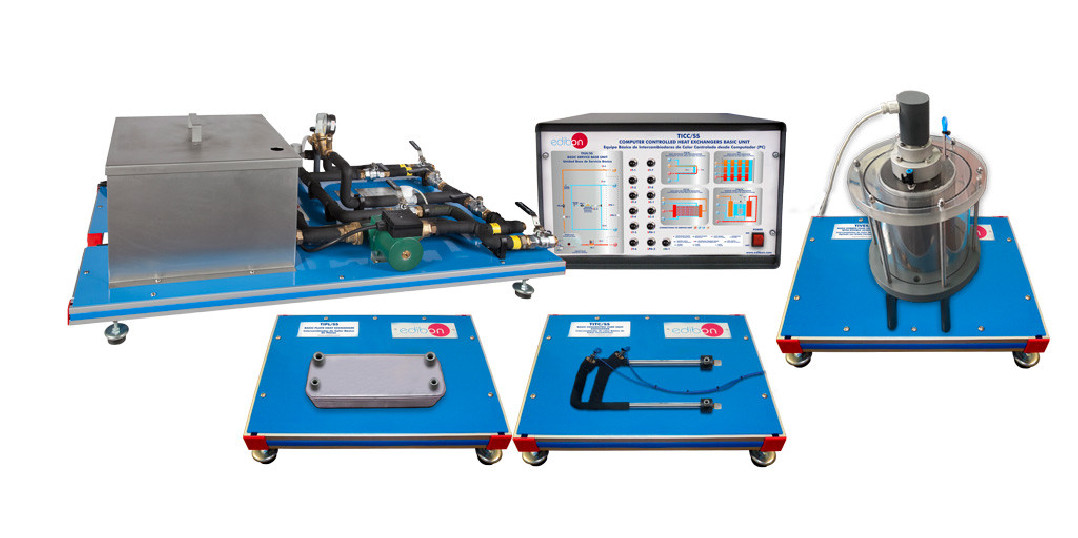

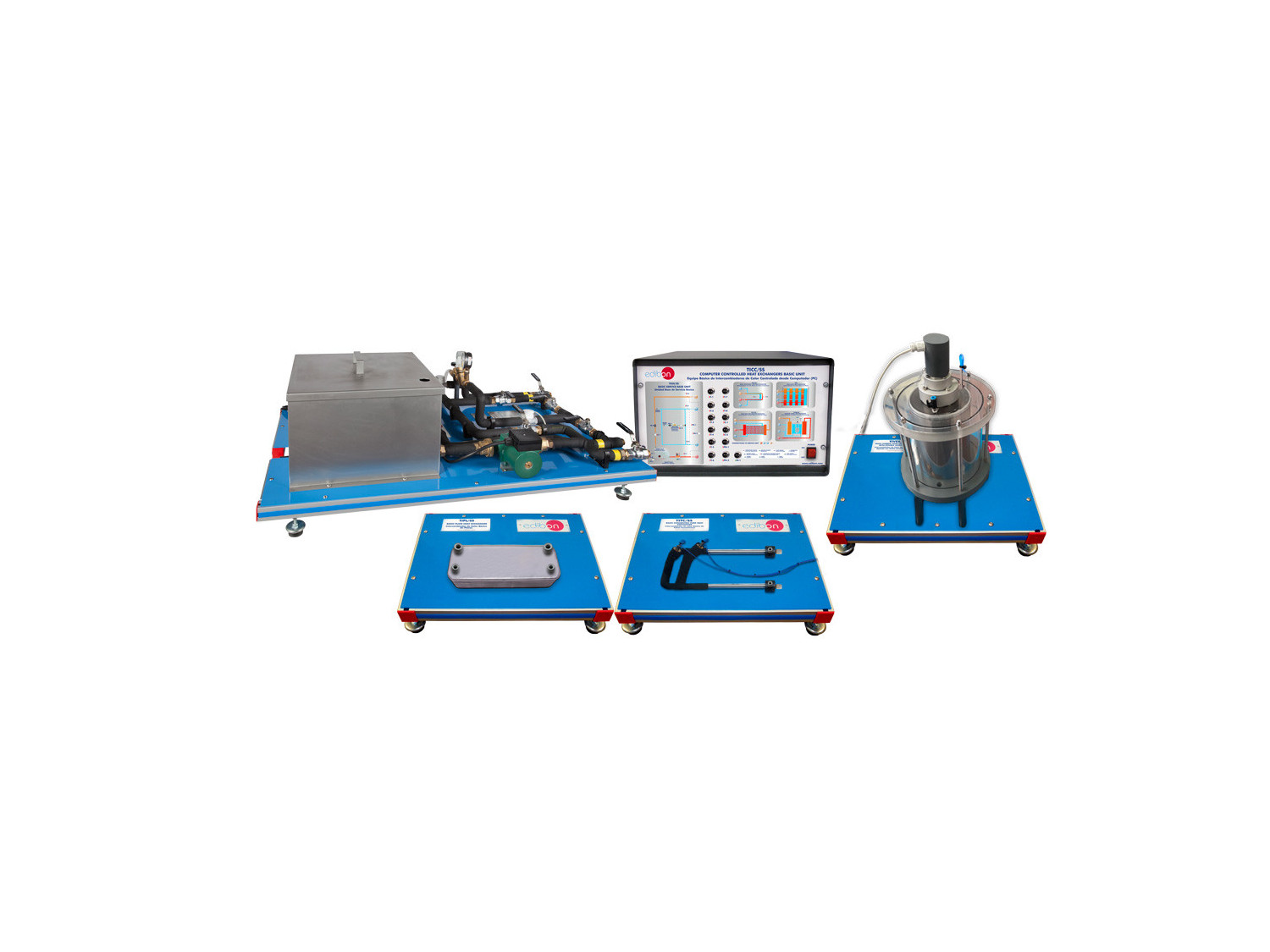

The Computer Controlled Basic Heat Exchangers Unit (TICC/SS) has been designed by Edibon to study and compare different types of small-scale heat exchangers working with parallel or counterflow arrangements.

The complete unit consists of two main elements: the service base unit and a heat exchanger.

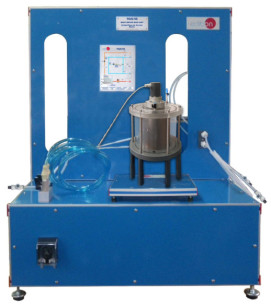

The Basic Service Base Unit (TIUS/SS) is common for the optional "/SS" type heat exchangers. Its functions are:

  • Heating water in a computer controlled thermostatic bath.
  • Pumping the hot water.
  • Regulation and measurement of the cold water and hot water flows.
  • Measurement of the inlet and outlet temperatures of the cold water and the hot water.
  • Measurement of the pressure drop in the exchanger.

To supply cold water there are two options: tap water or our recommended element, the Refrigeration Water Recirculation Unit "TERA".

付属品

演習と指導の慣行

マニュアルに含まれるガイド付き実習

Practices to be done with the Basic Concentric Tube Heat Exchanger (TITC/SS):

  1. Global energy balance in the heat exchanger and the study of losses.
  2. Exchanger effectiveness determination. NTU Method.
  3. Study of the heat transfer under counter-current and co-current flow conditions.
  4. Flow influence on the heat transfer. Reynolds number calculation.
  5. Study of the pressure drop in the exchanger.
  6. Control system: Temperature sensors calibration.
  7. Control system: Flow sensors calibration.

Practices to be done with the Basic Plate Heat Exchanger (TIPL/SS):

  1. Global energy balance in the heat exchanger and the study of losses.
  2. Exchanger effectiveness determination. NTU Method.
  3. Study of the heat transfer under counter-current and co-current flow conditions.
  4. Flow influence on the heat transfer. Reynolds number calculation.
  5. Study of the pressure drop in the exchanger.
  6. Control system: Temperature sensors calibration.
  7. Control system: Flow sensors calibration.

Practices to be done with the Basic Shell and Tube Heat Exchanger (TICT/SS):

  1. Global energy balance in the heat exchanger and the study of losses.
  2. Exchanger effectiveness determination. NTU Method.
  3. Study of the heat transfer under counter-current and co-current flow conditions.
  4. Flow influence on the heat transfer. Reynolds number calculation.
  5. Study of the pressure drop in the exchanger.
  6. Control system: Temperature sensors calibration.
  7. Control system: Flow sensors calibration.

Practices to be done with the Basic Stirred-Tank Heat Exchanger with Double Jacket and Coil (TIVES/SS):

  1. Global balance of energy in the tank heat exchanger with double jacket and losses study.
  2. Global balance of energy in the the tank heat exchanger with coil and losses study.
  3. Determination of the exchanger effectiveness. NTU Method.
  4. Influence of the flow on the heat transfer. Calculation of the number of Reynolds.
  5. Influence of the vessel stirring on the heat transfer when operating in batches.
  6. Influence of the vessel's water volume on the heat transfer when operating in batches.
  7. Study of the pressure drop in the exchanger.
  8. Control system: Temperature sensors calibration.
  9. Control system: Flow sensors calibration.
もっと見る

より実用的な練習をして、ユニットを完成させる

Additional practical possibilities

  1. Study of the hysteresis of the flow sensor.

Other possibilities to be done with this Unit:

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the TICC/SS unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the TICC/SS unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
