PCCAC コンピューター制御水質管理実験装置

12.3.- 飲用水処理 13.3.- 廃水処理
COMPUTER CONTROLLED WATER QUALITY CONTROL UNIT - PCCAC

革新的なシステム

Water is impelled by a pump from a supply tank towards a first transparent tank equipped with a stirrer and a conductivity sensor.

一般的な説明を表示

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア
FSS

故障シミュレーションシステム
PLC

PLCによる産業プロセス制御
ELK

EDIBONソフトウェア開発キット、NI LabVIEW™による動作
ECR

NI CompactRIOを使用したEDIBONの産業用モジュラーシステム
ESN

EDIBON Scada-Netシステム
ECL

EDIBON遠隔教育

関連ニュース

飲料水処理システムの理解と改善
飲料水処理システムの理解と改善
下水処理施設 飲料水処理プラントが安全な飲料水の供給に焦点を当てる一方で、下水処理施設は使用済みの水を再び環境に放出する前に処理します。 これらの施設は、水資源と公衆衛生の保護に重要な役割を果たします。 高度な処理技術は、汚染物質を除去し、処理された水が環境基準を満たすことを保証します。
続きを読む
NEW Food & Water technologies leaflets
NEW Food & Water technologies leaflets
Food Technology is a branch of Food Science based on multidisciplinary knowledge of nutrition, chemical analysis, physics, biochemistry and engineering. Water treatment technologies obtain drinking water, so necessary for our life. Both disciplines have become in recent years an indispensable...
続きを読む
NEW Environmental leaflets
NEW Environmental leaflets
Due to the growing awareness of environmental problems, not only individuals but also governments and companies have started to develop activities that tend to preserve or limit the damage to the environment. Thus, some disciplines of the environmental science, such as hydrology, hydrogeology,...
続きを読む

概要

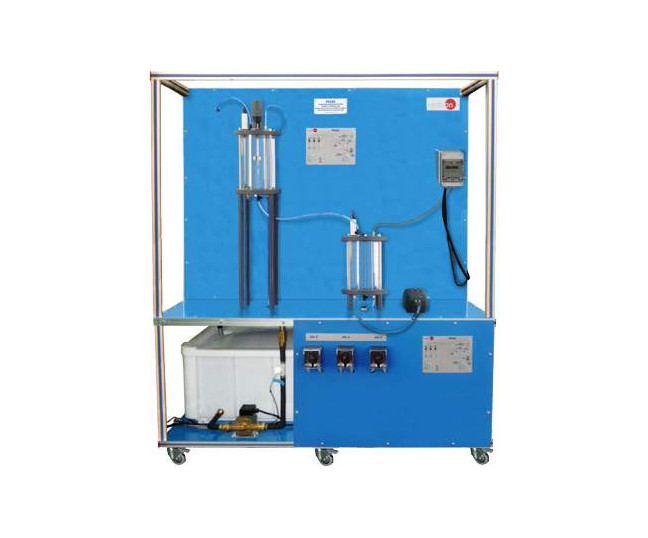

Water is impelled by a pump from a supply tank towards a first transparent tank equipped with a stirrer and a conductivity sensor.

Conductivity is regulated in this tank by the addition of diluted caustic soda impelled by a computer controlled peristaltic pump.

Afterwards, water flows by gravity towards a second transparent tank equipped with a pH sensor and a dissolved oxygen sensor. Due to the caustic soda added to the first tank, the pH increases considerably. Diluted sulfuric acid is added with a computer controlled peristaltic pump to neutralize water to a suitable pH. A computer controlled compressor will inject compressed air in this second tank to regulate dissolved oxygen.

Finally, water flows towards a collection tank, where the redox potential and the pH are measured through sensors. Other computer controlled peristaltic pump allows the addition of an iodine solution to regulate the redox potential.

P, PD, PI and PID controls for the different stages.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

  1. Study and influence of the main physical-chemical parameters on the water quality.
  2. Analysis of the conductivity, pH, oxygen concentration and redox potential of water.
  3. Influence of caustic soda on the electric conductivity of water.
  4. Influence of caustic soda on the water pH.
  5. Influence of sulfuric acid on the water pH.
  6. Influence of air injection on the water oxygen concentration.
  7. Influence of iodine on the water redox potential.
  8. Analysis and study of different types of control P, PD, PI, PID.
  9. Sensors calibration

より実用的な練習をして、ユニットを完成させる

  1. Sensors calibration.

品質

アフターサービス

リクエスト情報
