WIND POWER PLANTS WITH DOUBLE FEED INDUCTION GENERATOR APPLICATION - AEL-WPP

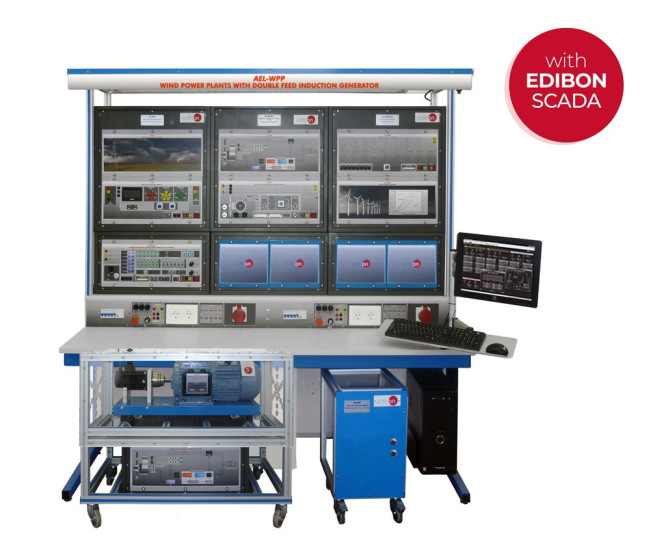

Unit: AEL-WPP. Wind Power Plants with Double Feed Induction Generator Application

COMPUTER CONTROLLED WIND POWER PLANTS WITH DOUBLE FEED INDUCTION GENERATOR APPLICATION - AEL-WPP

AEL-WPP/SOF. AEL-WPP Software. Main Screen

WIND POWER PLANTS WITH DOUBLE FEED INDUCTION GENERATOR APPLICATION - AEL-WPP
COMPUTER CONTROLLED WIND POWER PLANTS WITH DOUBLE FEED INDUCTION GENERATOR APPLICATION - AEL-WPP

革新的なシステム

The Wind Power Plants with Double Feed Induction Generator Application, "AEL-WPP", is used to investigate the design and operation of modern wind power stations.

一般的な説明を表示

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア
ESN

EDIBON Scada-Netシステム

関連ニュース

Recycling and energy storage systems
Recycling and energy storage systems
The shift towards electric vehicles (EVs) has gained considerable momentum worldwide, promising a reduction in greenhouse gas emissions and a path to a more sustainable future. However, as the demand for EVs accelerates, so too does the need for large quantities of essential minerals, such as...
続きを読む
What are DFIGs?
What are DFIGs?
Thanks to the bi-directional inverters (back to back inverters) and the use of double-fed generators, today it is possible to provide greater robustness and reliability to the national electricity grid in the presence of faults. This power in wind generators and parks is known as Fault Ride...
続きを読む
SMART GRID. What is about?
SMART GRID. What is about?
With the new smart bidirectional meters, all protection and control devices and the wide use of Internet, the grid has become an intelligent (smart) grid.
続きを読む
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
続きを読む

概要

The Wind Power Plants with Double Feed Induction Generator Application, "AEL-WPP", is used to investigate the design and operation of modern wind power stations. The "AEL-WPP" consists of a prime motor that moves a double-feed induction generator (as a generator for the wind power plant).

This power station includes a SCADA Control Systems which allows the following:

  • In one hand the SCADA allows the user to configure the desired wind curve for the experiment. Once the wind curve is configured and the user starts the experiment, the software controls automatically the "AEL-SERIN/CA-1K" motor to generate the same wind curve configured by the user.
  • In the other hand the SCADA allows to visualize the most important signals of the systems (rotor current, stator current, line voltage, dc bus voltage of the back to back inverter…) and allows to visualize the most important measurements of the system (value of the rotor active power and reactive power, stator active power and reactive power, total active and reactive power, speed of the generator shaft…).
  • The software also allows the user to save the experiment data, to analyze the results after the test, through a data visualizer included with the software. The data format of the saved files are compatible with Microsoft excel.
  • Finally, the SCADA software allows simulations of voltage dips in the electrical network supplying the doubly fed induction generator. It is possible to simulate dips of 20%, 40% and 60% as well as to specify the voltage dip injection time. Thanks to this simulation it is possible to understand, in a safe and efficient way, the different phenomena to which these types of wind turbines are subjected. The great advantage of being able to simulate voltage dips is that in no case will the machine be subjected to any damage.

This unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

  1. Identifying elements and devices.
  2. Supply and modules signals wiring.
  3. Commissioning of application.
  4. Analyzing the system states: starting and loading the DC bus.
  5. Identifying modulation inverter start back to back.
  6. Stop sequence double feed induction generator.
  7. Study of the double-feed asynchronous machine with subsynchronous speed.
  8. Study of the double-feed asynchronous machine with supersynchronous speed.
  9. Study of the system behavior during the simulation of voltage dips in the network ("fault ride-through").

より実用的な練習をして、ユニットを完成させる

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc. in real time.
  3. The Computer Control System with SCADA allows a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Several other exercises can be done and designed by the user.
