TIFCB クロスフロー熱交換器

9.7.- 熱交換器

革新的なシステム

The Cross Flow Heat Exchanger (TIFCB) basically consists of a rectangular wind tunnel made of stainless steel, resistant to corrosion.

一般的な説明を表示

カタログ

コンテストの仕様

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア

概要

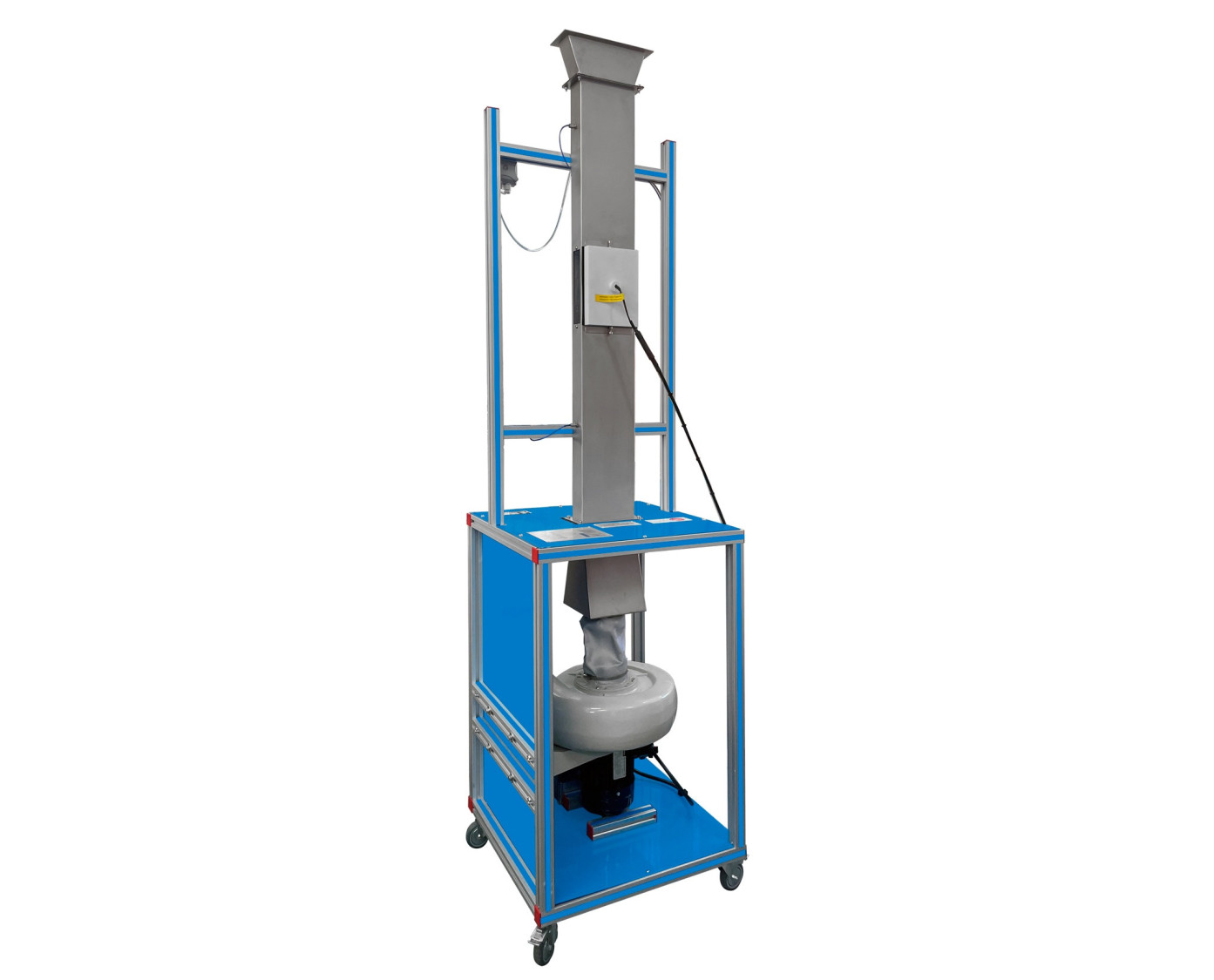

The Cross Flow Heat Exchanger (TIFCB) basically consists of a rectangular wind tunnel made of stainless steel, resistant to corrosion. It has a bellshaped inlet and a central opening arranged longitudinally with two supporting elements made of stainless steel to retain the plates with the different exchangers.

The tunnel is installed over the inlet of a powerful centrifugal fan and connected to it by an elastic coupling flange. This fan aspirates air from the tunnel and expels it outside, making air flow along the tunnel. There is a variable speed drive to control the air flow through the tunnel with the fan control.

The TIFCB unit includes two types of exchangers: a pinned (multi-tube) exchanger and a single tube exchanger, where the heating element is lodged.

To perform all the practical exercises the unit has two temperature sensors to measure the air temperature in the tunnel, before and after passing through the heat exchanger, a control temperature sensor lodged in the heating element and a speed sensor that allows the user to determine the air speed along the tunnel.

Available two optional exchangers: Local Heat Transfer Exchanger (TIFCB/A) and Finned Tube Exchanger (TIFCB/F).

演習と指導の慣行

マニュアルに含まれるガイド付き実習

Investigation of convective processes.
Determination of heat transfer in a single tube exchanger.
Determination of heat transfer in a pinned (multi-tube) exchanger.
Determination of the average heat transfer in a pinned (multi-tube) exchanger.
Deduction of the relationship between Nusselt, Reynolds and Prandtl numbers.

より実用的な練習をして、ユニットを完成させる

Practical possibilities with the optional TIFCB/A exchanger:

Determination of the existing relationship between Nusselt and Reynolds number using the direct heat transfer element.
Determination of the local variation in the convective heat transfer coefficient, using the direct heat transfer element.

Practical possibilities with the optional TIFCB/F exchanger:

Effect produced by the external fins in the heat transfer process.
Determination of the heat transfer in a finned tube exchanger.

補完的な機器

COMPUTER CONTROLLED HEAT EXCHANGERS TRAINING SYSTEM - TICC

TICC

Available

9.7.- 熱交換器

TICC

コンピューター制御熱交換演習システム：

Heat exchangers are widely used in refrigeration, air conditioning, heating, energy generation, chemical processing, etc. They have many applications in engineering and, as a consequence, there are many models adapted to each application to obtain...

TIUS

Available

9.7.- 熱交換器

TIUS

基本サービスユニット（利用可能な"TI"型熱交換器すべてに共通）

This unit is common for Heat Exchangers type "TI" and can work with one or several exchangers.This unit performs the following tasks:Heating water in a computer controlled thermostatic bath.Pumping the hot water.Regulation and measurement of the...

CONCENTRIC TUBE HEAT EXCHANGER FOR TICC - TITC

TITC

Available

9.7.- 熱交換器

TITC

TICC用同心チューブ熱交換器

The Concentric Tube Heat Exchanger for TICC, "TITC", designed by EDIBON, allows for the study of heat transfer between two fluids: the hot water flowing through the inner tube and the cold water flowing through the annular zone between the inner...

EXTENDED CONCENTRIC TUBE HEAT EXCHANGER FOR TICC - TITCA

TITCA

Available

9.7.- 熱交換器

TITCA

TICC用拡張同心チューブ熱交換器

The Expanded Concentric Tube Heat Exchanger for TICC, "TITCA", designed by EDIBON, allows for detailed study of heat transfer between two fluids: the hot water flowing through an inner tube and the cold water circulating in the annular space...

TIPL

Available

9.7.- 熱交換器

TIPL

TICC用プレート熱交換器

The Plate Heat Exchanger for TICC, "TIPL", designed by EDIBON, allows the study of heat transfer between hot and cold water flowing through alternate channels formed between parallel plates. This unit enables the analysis of how heat transfer...

EXTENDED PLATE HEAT EXCHANGER FOR TICC - TIPLA

TIPLA

Available

9.7.- 熱交換器

TIPLA

TICC用の拡張プレート熱交換器

Extended Plate Heat Exchanger for TICC: It has been designed to study the heat transfer between hot water and cold water flowing through alternate channels formed between parallel plates.

SHELL & TUBE HEAT EXCHANGER FOR TICC - TICT

TICT

Available

9.7.- 熱交換器

TICT

TICC用のシェルおよびチューブ熱交換器

The Shell and Tube Heat Exchanger for TICC, "TICT", designed by EDIBON, provides a comprehensive environment for the study of heat transfer. It allows analysis of the overall energy balance, heat losses in parallel and counterflow configurations,...

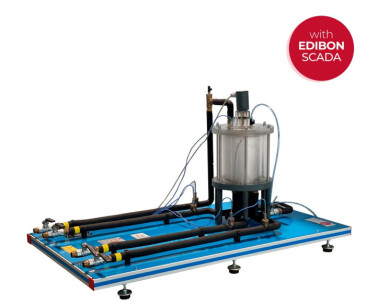

JACKETED VESSEL HEAT EXCHANGER FOR TICC - TIVE
