DC SHUNT EXCITATION MOTOR APPLICATION - AEL-DCSHT

革新的なシステム

The Shunt Excitation Motor Aplication "AEL-DCSHT" has been designed by EDIBON to study the electrical characteristics and mechanical parameters of shunt wound DC motors.

一般的な説明を表示

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア

関連ニュース

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
続きを読む
The Importance of Hands-On Training in Electricity for Universities and Companies
The Importance of Hands-On Training in Electricity for Universities and Companies
Electricity is a form of energy resulting from the movement of electrons through a conductor. This physical phenomenon is essential for the operation of a wide variety of devices and systems we use daily, from household appliances to complex industrial systems.
続きを読む
What is Industry 4.0?
What is Industry 4.0?
Today we are at the beginning of a new era, named ‘Industrie 4.0’. Let´s explain a little further the concept "Industrie 4.0"!
続きを読む

概要

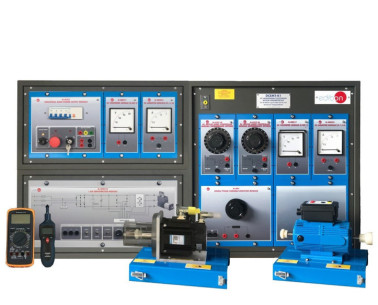

The Shunt Excitation Motor Aplication "AEL-DCSHT" has been designed by EDIBON to study the electrical characteristics and mechanical parameters of shunt wound DC motors. This application allows the students to acquire a basic knowledge about different methods to obtain characteristic curves of the DC motors. For this purpose, the application includes a series of measurement devices, such as mechanical torque measurement unit, analog ammeter, analog voltmeter, multimeter and manual speed meter. All these elements included are indispensable to study the DC motor characteristics.

Additionally it is recommended the Control and Data Acquisition System Software for Electrical Machines, "EM-SCADA", a revolutionary data acquisition software developed by EDIBON that allows monitoring all voltages, currents and torque waveforms in order to study in depth the machine. Through the "EM-SCADA" the user can carry out a DC Motor electrodynamic study with braking tests and to obtain the results after analysis.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

  1. Checking the domestic main power supply.
  2. Wiring and starting of shunt wound DC motor.
  3. Use of measurement instrumentation.
  4. Braking test with eddy current brake and shunt wound DC motor.
  5. Obtaining of performance curve of the shunt wound DC motor.

より実用的な練習をして、ユニットを完成させる

With Control and Data Acquisition System of Electrical Motors, "EM-SCADA":

  1. Torque / speed measurement waveforms.
  2. Real time measuring and monitoring of voltages, currents, active power, reactive power, power factor, etc.
  3. Electrodynamic study of electrical machines.
  4. Obtained results storage.
  5. Braking tests and monitoring of results in real time.

利用可能な類似の機器

DC ELECTRICAL MOTORS APPLICATIONS - AEL-DCEMT
  • AEL-DCEMT
Available
4.3.2.2.- DC電気モーターおよびジェネレーター
AEL-DCEMT
直流電動機アプリケーションズ
The DC Electrical Motors Applications, "AEL-DCEMT", has been designed by EDIBON to carry out electrical/mechanical tests for a great variety of DC motors. Such tests allow obtaining the most significant electrical and mechanical characteristics of...
