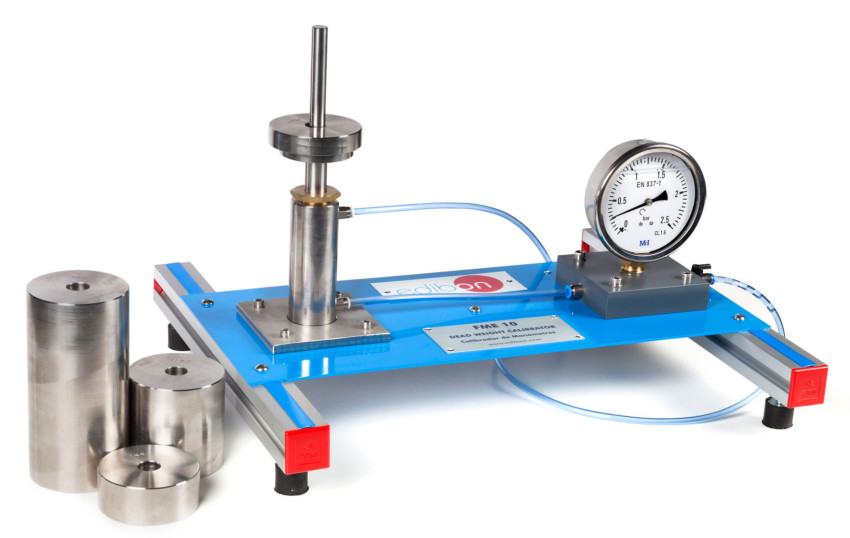

FME10 積載重量キャリブレーター

8.1.2.- 測定

革新的なシステム

The Pressure Gauge Calibrator, "FME10", designed by EDIBON, allows the study of the operation of a Bourdon type pressure gauge using a standard set of calibrated weights and the determination and the study of the pressure gauge hysteresis curve.

一般的な説明を表示

カタログ

コンテストの仕様

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア

MSAC

モジュラーな取得および制御システム

研究室

8TV

技術教育・職業教育のための流体力学研究室

8HE

高等教育用流体力学研究室

概要

The unit consists of a hollow cylinder in whose interior a precision piston moves. Using a system of calibrated weights, we produce predetermined pressures inside the cylinder.

The Bourdon manometer that must be contrasted is connected to the cylinder by means of a flexible pipe.

Unit levelling through adjustable feet.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

Bourdon type manometer calibration.
Hysteresis curve determination.
