DEPRESSION MEASUREMENT SYSTEM (VACUUM GAUGE) - FME26

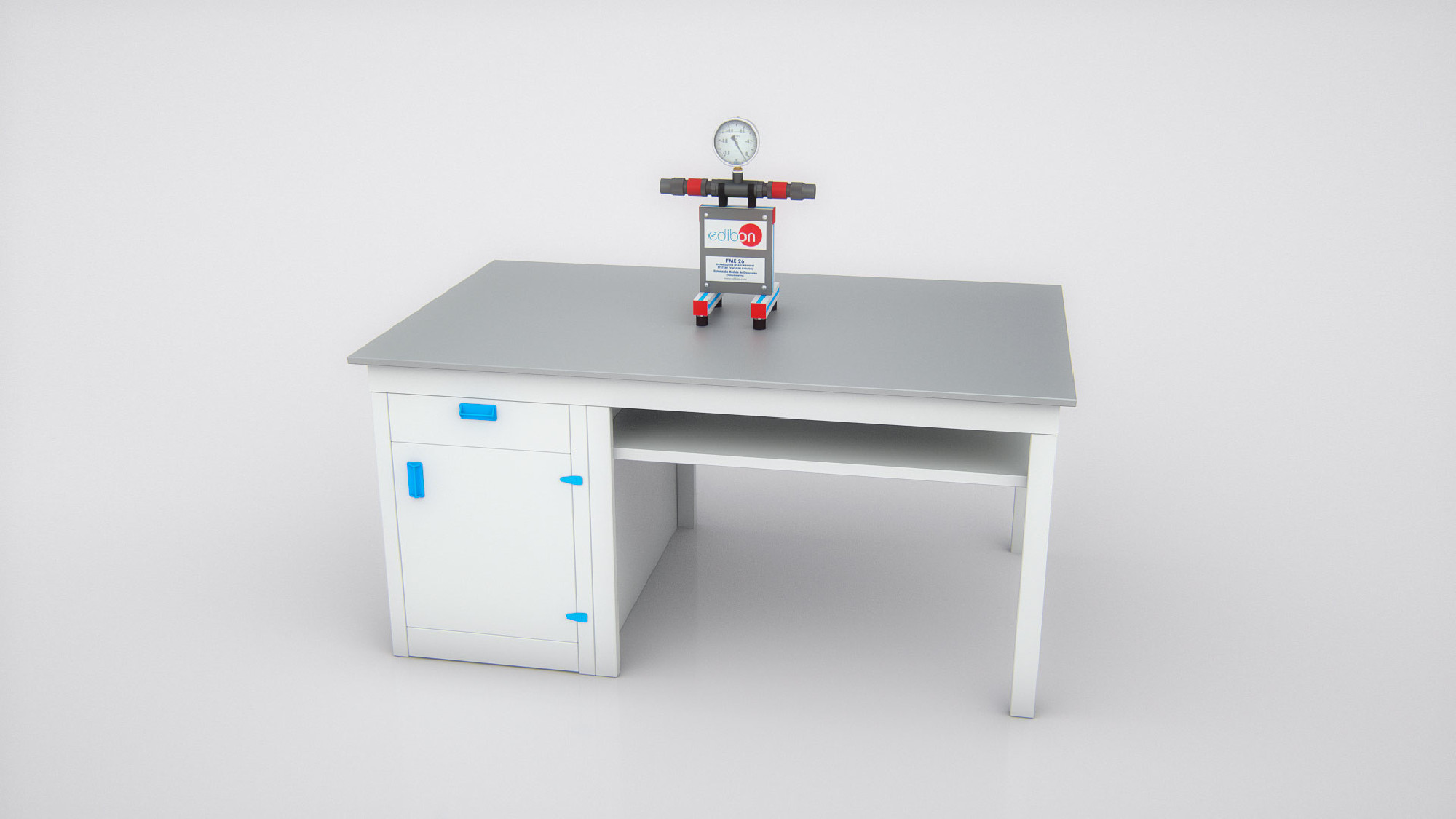

Complete FME26 Unit

FME26 Unit with service unit FME00

革新的なシステム

The depression measurement system, in pressure fall, FME 26, is designed to be connected to the inlet of some flow aspiration system, in a way that we could measure the depression made by the so-called aspiration system.

一般的な説明を表示

カタログ

コンテストの仕様

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア

MSAC

モジュラーな取得および制御システム

研究室

8TV

技術教育・職業教育のための流体力学研究室

8HE

高等教育用流体力学研究室

概要

The Depression Measurement System (vacuum gauge), "FME 26", is designed to be connected to the inlet of some flow aspiration system, in a way that we could measure the depression made by the so-called aspiration system. Such system will be usually a water pump that takes out some liquid from a tank.

Anodized aluminum structure that supports a vacuum gauge whose reading gives us the measurement.

Two quick connections at both sides of the vacuum gauge allow connecting reinforced flexible pipes.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

To measure the depression caused for the fluid aspiration by an hydraulic pump.
We can observe the different negative readings due to the different methods of fluid aspiration for its subsequent impulsion.
