M99-6 モーター、発電機および制御実験装置

2.3.1.- 基本的な電気法の概念

革新的なシステム

With the Electronics for Motors and Generators Unit, "M99-6", designed by EDIBON, the student is allowed to learn the most important concepts related to motors and generators and the differences between them.

一般的な説明を表示

カタログ

コンテストの仕様

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア

研究室

2TV

技術教育・職業教育のための電子実験室

2HE

高等教育電子工学研究室

11PTC

石油研修センター研究室

概要

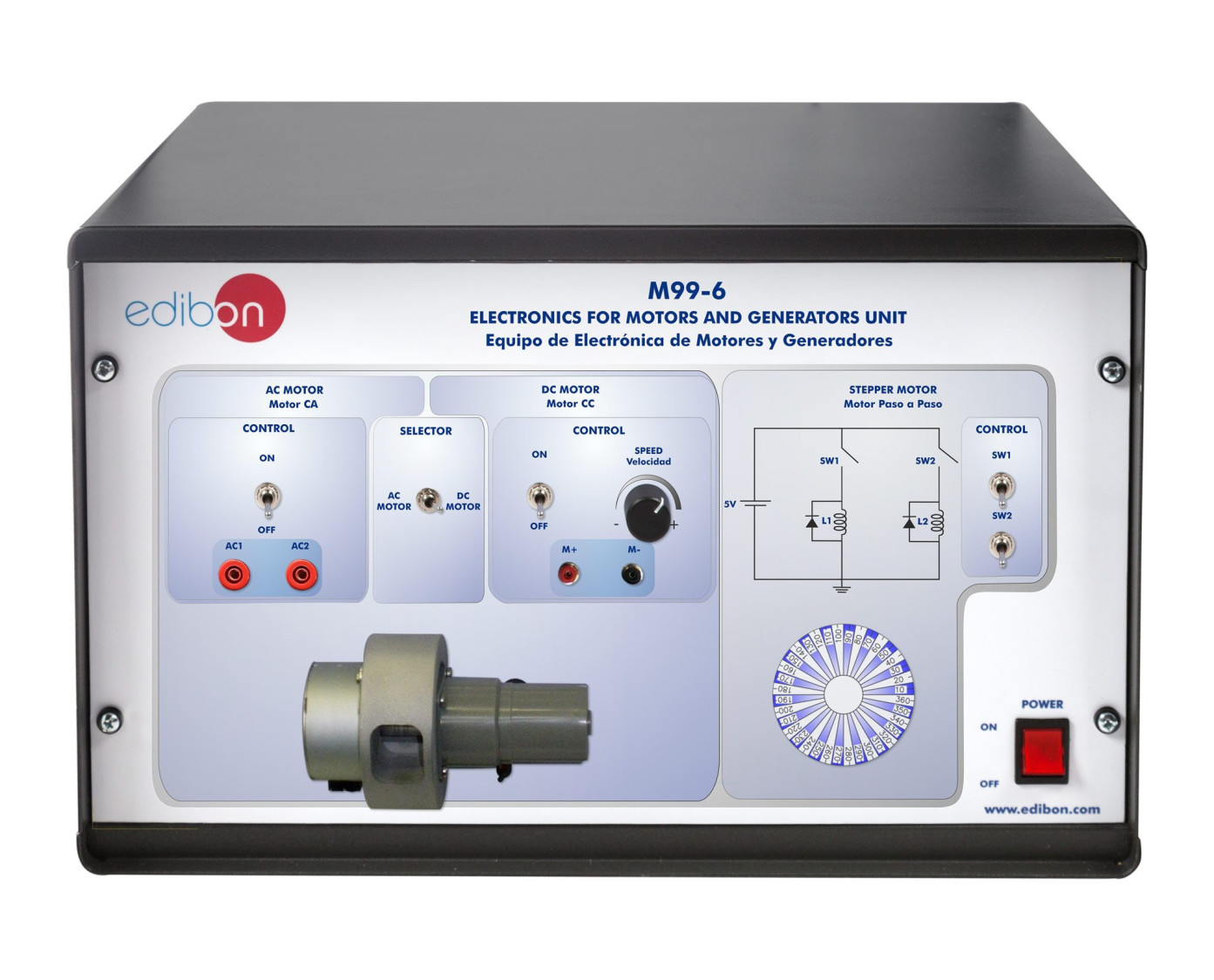

The Electronics for Motors and Generators Unit, "M99-6", designed by EDIBON, enables to carry out different practices related with motors and generators. The unit has different different types of motors: DC motor, AC motor and stepper motor.

The "M99-6" unit mainly consists of:

DC Motor. Includes a potentiometer to control the speed of the motor. There is a switch to enable the motor to run. The voltage internally applied to the motor or generated can be observe using the "M+" and "M-" terminals.
AC Motor. Includes a switch to enable the motor to run. The voltage internally applied to the motor or generated can be observe using the "AC1" and "AC2" terminals.
Stepper Motor. Includes two switches to control the rotation of the motor. To perform a rotation some determined steps must be carried out.

The unit is provided with a set of practices through which the user will understand how to work different electronics circuits.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

DC Motor.
AC Motor.
DC Generator.
AC Generator.
Stepper motor.

補完的な機器

BASIC ELECTRONICS AND ELECTRICITY LABORATORY: - LIEBA

LIEBA

Available

14.2.1.6.- 电力电子

LIEBA

基礎電子電気工学統合実験室：

We present a flexible and modular-based system for learning basic electronics, basic electricity and circuit theory. The advantage given by this learning and teaching system is that the student establishes his own rhythm, thus rendering...

DIRECT CURRENT (DC) CIRCUITS MODULE - N-M1

N-M1

Available

14.2.1.1.- 基本的な電気法の概念

N-M1

Direct Current (DC) Circuits Module

For the correct understanding of electronics it is necessary to know some fundamental laws and theorems such as Ohm’s Law, Kirchhoff’s Laws and other simple theorems of initiation to D.C. circuits.With Direct Current (D.C.) Circuits Module,...

ALTERNATING CURRENT (AC) CIRCUITS MODULE - N-M2

N-M2

Available

14.2.1.1.- 基本的な電気法の概念

N-M2

Alternating Current (AC) Circuits Module

In contrast to DC, which always has the same direction and sense, in AC the flow of electrons changes direction periodically with a frequency of 50 or 60 Hz (depending on the country).With Alternating Current (AC) Circuits Module, "N-M2", designed...

N-M16

Available

14.2.1.1.- 基本的な電気法の概念

N-M16

Electric Networks Module

After studying the basic knowledge of electrical networks, we must understand and investigate the dependence between current and voltage applied to different electrical devices.With the Electric Networks Module, "N-M16", designed by EDIBON, it is...

N-M17

Available

14.2.1.1.- 基本的な電気法の概念

N-M17

Electromagnetism Module

Electromagnetism is the interaction between electric charges. It is described in terms of charges interacting between of electric and magnetic fields.With the Electromagnetism Module, "N-M17", designed by EDIBON, the operation of electromagnetic...

N-M18

Available

14.2.1.1.- 基本的な電気法の概念

N-M18

Three-phase Circuits Module

Three-phase voltage is essentially a system of three alternating voltages, coupled (all 3 are produced simultaneously in a generator) and 120º out of phase with each other (i.e. one third of the period).The Three-phase Circuits Module, "N-M18",...
