FME07 導管内エネルギー損失実験装置

8.1.8.- 油圧パイプ
ENERGY LOSSES IN PIPES - FME07

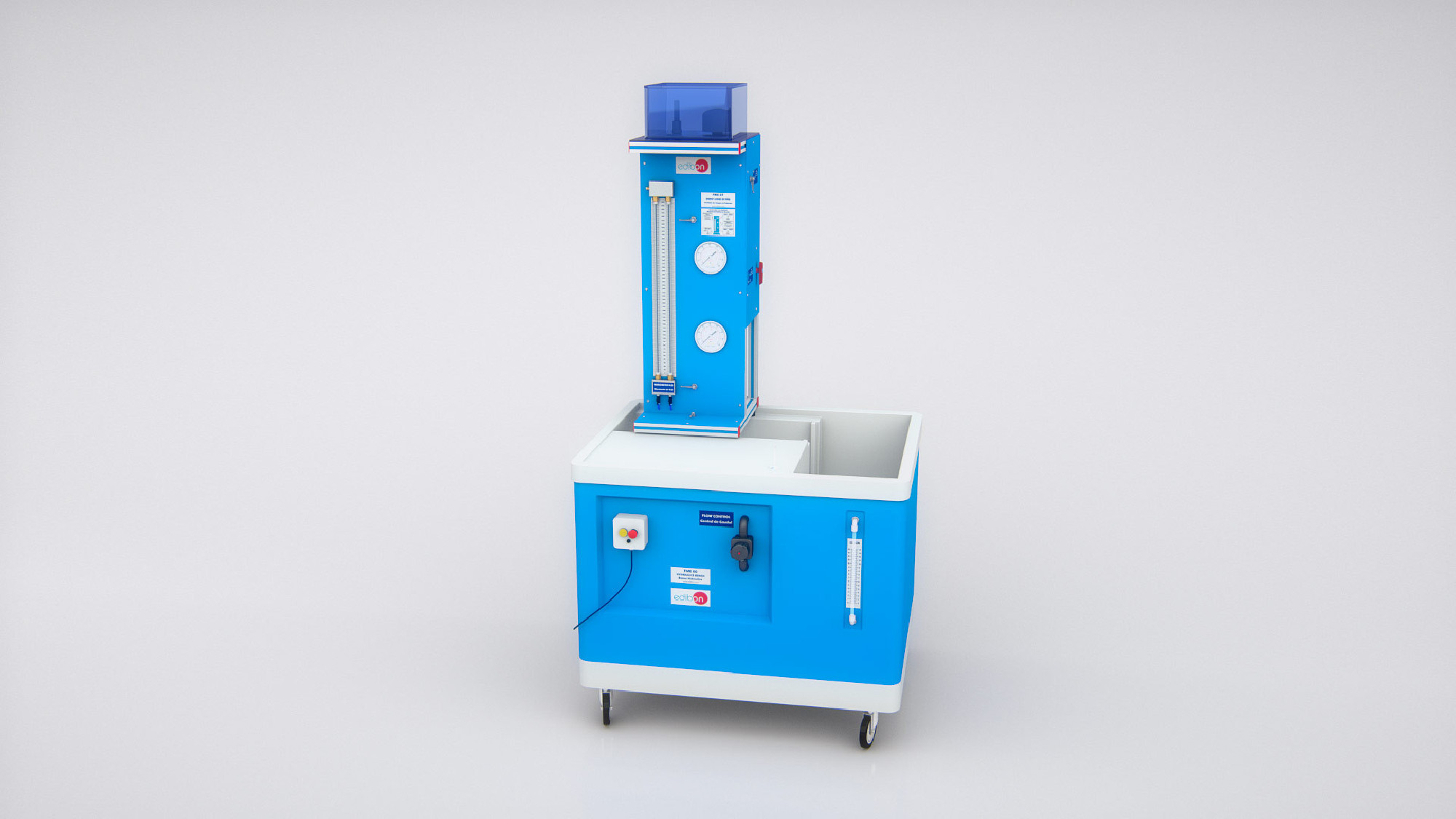

Complete FME07 Unit

ENERGY LOSSES IN PIPES - FME07

FME07 Unit with service unit FME00

ENERGY LOSSES IN PIPES - FME07
ENERGY LOSSES IN PIPES - FME07

革新的なシステム

With the Energy Losses in Pipes, "FME07", designed by EDIBON, the user will be able to measure the head losses generated in a pipeline for different flow rates in both laminar and turbulent regimes.

一般的な説明を表示

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア
MSAC

モジュラーな取得および制御システム

研究室

8TV
 技術教育・職業教育のための流体力学研究室
8HE
 高等教育用流体力学研究室

関連ニュース

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
続きを読む
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
続きを読む

概要

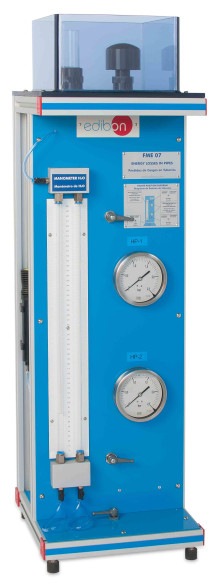

With the Energy Losses in Pipes, "FME07", designed by EDIBON, the user will be able to measure the head losses generated in a pipeline for different flow rates in both laminar and turbulent regimes.

The unit consists of the following elements, used in combination with the Hydraulics Bench (FME00) or the Basic Hydraulic Feed System (FME00/B):

  • Pipe with quick connector to be coupled to the water outlet’s mouthpiece at the Hydraulics Bench (FME00) or the Basic Hydraulic Feed System (FME00/B).
  • 6 mm external/4 mm inner diameter metallic test pipe.
  • One water column differential manometer.
  • Constant height tank.
  • Two Bourdon type manometers.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

  1. Energy loss in pipes for a turbulent regime.
  2. Determination of the energy loss in a turbulent regime.
  3. Determination of the number of Reynolds for a turbulent regime.
  4. Energy loss in pipes for a laminar regimen.
  5. Determination of the energy loss factor f for a pipe in laminar regime.
  6. Determination of Reynolds number for the laminar regime.
  7. Determination of the kinematic viscosity of water.
