CEAB フィールドバスアプリケーション用演習装置

6.1.1.2.- 産業用コントローラー 10.2.- コントローラーと産業用通信
FIELD BUS APPLICATIONS UNIT - CEAB

革新的なシステム

The Trainer for Field Bus Applications, "CEAB", provides the components to conform a real Profibus DP Network where the PC is the master device and different components included with the unit are the slave devices.

一般的な説明を表示

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア

研究室

6TV
 職業教育メカトロニクス研究室
6HE
 高等教育メカトロニクス・自動化研究室
2TV
 技術教育・職業教育のための電子実験室
2HE
 高等教育電子工学研究室
11PTC
 石油研修センター研究室

関連ニュース

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
続きを読む
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
On October 19th, the Course on Instrumentation, Regulation and Control in Laboratories, taught by our engineers in these facilities, using EDIBON units, was completed and aimed at learning the control of the conditions of a laboratory process. The attendants, (12 laboratory technicians and...
続きを読む

概要

The Trainer for Field Bus Applications, "CEAB", provides the components to conform a real Profibus DP Network where the PC is the master device and different components included with the unit are the slave devices. The "CEAB" unit also allows to study protocols conversion through a gateway device, with an example of conversion from Modbus RTU to Profibus DP.

The "CEAB" unit is based on a modular design structure whose functionality is divided into different modules to allow the student a better understanding of the unit. The modules provided with the unit are: Industrial controller, Analog Inputs Module, Analog Outputs Module, Digital Voltmeter, Set Point Generator, Digital Inputs Module, Digital Outputs Module, and the Interface Card.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

  1. Study of the transfer function.
  2. Familiarize with the Set Point Generator, generation of a square signal using two analog signals.
  3. Familiarization with the operation with an industrial controller (operator page screen, trend display screen, etc).
  4. Operation and function of a digital industrial controller.
  5. Setting alarms and diagnosis generation.
  6. Familiarization with the Fieldbuses and the stations connected.
  7. Familiarization with the device master file "DMF".
  8. Network layout of the Profibus DP Fieldbus.
  9. Communication protocols.
  10. Installation, connection and familiarization with the software.
  11. Configuration of the Profibus DP network.
  12. Input/output mapping of the Industrial Controller and the digital and analog input and output device.
  13. Communication parameters configuration and reading the Profibus DP variables.
  14. OPC server configuration and creation of tags with an OPC client.
  15. Reading and writing the signal of the Digital and Analog Input and Output Profibus DP module with the OPC server.
  16. Setting the PID control parameters of an industrial controller with the front panel of the device.
  17. Setting the PID control parameters of an industrial controller with the OPC server.

利用可能な類似の機器

INDUSTRIAL CONTROLLERS UNIT - CECI
  • CECI
Available
6.1.1.2.- 産業用コントローラー
CECI
産業用コントローラー演習装置
The Industrial Controllers Unit, "CECI", is based on a modular design structure whose functionality is divided into different modules toallow the student a better understanding of the unit. The modules included in the unit are: industrial...
ユニットを見る

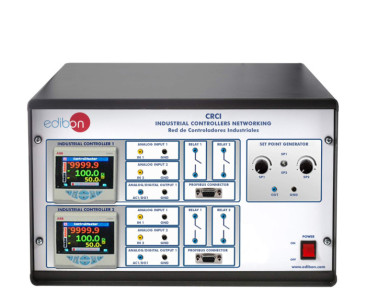

INDUSTRIAL CONTROLLERS NETWORKING - CRCI
