AEL-AD22 洪水制御の応用

4.2.1.- 従来のアプリケーション
FLOODING CONTROL APPLICATION - AEL-AD22

革新的なシステム

The Flooding Control Aplication, "AEL-AD22", has been designed by EDIBON to know and study the operation of the most common flooding control systems.

一般的な説明を表示

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア

関連ニュース

What is Industry 4.0?
What is Industry 4.0?
Today we are at the beginning of a new era, named ‘Industrie 4.0’. Let´s explain a little further the concept "Industrie 4.0"!
続きを読む

概要

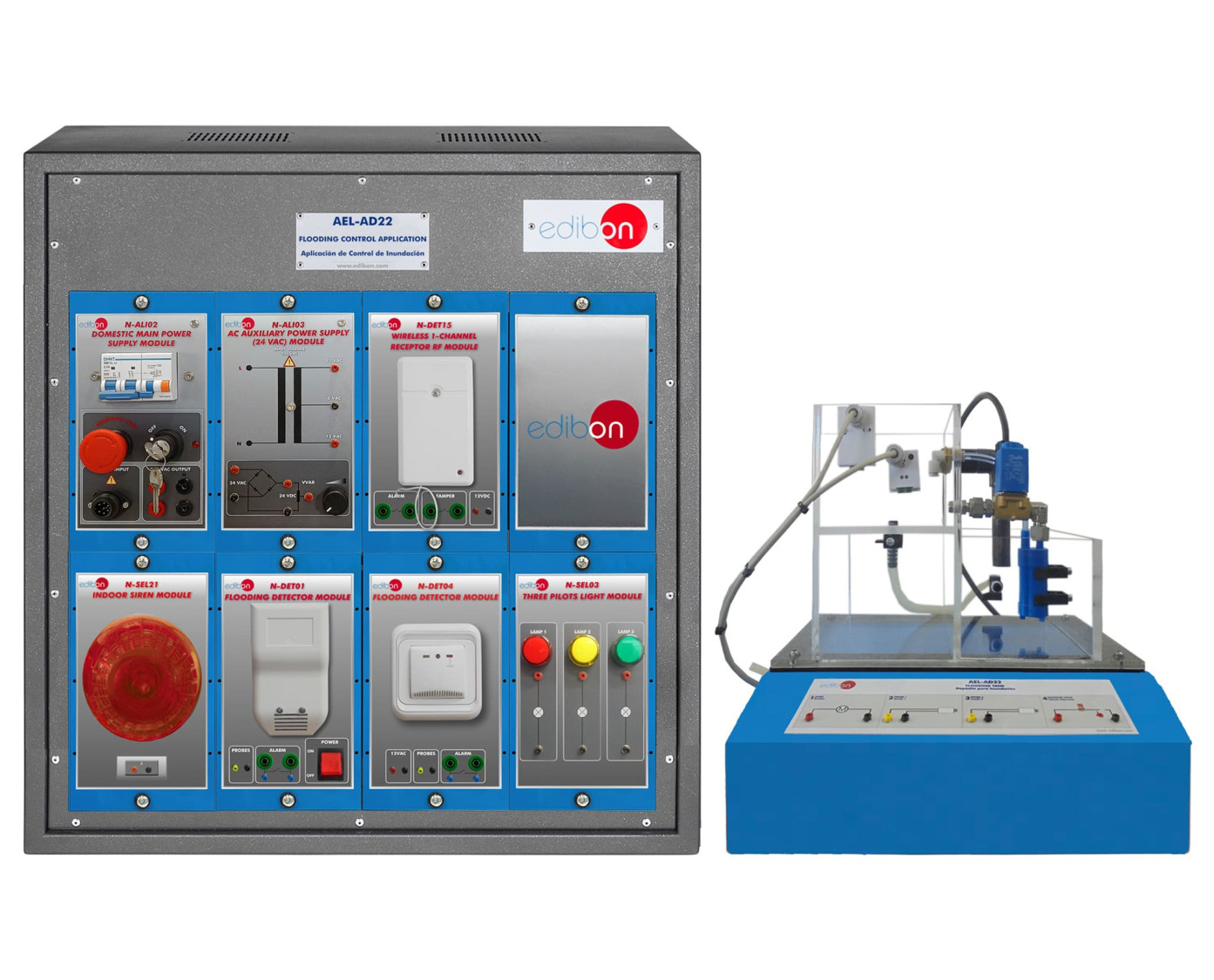

The Flooding Control Aplication, "AEL-AD22", has been designed by EDIBON to know and study the operation of the most common flooding control systems.

This application has two parts:

  • On one side, there is a water tank divided into two parts: one to simulate flooding and the other for evacuation. Between these two parts there is a solenoid valve that allows the exchange of water between the two tanks by means of a pump.
  • The other part of the application includes of two flood detectors (one of which can be embedded in a wall), a module of pilot lights that can be activated by the sensors and an indoor siren.

Therefore, this application allows the student to learn about the operation of flooding control systems.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

  1. Checking and measuring on the main power supply.
  2. Checking the working of the auxiliary power supply.
  3. Checking the working of pilot-lights by connecting as visual alarms.
  4. Checking the working of the built-in power supply.
  5. Checking the operation of the flooding detector.
  6. Checking the operation of the built-in flood detector.
  7. Checking the operation of the sire, used as visual and acoustic alarm.
  8. Simulate floods and evacuations with the water tank and the electrovalve.
