FME09 流路流体可視化装置

8.1.5.- 流れの可視化
FLOW VISUALIZATION IN CHANNELS - FME09

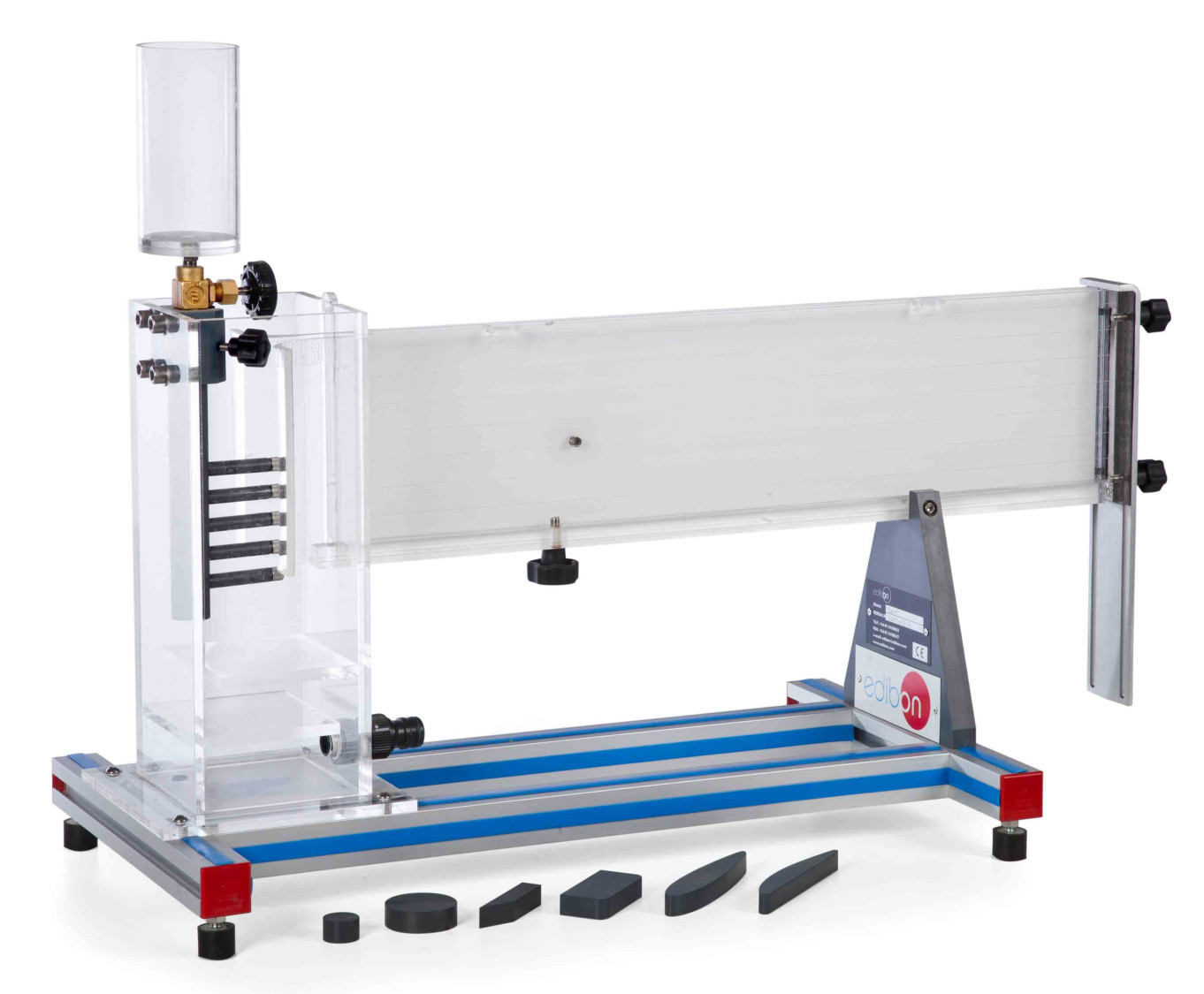

Complete FME09 Unit

FLOW VISUALIZATION IN CHANNELS - FME09

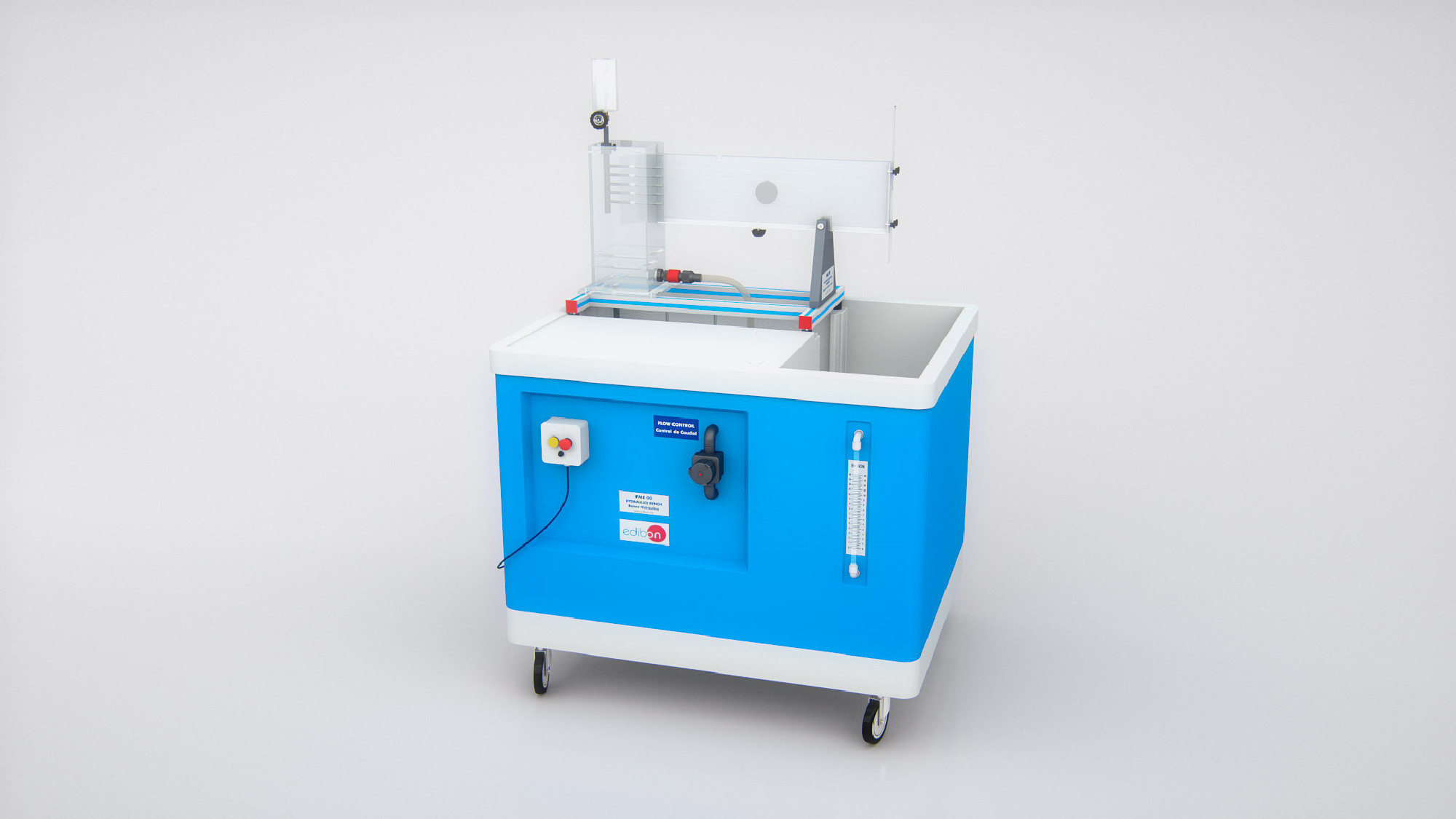

FME09 Unit with service unit FME00

FLOW VISUALIZATION IN CHANNELS - FME09
FLOW VISUALIZATION IN CHANNELS - FME09

革新的なシステム

The Flow Visualization in Channels unit, "FME09", designed by EDIBON, allows the visualization of liquid spillage phenomena in weirs and the study of objects submerged in a fluid stream (aerodynamics).

一般的な説明を表示

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア
MSAC

モジュラーな取得および制御システム

研究室

8TV
 技術教育・職業教育のための流体力学研究室
8HE
 高等教育用流体力学研究室

関連ニュース

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
続きを読む
Setting up at the University of Trinidad and Tobago
Setting up at the University of Trinidad and Tobago
Recently, we have had the pleasure of making an installation at the University of Trinidad and Tobago
続きを読む
Setting up at Slippery Rock University
Setting up at Slippery Rock University
We are very pleased that we have recently completed an installation in the department of Physics and Engineering at the Slippery Rock University.  It's always a pleasure to work on projects like this!
続きを読む
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
続きを読む

概要

The Flow Visualization in Channels unit, "FME09", designed by EDIBON, allows the visualization of liquid spillage phenomena in weirs and the study of objects submerged in a fluid stream (aerodynamics).

The unit consists of a transparent methacrylate channel with an overflow pipe on top and an adjustable plate in the discharge end. This plate allows for regulating the flow level.

The water is supplied to the channel by the pulse mouth of the Hydraulics Bench (FME00) or the Basic Hydraulic Feed System (FME00/B), by means of a flexible pipe, passes through a damping tank that eliminates the turbulences.

It has a colouring injection system consisting of a tank, a flow control valve and some needles that allow a better visualization of the flow around the different hydrodynamic models, which have to be placed in the middle of the channel.

Unit levelling through adjustable feet.

Several hydrodynamic models are given to study the flow around them.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

  1. Leakage of liquids by thin-wall weirs.
  2. Liquid leakage by thick-wall weirs.
  3. Models with wing profile submerged in a fluid current.
  4. Circular models submerged in a fluid current.
  5. Demonstration of the phenomenon associated to the flow in open channels.
  6. Visualization of the flow lines around different submerged hydrodynamic models.
