TCLFB 自由・強制対流熱伝導実験装置

9.6.- 熱伝達
FREE AND FORCED CONVECTION HEAT TRANSFER EQUIPMENT - TCLFB

革新的なシステム

The Free and Forced Convection Heat Transfer Unit, "TCLFB", allows to study the efficiency ofdifferent exchangers, analyzing the heat transmission coefficients of each exchanger exposedto different airflows.

一般的な説明を表示

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア

関連ニュース

Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and thermotechnology are fundamental fields of engineering that play a critical role across various industries, from energy generation to climate control. Understanding these foundational concepts is essential not only for engineers but also for fostering technological innovations...
続きを読む
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
続きを読む
We are excited to celebrate the publication of the article by Prof. Dr. Nina Penkova titled "Performance of Diffusion Absorption Refrigerators with Variable Input Power" The study explores how absorption refrigerators, which utilize waste or solar energy for heating and cooling, can operate...
続きを読む

概要

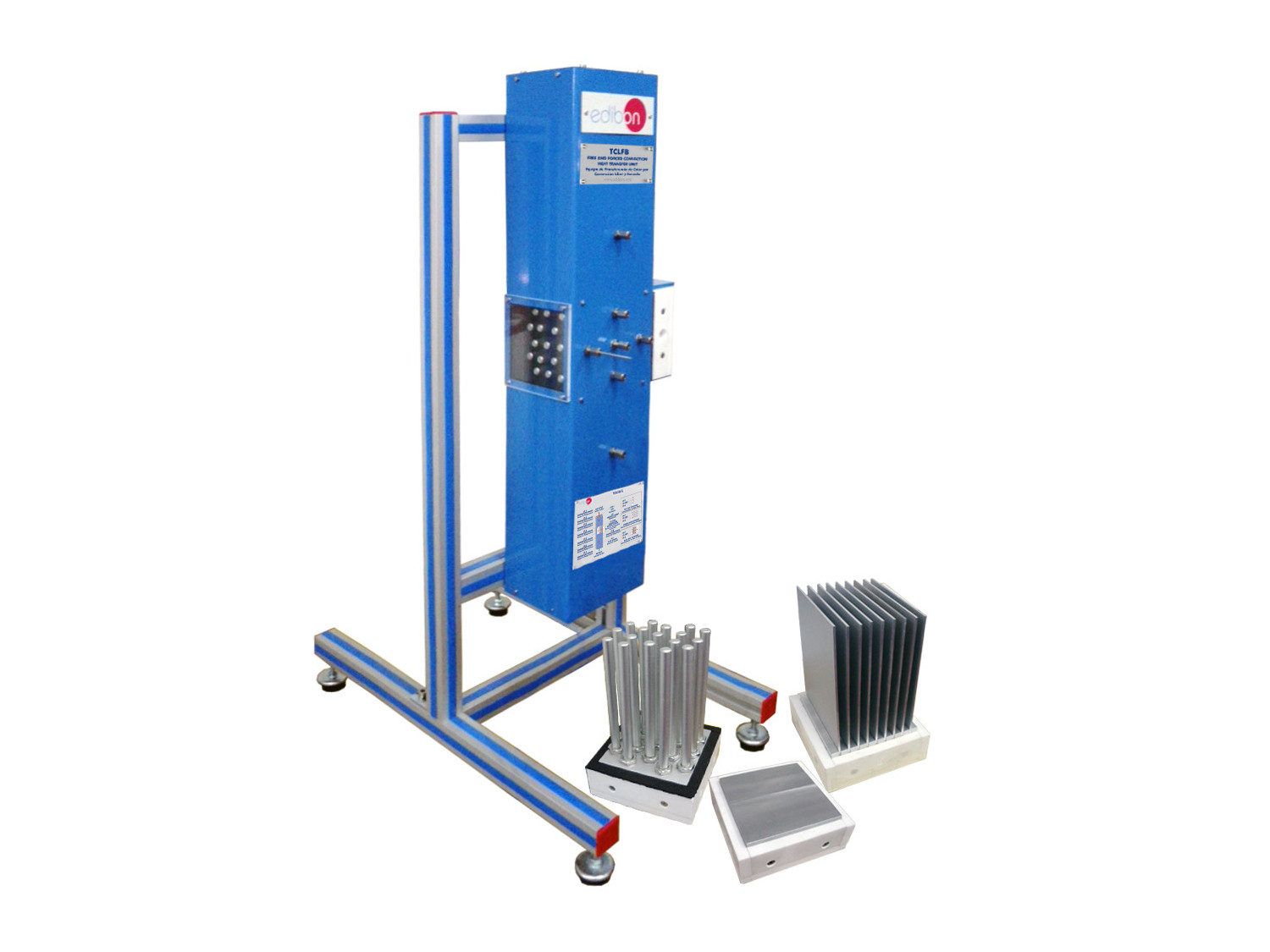

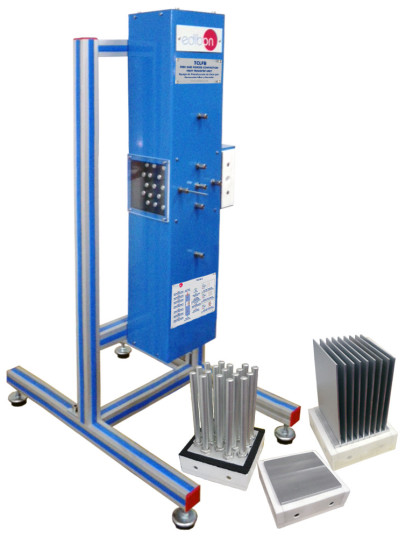

The Free and Forced Convection Heat Transfer Unit, "TCLFB", allows to study the efficiency ofdifferent exchangers, analyzing the heat transmission coefficients of each exchanger exposedto different airflows.

Fan placed in the upper part of the tunnel allows controlling the airflow that goes through thetunnel.

Electronic console contains the control circuits to measure temperatures, electrical control,electrical supply and speed control of the fan.

The airflow is measured with a flow sensor set at the inferior part of the tunnel.

This unit allows making a study of the heat transmission in three different types of exchangers:

  • Flat exchanger.
  • Pins exchanger.
  • Fins exchanger.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

  1. Demonstration of the basic principles of free and forcedconvection.
  2. Comparison between free and forced convection.
  3. Free convection in flat surfaces.
  4. Forced convection in flat surfaces.
  5. Dependence of the heat transmission with the temperature.
  6. Dependence of the heat transmission with the speed of thefluid.
  7. Dependence of the heat transmission with the exchangergeometry.
  8. Temperature distribution in the additional surfaces.
  9. Study of the advantage of using pinned and finned surfaces inheat transmission in free convection.
  10. Study of the advantage of using pinned and finned surfaces inheat transmission in forced convection.
  11. Comparative study between the free convection of a horizontalsurface and vertical surface.
  12. Determination of the Reynolds and Nusselt numbers.
