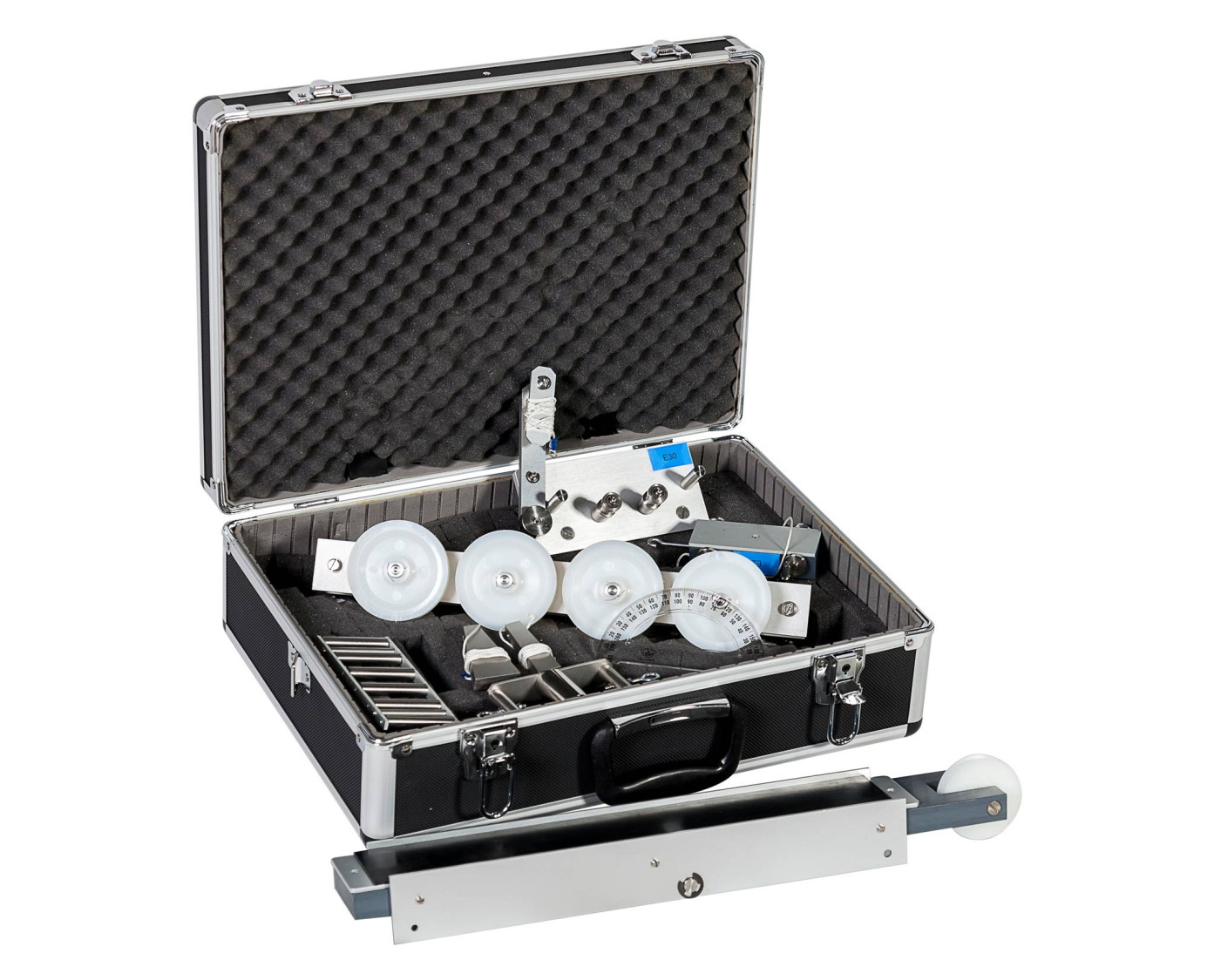

MECA5 摩擦実験

7.1.1.- メカニカルファンダメンタルキット 14.1.1.- メカニカルファンダメンタルキット
FRICTION EXPERIMENTS - MECA5

革新的なシステム

This module considers the most important phenomenon of Dynamics: Friction. It is a manifestation of the energy loss due to contact, effect that happens in every real-world mechanism.

一般的な説明を表示

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア

研究室

7TV
 機械・自動車・材料研究室
7HE
 高等教育のための機械・自動車・材料研究室

関連ニュース

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
続きを読む
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
続きを読む

概要

This module considers the most important phenomenon of Dynamics: Friction. It is a manifestation of the energy loss due to contact, effect that happens in every real-world mechanism.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

  1. Sliding friction. Verification of the laws of friction and to measure the coefficient of friction for different materials.
  2. Inclined plane (Inclined plane (I) and Inclined plane (II)). Analysis of the forces acting on an inclined plane due to a weighted of a roller supported on the plane. Calculation of the starting force needed for dragging a block on the plane.
  3. Angle of friction. Measurement of the angle of friction and from it find the coefficient of friction. To show that the coefficient of friction is equal to tangent of the angle of friction.
  4. Friction. To show the extent to which friction is reduced by using wheels and rollers and to compare the effects of different bearing surfaces.
  5. The wedge. Determine mechanical advantage and efficiency obtained using two different wedges, and to show that overhauling may be prevented if the angle of inclination of a wedge is small.
  6. Bearings. Comparison of the resistance to turning due to friction of four bearings made of different materials, and to show something of the progress made in bearing development.
