FME31 水平型オズボーン-レイノルズ現象 デモンストレーション装置

8.1.5.- 流れの可視化
HORIZONTAL OSBORNE REYNOLDS DEMONSTRATION - FME31

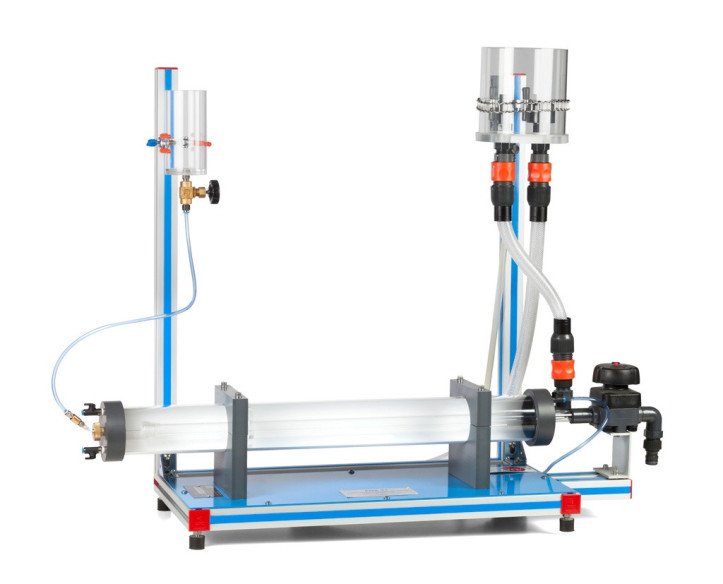

Complete FME31 Unit

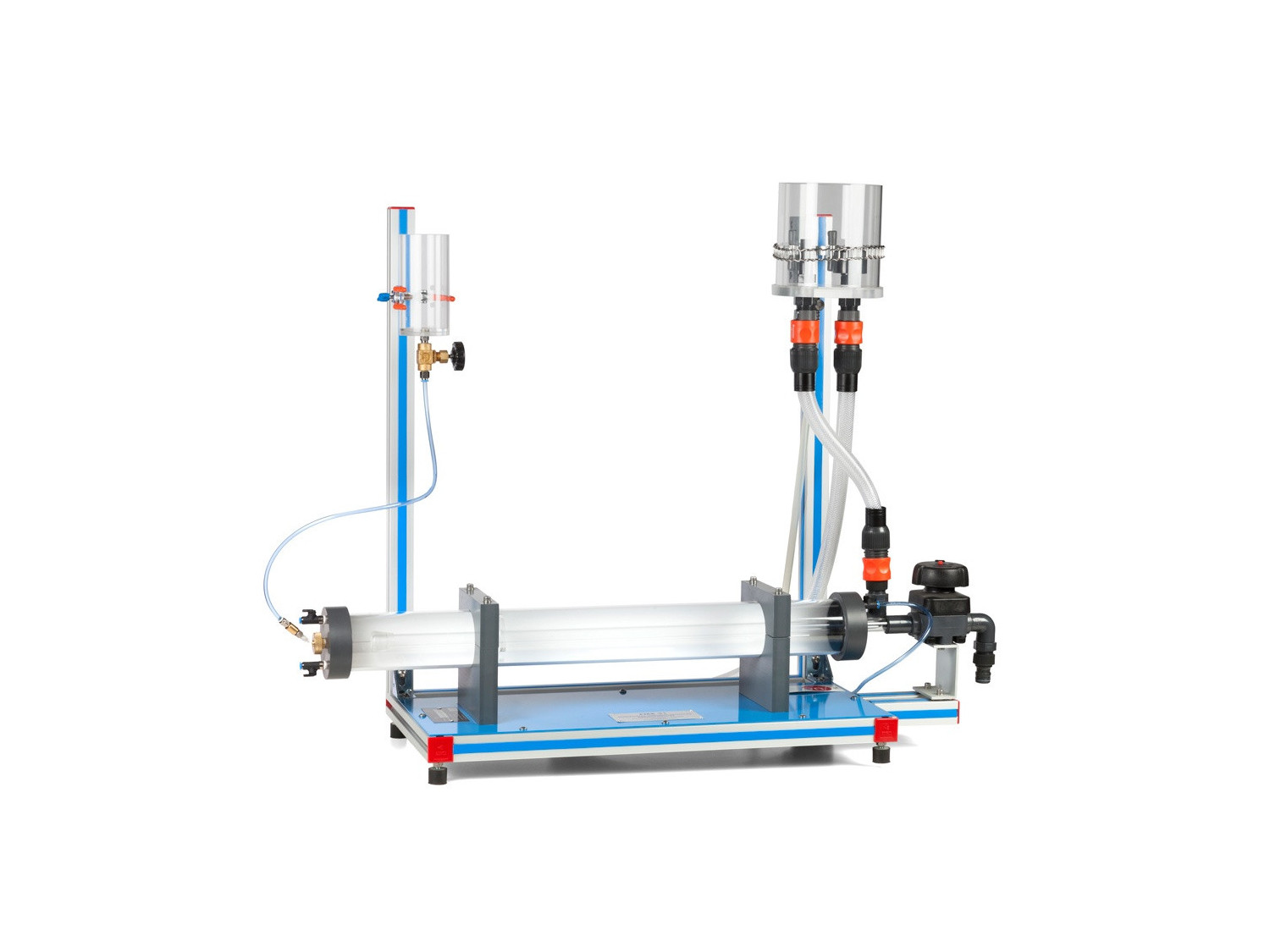

HORIZONTAL OSBORNE REYNOLDS DEMONSTRATION - FME31

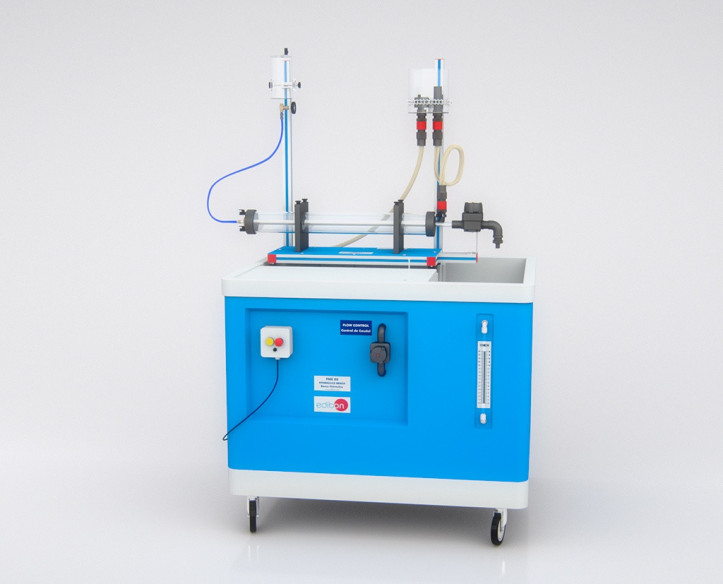

FME31 Unit with service unit FME00

HORIZONTAL OSBORNE REYNOLDS DEMONSTRATION - FME31
HORIZONTAL OSBORNE REYNOLDS DEMONSTRATION - FME31

革新的なシステム

The Osborne Reynolds Horizontal Demonstration Unit, "FME31", designed by EDIBON, allows to study the characteristics of a liquid flowing through a pipe and the Reynolds number in each of the liquid states.

一般的な説明を表示

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア
MSAC

モジュラーな取得および制御システム

研究室

8TV
 技術教育・職業教育のための流体力学研究室
8HE
 高等教育用流体力学研究室

関連ニュース

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
続きを読む
Setting up at the National University of Technology - NUTECH (Pakistan)
Setting up at the National University of Technology - NUTECH (Pakistan)
The National University of Technology - Pakistan (NUTECH), specifically the Mechanical Engineering Technology Department, installed some of our units so that their students can receive a quality practical education. Specifically, they have acquired our COMPUTER CONTROLLED AERODYNAMIC TUNNEL, 300...
続きを読む
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
続きを読む

概要

The Osborne Reynolds Horizontal Demonstration Unit, "FME31", designed by EDIBON, allows to study the characteristics of a liquid flowing through a pipe and the Reynolds number in each of the liquid states.

The FME31 unit makes it possible to study the characteristics of the flow of a liquid inside a pipe and the behaviour of such flow. Besides, it is possible to determine the range of the laminar and turbulent flows using the Reynolds number. Thus, difference between laminar, turbulent and transition flows can be demonstrated and the Reynolds number can be calculated for each regime.

This unit consists on a transparent and horizontal pipe section, which makes it possible to visualize the fluid, a water supply tank, which guarantees the flow homogeneity, and a needle connected to a tank through a hose, from where the dye is supplied. Water flow in the test section can be regulated by means of a valve.

Water can be supplied either using the Hydraulics Bench (FME00) or from the Basic Hydraulic Feed System (FME00/B).

演習と指導の慣行

マニュアルに含まれるガイド付き実習

  1. Observation of laminar, transition and turbulent flows.
  2. Association of laminar, transition and turbulent flows with their corresponding Reynolds number.
  3. Observation of the parabolic velocity profile.
