MOBILE BED AND FLOW VISUALIZATION UNIT (WORKING SECTION: 4000X610 MM) - HVFLM-4

革新的なシステム

The Mobile Bed and Flow Visualization Unit (working section: 4000x610 mm), "HVFLM-4", is a particularly useful equipment to demonstrate the fluidization phenomenon in engineering.

一般的な説明を表示
カタログ カタログ
コンテストの仕様
リクエスト情報

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア

研究室

8TV
 技術教育・職業教育のための流体力学研究室
8HE
 高等教育用流体力学研究室
13TV
 技術教育・職業教育環境実験室
13HE
 高等教育環境研究室

関連ニュース

CO₂ adsorption: a current necessity
CO₂ adsorption: a current necessity
In a world where climate change represents one of the greatest threats to our future, carbon dioxide (CO2) adsorption has become an urgent priority. The increasing concentration of CO2 in the atmosphere, primarily driven by human activities such as fossil fuel combustion and deforestation, has...
続きを読む
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
続きを読む
ダイレクトエアキャプチャー：気候変動対策の鍵となる技術
ダイレクトエアキャプチャー：気候変動対策の鍵となる技術
ダイレクトエアキャプチャー (DAC) は、液体溶媒や固体吸収剤との化学反応を利用して空気中のCO₂を直接除去する革新的な技術です。コストの高さやエネルギー消費といった課題はあるものの、DACは大気中のCO₂濃度を減らし、気候変動を緩和する潜在的な解決策を提供します。DACの研究開発を継続することが、その実現可能性と効果を向上させるために重要です。
続きを読む
飲料水処理システムの理解と改善
飲料水処理システムの理解と改善
下水処理施設 飲料水処理プラントが安全な飲料水の供給に焦点を当てる一方で、下水処理施設は使用済みの水を再び環境に放出する前に処理します。 これらの施設は、水資源と公衆衛生の保護に重要な役割を果たします。 高度な処理技術は、汚染物質を除去し、処理された水が環境基準を満たすことを保証します。
続きを読む
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
続きを読む

概要

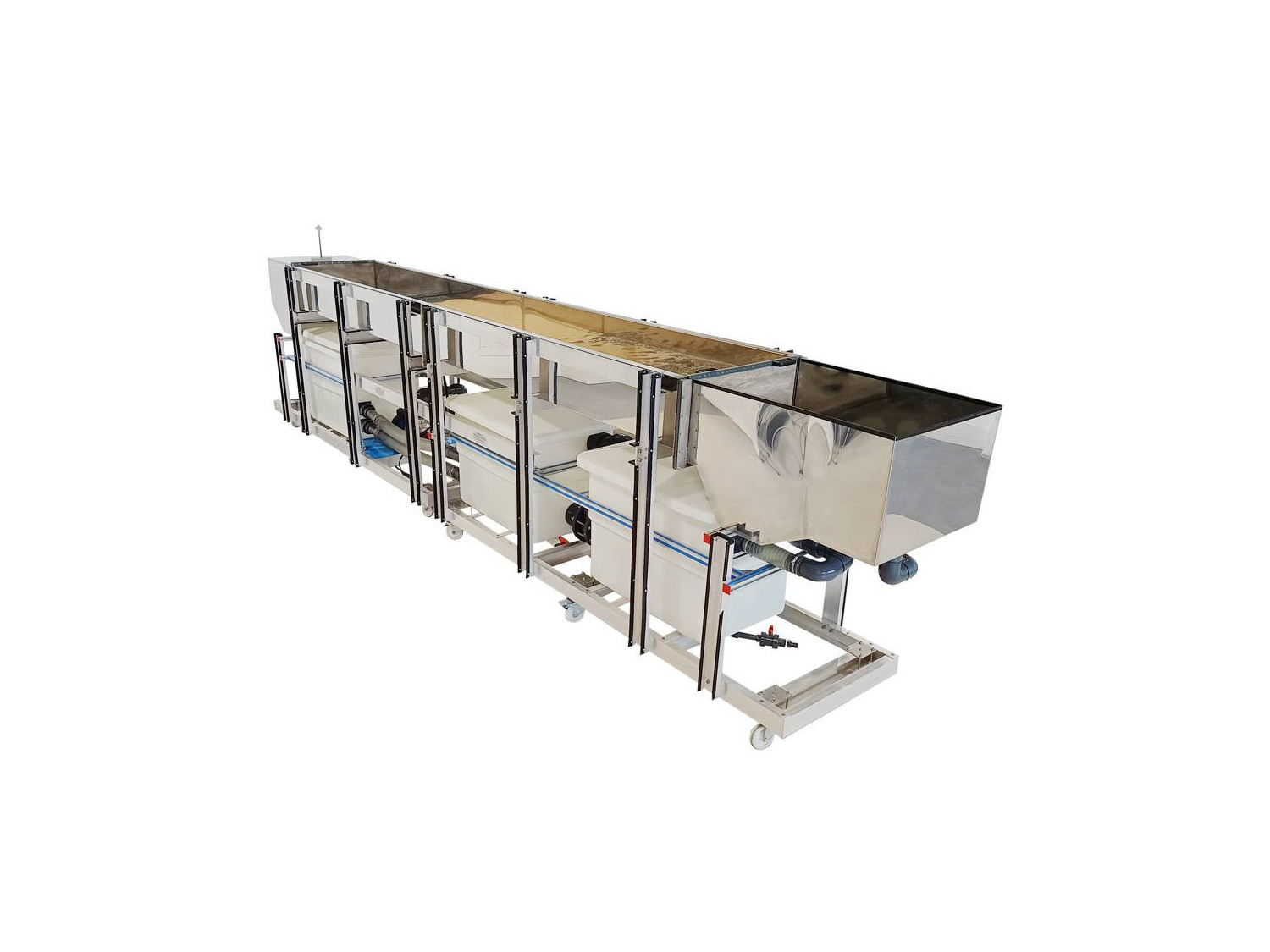

The Mobile Bed and Flow Visualization Unit (working section: 4000 x 610 mm), "HVFLM-4", may be used mainly in two study fields. The first one is the investigation of mobile beds, which are related to water courses and civil engineering structures. The second one is related to the visualization of the flow in two dimensions.

The HVFLM-4 unit consists of an horizontal channel through which a current of water flows slowly and at a constant depth. This channel allows to visualize the flow and the mobile bed in two dimensions as it has a large working surface (section: 4000 mm x 610 mmm). The upper part of this surface can be completely visualized during the practical exercises, without the need of assembling any accessory.

The position of different models and structures in the channel, where the flow circulates around them, allows to carry out studies of mobile bed and flow visualization in a simple way.

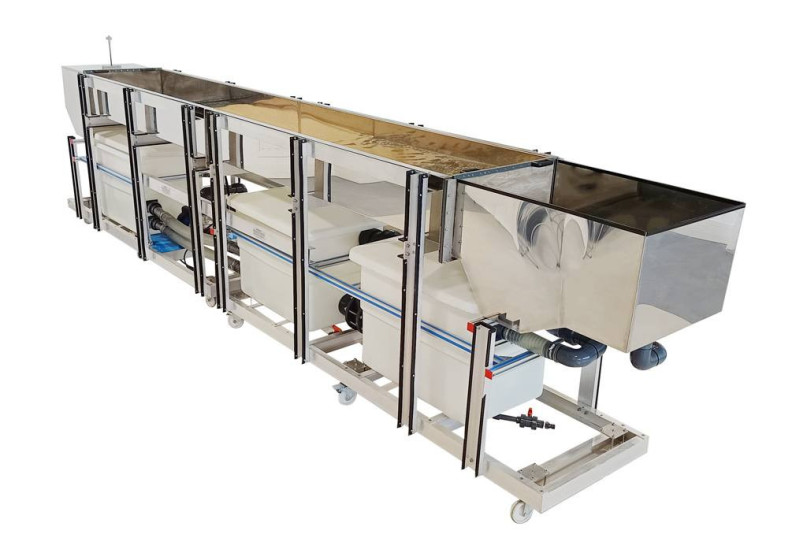

The unit is self-contained and it consists of an inlet tank with adjustable overshot, a channel with sand traps, a discharge tank, water storage tanks, a centrifugal pump, an electromagnetic flow meter and set of models. The unit includes the necessary instrumentation to measure the water level and the bed depth, formed by an instruments carrier and a gauge.

The practical exercises with this unit are carried out by using water and sand.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

  1. Observation of the flow around model engineering structures.
  2. Mobile bed experiments.
  3. Study of the meandering water courses characteristics.
  4. Visualization of the behaviour of boundary layers.
  5. Demonstration of boundary layer suction.
  6. Studies of erosion.
  7. Studies of deposition.
  8. Studies of velocity distribution in duct flow.
  9. Studies with engineering structures.
  10. Two dimensional flow visualization.
  11. Study of the hydraulic analogy to compressible flow.
