AEL-MGTC モーター、発電機、トランスフォーマーの構築アプリケーション

4.4.2.- 取り外し可能なモデル
MOTORS, GENERATORS AND TRANSFORMERS CONSTRUCTION APPLICATION - AEL-MGTC

革新的なシステム

The Motors, Generators and Transformers Construction Application, "AEL-MGTC" has been designed by EDIBON for theoretical and practical training in the field of electromechanical construction of electrical machines such as DC motors, AC motors, single-phase and three-phase transformers.

一般的な説明を表示

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア

関連ニュース

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
続きを読む
The Importance of Hands-On Training in Electricity for Universities and Companies
The Importance of Hands-On Training in Electricity for Universities and Companies
Electricity is a form of energy resulting from the movement of electrons through a conductor. This physical phenomenon is essential for the operation of a wide variety of devices and systems we use daily, from household appliances to complex industrial systems.
続きを読む
What is Industry 4.0?
What is Industry 4.0?
Today we are at the beginning of a new era, named ‘Industrie 4.0’. Let´s explain a little further the concept "Industrie 4.0"!
続きを読む

概要

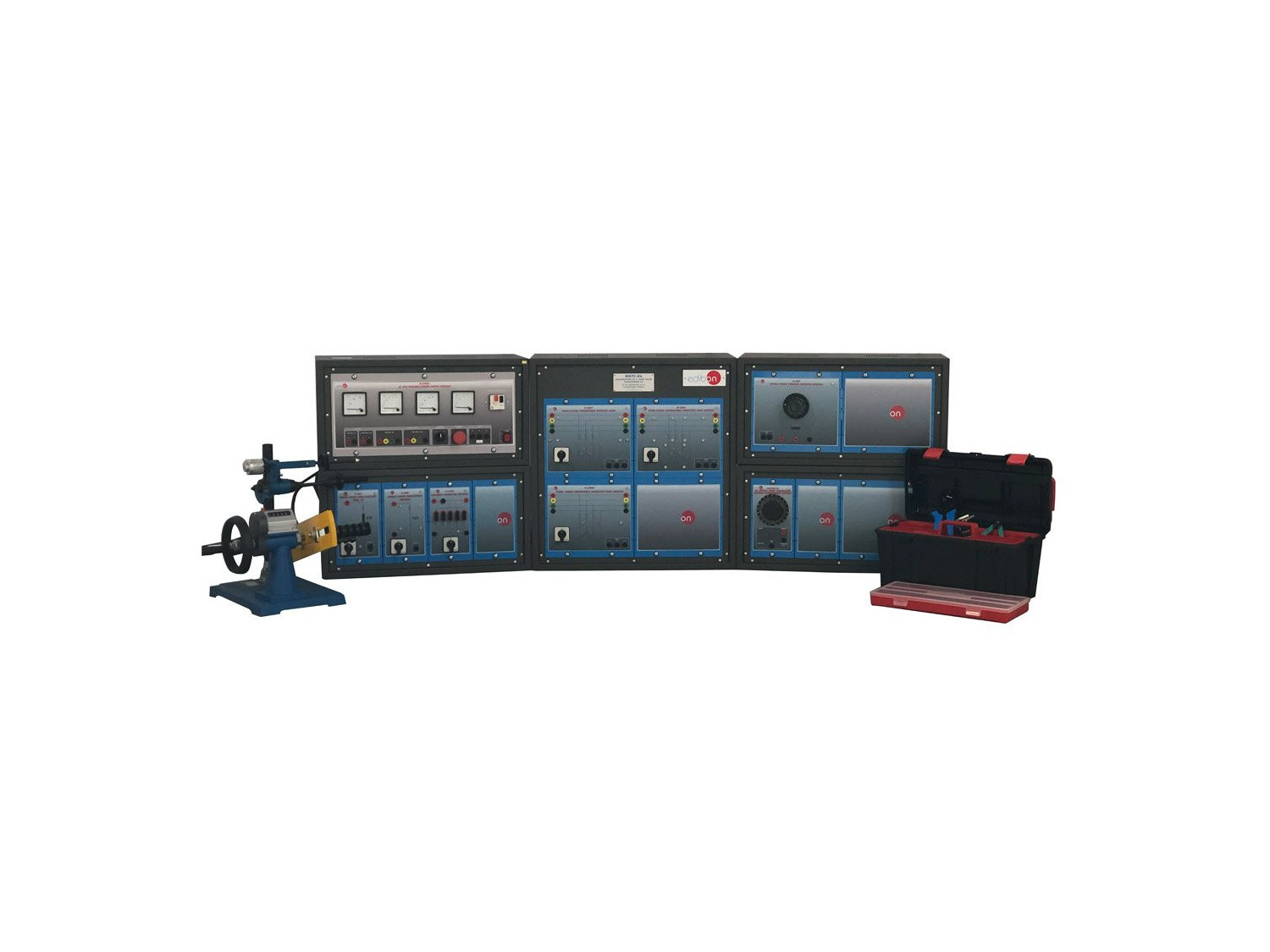

The Motors, Generators and Transformers Construction Application, "AEL-MGTC" has been designed by EDIBON for theoretical and practical training in the field of electromechanical construction of electrical machines such as DC motors, AC motors, single-phase and three-phase transformers.

This application offers various levels of training that will provide the user with essential knowledge and skills on the fundamental principles of the construction and commissioning of electric machines. For this purpose, this application includes a specific manual explaining the design, manufacture, construction and winding of electric motors, generators and transformers. A manual winding machine and different sizes of copper wire are included to perform winding practices on the motors and transformers acquired. The Manual Winding Machine for Motors and Transformers, "MWMT", has several molds for the construction of windings with different sizes. Once the windings have been constructed, the user will proceed to place them in the corresponding electrical machines and verify their operation.

This application provides a variable power supply, a multimeter for the verification of the electrical parameters of the machines, copper wire coils of different sizes and a toolbox for the assembly and construction of the acquired machines. In addition, a compass is provided for the verification of the proper functioning of the magnetic fields after the assembly of the windings. In this way, the user will be involved from the beginning in the design of the electrical machine, from the manufacturing of the windings to its final commissioning.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

  1. Verification of the N-VPS01 variable power supply.

Some possible practices with the MGTC-K1. Construction of a DC Motor-Generator Kit.

  1. Construction of the windings using a manual winding machine.
  2. Arrangement of the windings in the stator.
  3. Start-up of the DC Motor-Generator.
  4. Wiring of the DC electric motor.
  5. Change of direction of rotation of the DC machine.

Some possible practices with the MGTC-K2. Construction of a Three-Phase Asynchronous Motor of Squirrel Cage Kit.

  1. Construction of the windings using a manual winding machine.
  2. Placement of the windings in the stator.
  3. Commissioning of the Three-Phase Squirrel Cage Asynchronous Motor.
  4. Wiring of the Three-Phase Asynchronous Squirrel Cage Motor.

Some possible practices with the MGTC-K3. Construction of a Three-Phase Reluctance Motor Kit.

  1. Construction of the windings using a manual winding machine.
  2. Placement of the windings in the stator.
  3. Start-up of the Three-Phase Reluctance Motor.
  4. Wiring of the Three-Phase reluctance motor.

Some possible practices with the MGTC-K4 Construction of a Three-Phase Asynchronous Motor with Wound Rotor.

  1. Construction of the windings using a manual winding machine.
  2. Placement of the windings in the stator.
  3. Start-up of the Wound Rotor Three-Phase Asynchronous Motor.
  4. Wiring of the Wound Rotor Three-Phase Asynchronous Motor.

Some possible practices with the MGTC-K5. Construction of a Three-Phase Synchronous Motor.

  1. Construction of the windings using a manual winding machine.
  2. Placement of the windings in the stator.
  3. Start-up of the Three-Phase Synchronous Motor.
  4. Wiring of the Three-phase Synchronous Motor.

Some possible practices with the MGTC-K6. Construction of a Three-Phase Transformer Kit.

  1. Construction of the windings using a manual winding machine.
  2. Placement of the windings in the transformer core.
  3. Start-up of the Three-Phase transformer.
  4. Wiring of the Three-Phase transformer according to different configurations.
  5. Transformer ratio calculation according to different configurations.
  6. Voltage drop calculations with resistive, inductive and capacitive loads.

Some possible practices with the MGTC-K7. Construction of a Single-Phase Transformer Kit.

  1. Construction of the windings using a manual winding machine.
  2. Placement of the windings in the transformer core.
  3. Start-up of the Single-Phase transformer.
  4. Wiring of the Single-Phase transformer.
  5. Transformer Ratio Calculation.
  6. Voltage drop calculations with resistive, inductive and capacitive loads.
もっと見る

利用可能な類似の機器

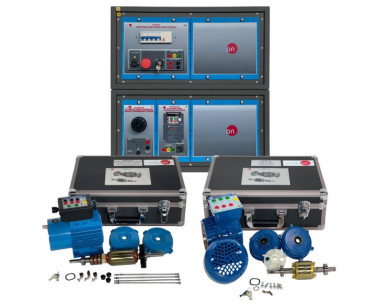

TRANSPARENT AND FUNCTIONAL MOTORS APPLICATION - AEL-FTM
