FME16 ペルトンタービン

8.1.7.- 油圧機械: タービン
PELTON TURBINE - FME16

Complete FME16 Unit

PELTON TURBINE - FME16

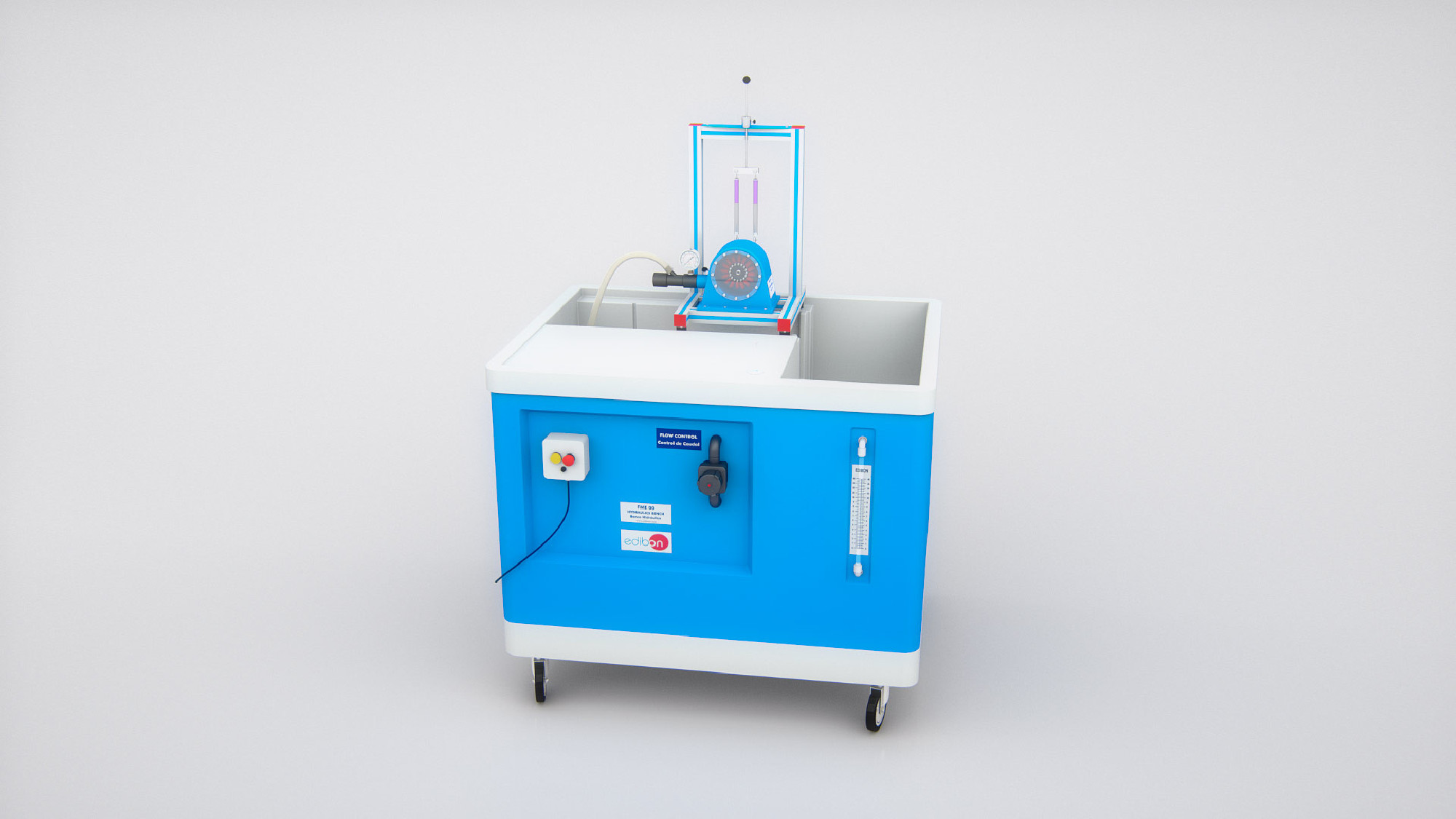

FME16 Unit with service unit FME00

PELTON TURBINE - FME16
PELTON TURBINE - FME16

革新的なシステム

The Pelton Turbine unit, "FME16", designed by EDIBON, allows the study of the characteristics of the tangential wheels or pressure turbines commonly used to produce electricity in hydroelectric plants to exploit large hydraulic jumps of low flow.

一般的な説明を表示

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア
MSAC

モジュラーな取得および制御システム

研究室

8TV
 技術教育・職業教育のための流体力学研究室
8HE
 高等教育用流体力学研究室
11PTC
 石油研修センター研究室

関連ニュース

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
続きを読む
Setting up at Faculté des Sciences at the Université d’Etat d’Haiti
Setting up at Faculté des Sciences at the Université d’Etat d’Haiti
We want to present our new installation in the Faculté des Sciences at the Université d’Etat d’Haiti, specifically in the Fluid Mechanics Department. There, we have installed many of our equipment, among which are: AFT, CF80/5 (with CFAS, CFFS, CFPLR, CFPR, CFRM, CFSDL, CFTP, CFTS, CFVD, CFVEN,...
続きを読む
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
続きを読む

概要

The Pelton Turbine unit, "FME16", designed by EDIBON, allows the study of the characteristics of the tangential wheels or pressure turbines commonly used to produce electricity in hydroelectric plants to exploit large hydraulic jumps of low flow.

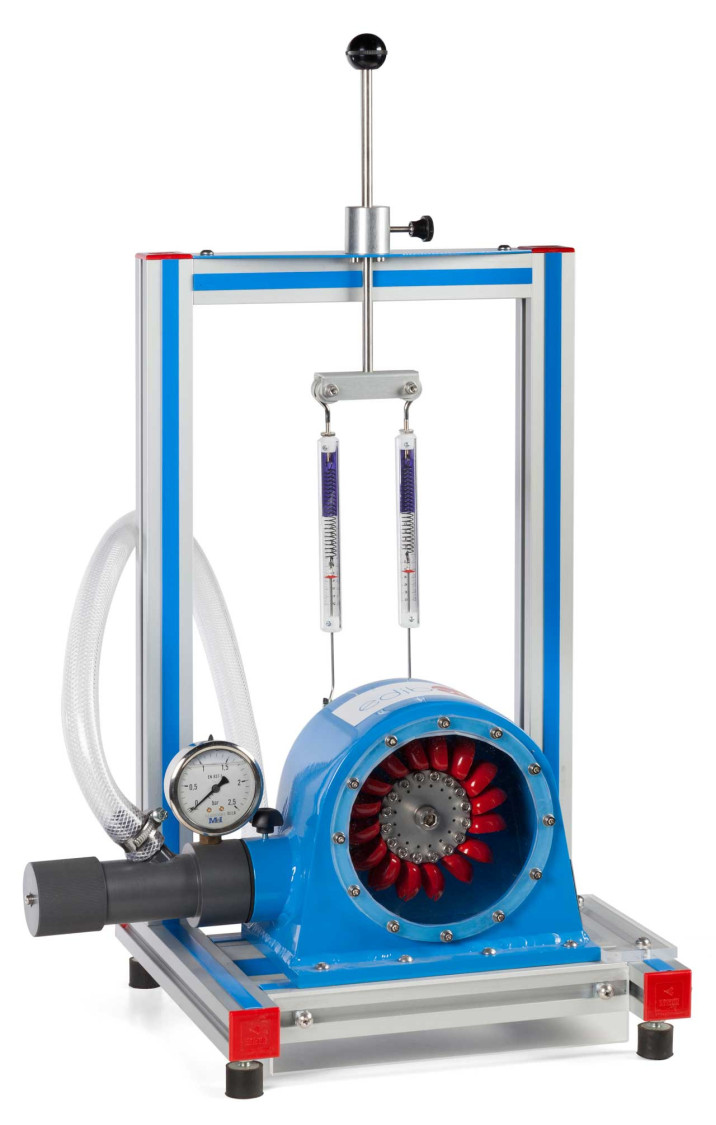

This unit comprises a miniature Pelton’s Turbine with a retractable needle valve that allows to adjust the flow.

The Pelton’s Turbine runner is clearly visible through the transparent cover of the turbine.

A manometer placed at the inlet of the turbine enables to measure the inlet pressure at that point (water discharge pressure).

A band brake, connected to two dynamometers allows varying the load supplied to the turbine by means of a connection device.

The turbine axis velocity is determined by an optic tachometer.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

  1. Determination of the operative characteristics of the Pelton Turbine.
  2. Determination of the operation mechanical curves.
  3. Determination of the operation hydraulic curves.
  4. Adimensionalization.
