PWP-PE Photovoltaic Energy Power Plant

5.2.- MICROGRIDS
PHOTOVOLTAIC ENERGY POWER PLANT - PWP-PE

革新的なシステム

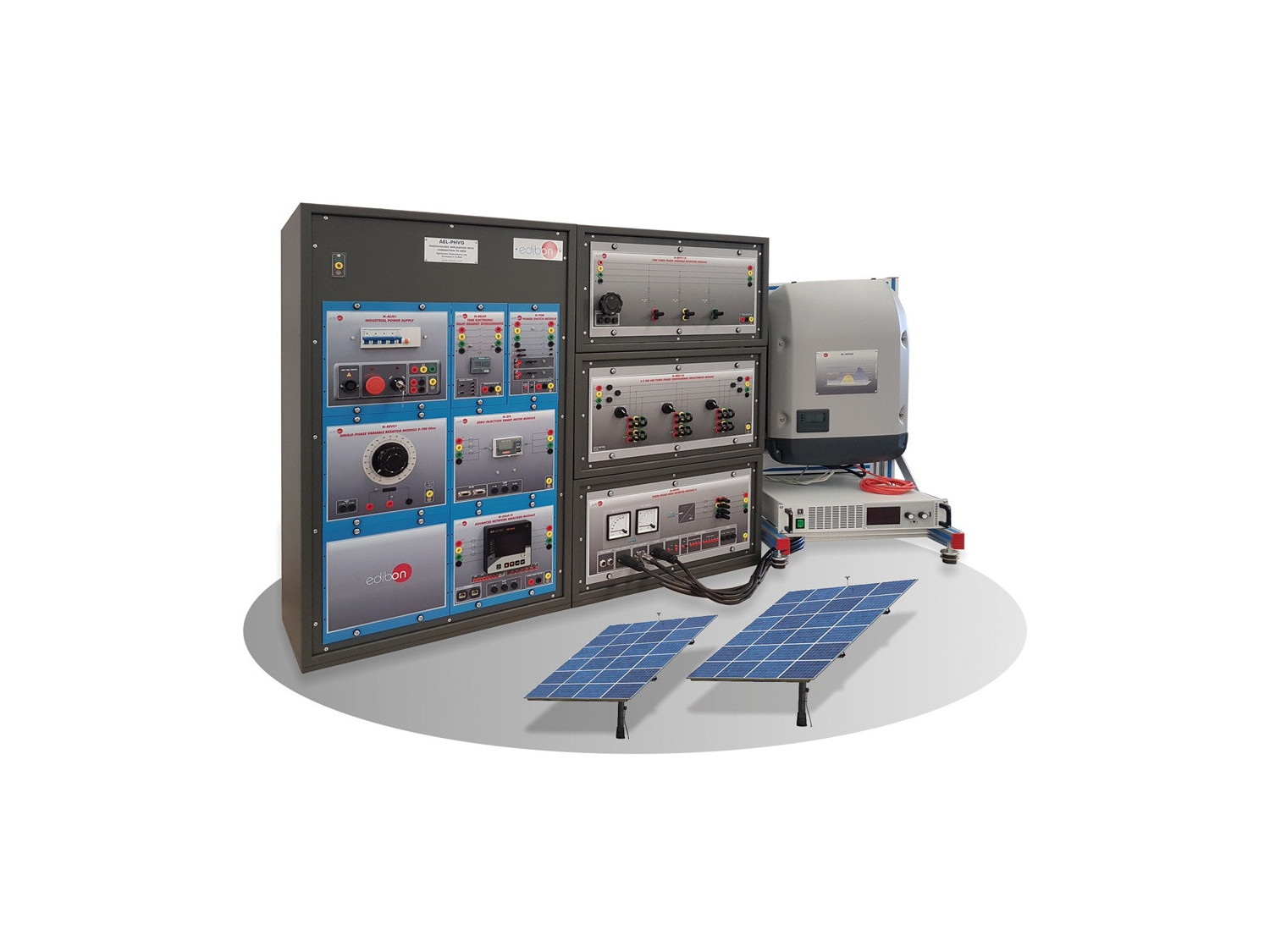

The purpose of this application is the study of photovoltaic power plants in the context of micro grids. It consists of a three-phase inverter fed with a photovoltaic panel array simulator.

一般的な説明を表示

関連ニュース

Laboratory supported by Official College of Technical Industrial Engineers (Spain)
Laboratory supported by Official College of Technical Industrial Engineers (Spain)
At EDIBON, we reaffirm our commitment to the advancement of clean and renewable energy, with a special focus on green hydrogen as a key driver for a more sustainable future. We are proud to have been selected to equip the first Green Hydrogen Laboratory in the Region of Murcia, a pioneering space...
続きを読む
Recycling and energy storage systems
Recycling and energy storage systems
The shift towards electric vehicles (EVs) has gained considerable momentum worldwide, promising a reduction in greenhouse gas emissions and a path to a more sustainable future. However, as the demand for EVs accelerates, so too does the need for large quantities of essential minerals, such as...
続きを読む
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
続きを読む

概要

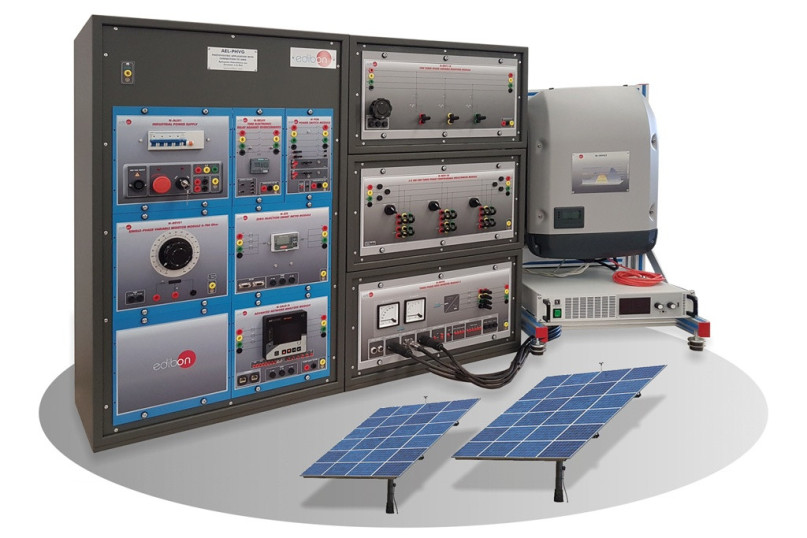

The purpose of this application is the study of photovoltaic power plants in the context of microgrids. It consists of a three-phase inverter fed with a photovoltaic panel array simulator. The user will be able to set the generation parameters and functions for the photovoltaic simulator according to the scernarios and conditions meant to be studied.

At the same time, the user will be able to study significant concepts about photovoltaic installations such as the MPPT characteristic (maximum power point tracking), the limitation of the inverter power (derating), the efficiency of the inverter or the reactive energy generation. This application includes a network analyzer to measure in real time the energy produced by the photovoltaic power plant.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

  1. Installation of photovoltaic power plants.
  2. Grid-connection of photovoltaic plants.
  3. Setting the P-V curves for power generation.
  4. Monitoring the power injection into the grid.
  5. Maximum power point tracking (MPPT).
  6. Limiting the inverter power (derating).
  7. Determining the inverter efficiency.
