AMT 導管ネットワーク設備（水力学ベンチFME00付）

8.8.- 流体配管システム

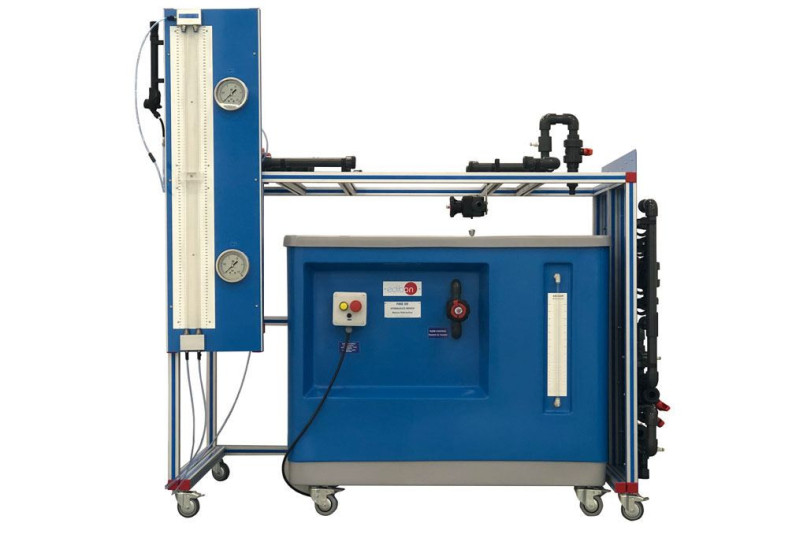

PIPE NETWORK UNIT, WITH HYDRAULICS BENCH (FME00) - AMT

革新的なシステム

The Pipe Network Unit, with Hydraulics Bench (FME00), "AMT", has been designed by EDIBON to enable different pipe network installations, measuring flow and pressure, and always using water as test fluid.

一般的な説明を表示

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア

関連ニュース

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
続きを読む
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
続きを読む

概要

The Pipe Network Unit, with Hydraulics Bench (FME00), "AMT", consists of a Pipe network, a lateral panel where all the elements to test are located and a hydraulics bench, which has all the elements and accessories required for the unit to work autonomously.

The valves that some of the elements have in order to form the different circuits are On-Off valves, necessary to distribute the flow along the net.

The unit has a system of anti-blockage pressure takings, located upstream and downstream of each element that is going to be tested. All of them have a quick and easy connection to the pressure measurement devices of the unit.

The unit includes an Hydraulics Bench (FME00) that has a volumetric measuring system, consisting of a two-level tank. The small one is used to measure low flows and the big one, to measure higher flows. A gauge, which consists of a scale and a transparent tube is connected to a bypass on the base of tank and gives an instantaneous measurement of the water level.

A centrifugal pump located inside the hydraulics bench is used to add energy to the fluid. The flow can be regulated by a control valve located on the hydraulics bench.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

  1. Head losses in a PVC pipe.
  2. Head losses in an aluminum pipe.
  3. Head losses in a methacrylate pipe.
  4. Study of head losses in pipes of the same material.
  5. Study of head losses in function of the material.
  6. Friction coefficient in a PVC pipe.
  7. Friction coefficient in an aluminum pipe.
  8. Friction coefficient in a methacrylate pipe.
  9. Study of the friction coefficient in function of the material.
  10. Study of the friction coefficient in function of the diameter.
  11. Parallel network configuration for pipes of same material and different diameter.
  12. Parallel network configuration for pipes of different material and same diameter.
  13. Series network configuration for pipes of different material and different diameter.
  14. Series network configuration for pipes of different material and same diameter.

より実用的な練習をして、ユニットを完成させる

  1. Filling the manometers.
