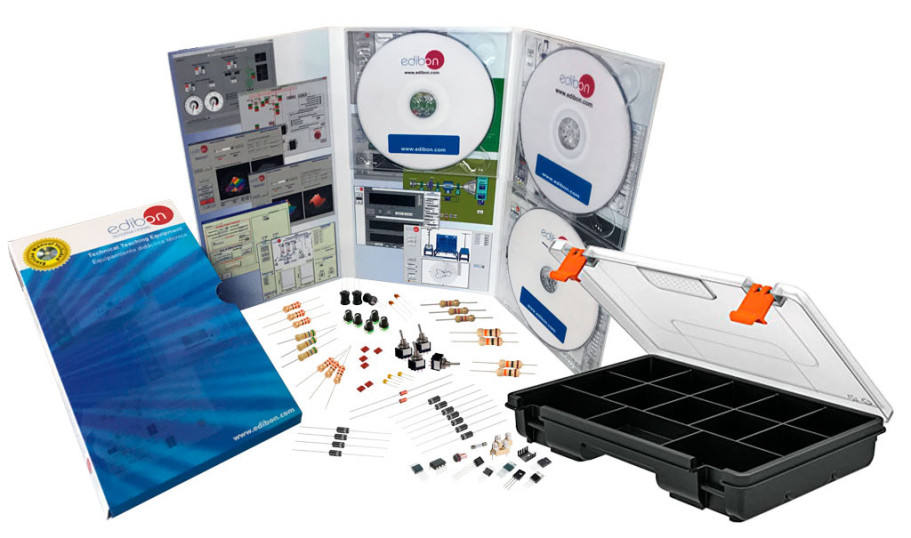

POWER SUPPLIES KIT - M5/KIT

革新的なシステム

With the Power Supplies Kit "M5/KIT", designed by EDIBON, symmetrical voltage regulators, operation of fixed, symmetrical and switched-mode power supplies as well as rectification (conversion of an AC voltage to a DC voltage) can be studied.

一般的な説明を表示

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア

研究室

2TV
 技術教育・職業教育のための電子実験室

関連ニュース

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
続きを読む
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
続きを読む

概要

With the Power Supplies Kit "M5/KIT", designed by EDIBON, symmetrical voltage regulators, operation of fixed, symmetrical and switched-mode power supplies as well as rectification (conversion of an AC voltage to a DC voltage) can be studied.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

Rectification:

  1. Rectification.
  2. Bridge rectifier.
  3. Theoretical/practical exercises.

Fixed voltage sources:

  1. Power supply with the Zener diode.
  2. Stabilization through Zener and Transistor.
  3. Faults study in "Stabilization through Zener and Transistor".
  4. Protection against overcurrents.
  5. Protection against overvoltages.
  6. Faults study of "Protection against overcurrents".
  7. Theoretical/practical exercises.

Symmetrical voltage power sources:

  1. Symmetrical source: 78XX regulator.
  2. Symmetrical source: 79XX regulator.
  3. Theoretical/practical exercises.

Voltage regulators with integrated circuits:

  1. Adjustable regulator: LM317.
  2. Faults study in adjustable LM317 regulator.
  3. Adjustable L200 regulator.
  4. Faults study in adjustable L200 regulator.
  5. Theoretical/practical exercises.

Introduction to switched power supplies:

  1. Switching technique.
  2. Switching technique. PWM.
  3. Switching technique. Boost.
  4. Theoretical/practical exercises.
もっと見る

より実用的な練習をして、ユニットを完成させる

  1. Voltage Feedback.
  2. DC-DC converter.
  3. Several other exercises can be done and designed by the user.
