PROTECTION RELAYS TEST APPLICATION - ERP

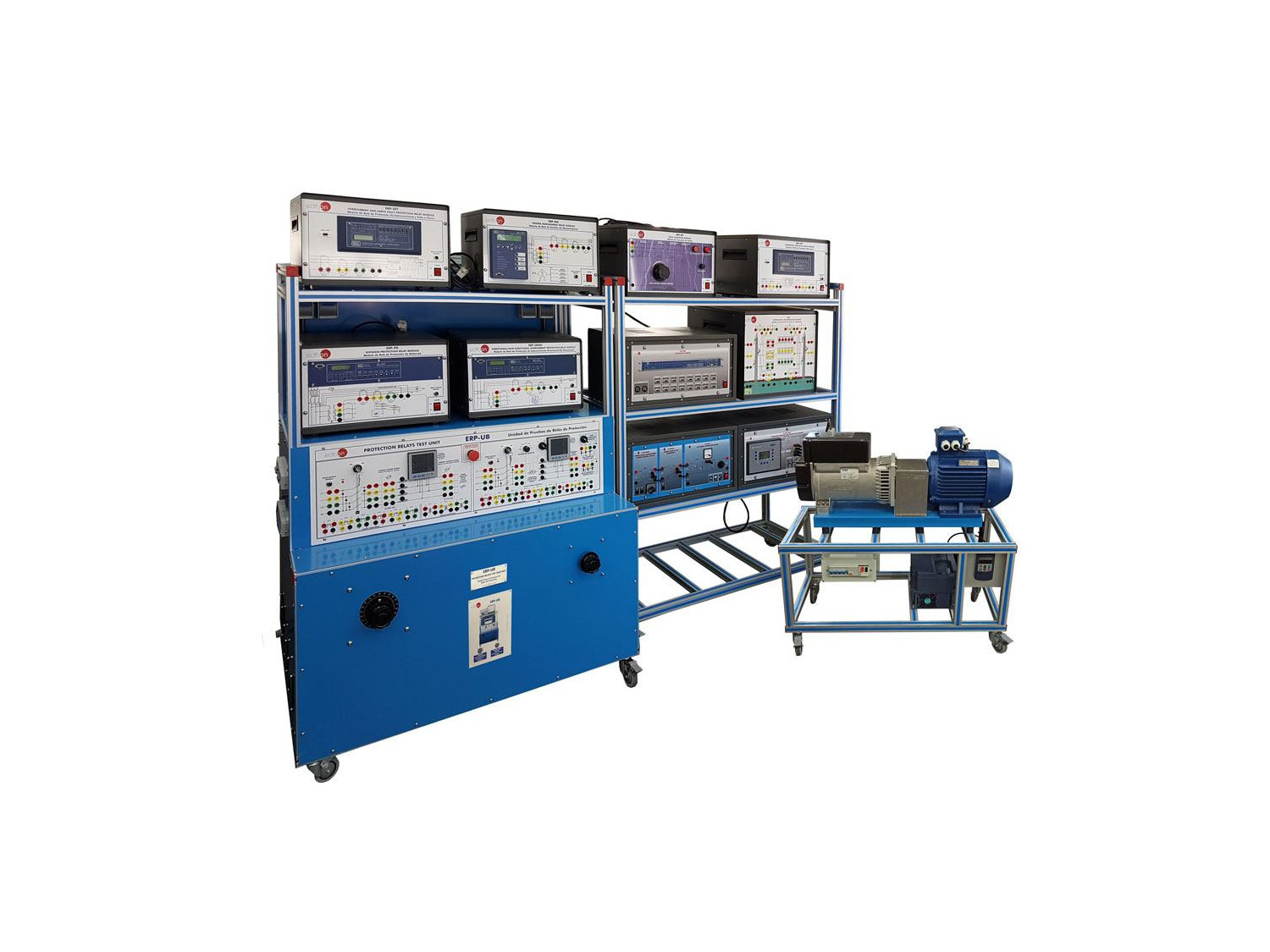

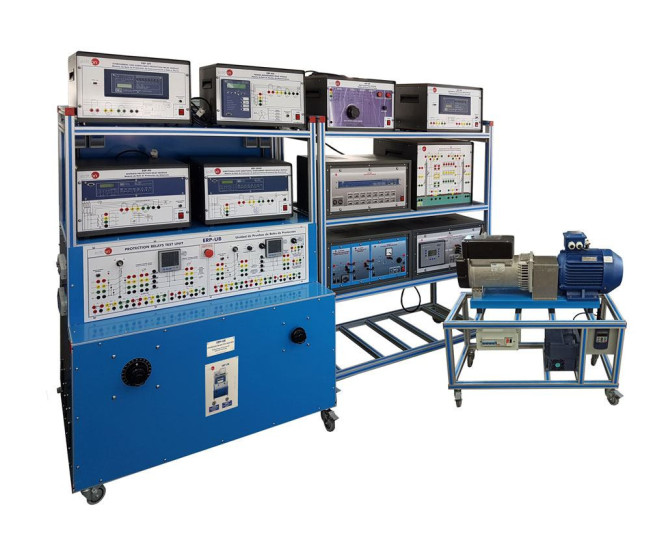

Configuration example of Protection Relays Test Base Unit, “ERP-UB”, with required and recommended elements

革新的なシステム

The Protection Relays Test Aplication, "ERP", is one of the most advanced and safe equipment in the market for studying the operation of protection relays used in real electrical substations.

一般的な説明を表示

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア
