We are very pleased that the number of universities provided with EDIBON equipment is increasing exponentially worldwide. On this occasion, our engineers have moved to Université Euromed de Fès, Morocco, to install the Recirculating Air Conditioning Unit. The #TARB allows the engineering students...
TARB 再循環空調実験装置
革新的なシステム
The objective of the Recirculating Air Conditioning Unit, "TARB", is to introduce the student into the complex world of air conditioning systems, as well as studying and determining the optimal parameters for the operation of the unit in function of the environmental requirements (humidity, heat, temperature and cooling, etc.).
関連ニュース
概要

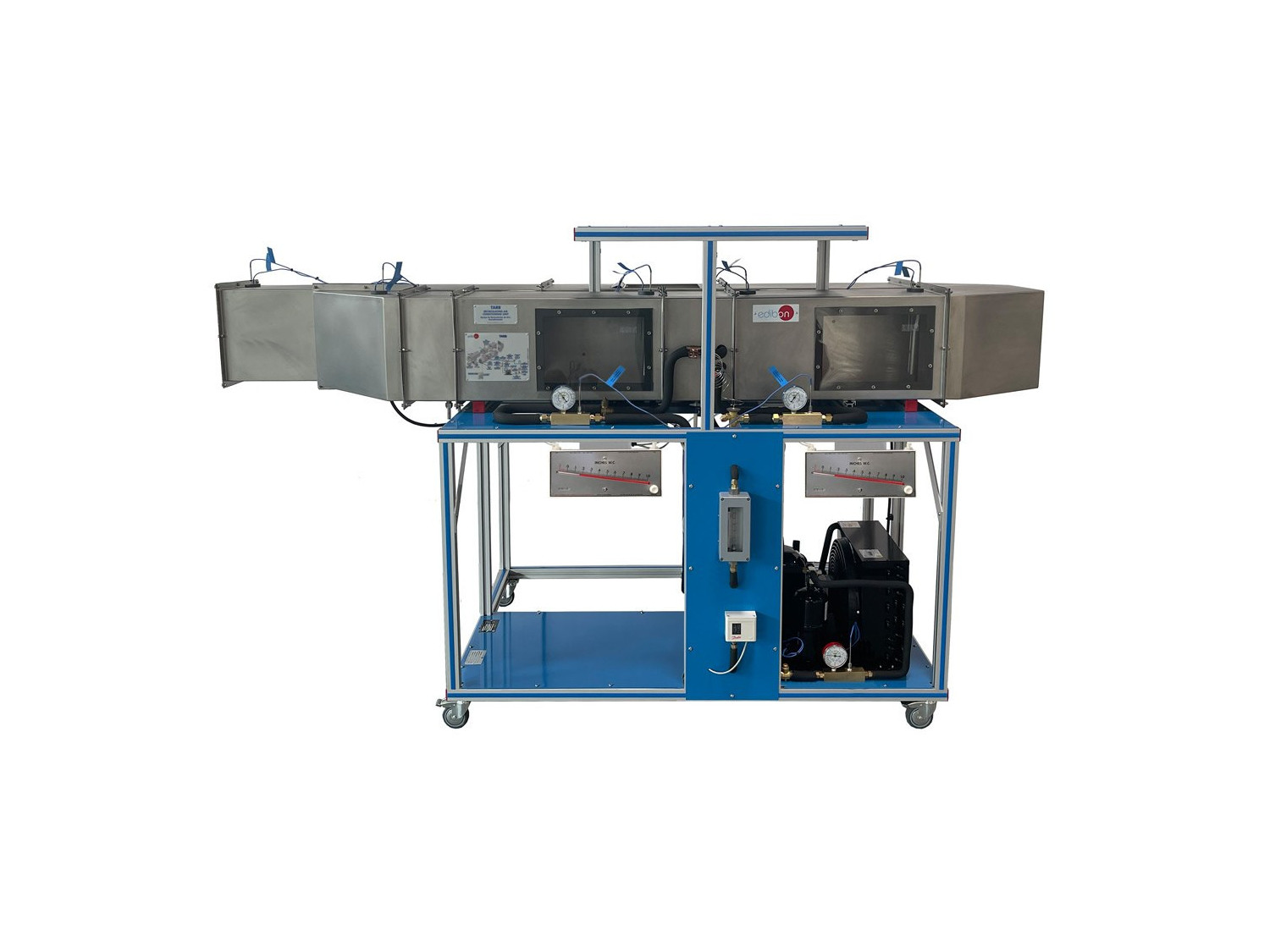

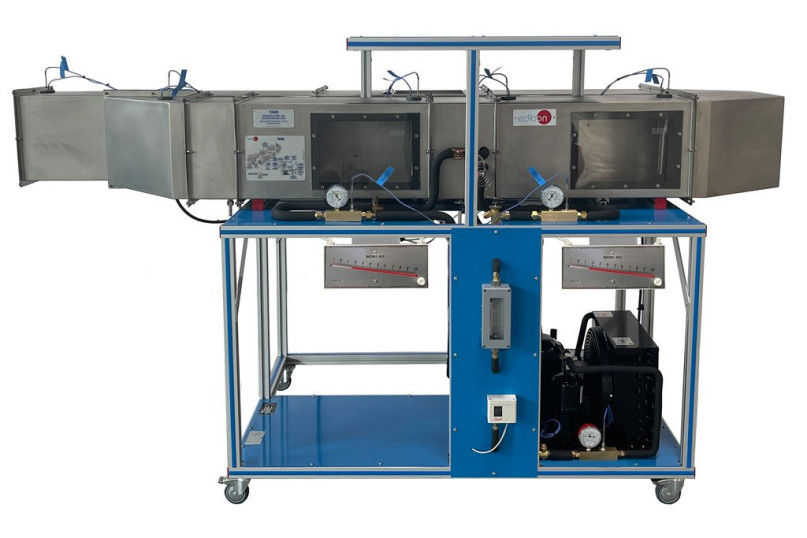

The Recirculating Air Conditioning Unit, "TARB", has been designed to study both the changes in the air conditions and the refrigeration circuit. For that purpose, temperature sensors, pressure meters and flow meters have been strategically located, allowing to study the refrigeration cycle and to quantify the capacity of the evaporation and condensation unit.
It can work with fresh air and recycled air.
The unit basically consists of a testing tunnel made of stainless steel, which has four windows (sight glasses). Inside there is an axial fan, two heating elements, one at the inlet of the evaporation unit of 2000 W and other at the outlet of 1000 W. There are also five hygrometers strategically located along the tunnel. These hygrometers consist of two temperature sensors (wet and dry bulb).
演習と指導の慣行
マニュアルに含まれるガイド付き実習
- Demonstration of the processes of air heating, cooling, humidification, de-humidification, recirculating and mixing.
- Efficiency determination of the preheating element.
- Preheating effect in an air conditioning installation.
- Dehumidification process study.
- Mass balance in the evaporator.
- Energy balance in the evaporator.
- Re-heat effect.
- Experimental determination of the air specific heating capacity.
- Study of de-humidification in a recycling process.
より実用的な練習をして、ユニットを完成させる
- Psychrometric chart.
- Usage of Psychrometric chart.
- Determination of the air flow.
- Example of the air properties determination.
- Properties of the refrigerant R-513a.
- Enthalpy-Pressure diagram for the refrigerant R-513a.
- Demonstration of recirculating and the adiabatic mixing of two air streams at different states.
- Obtaining of the steam generator efficiency curve.
- Energy balance in the steam generator.
利用可能な類似の機器
9.2.- 暖房、 換気、 空調、 温水
TAAC
The Computer Controlled Air Conditioning Laboratory Unit, "TAAC", has been designed to study the change of the air conditions and the refrigeration circuit.The unit consists of a testing tunnel made of stainless steel, in which there have...
9.2.- 暖房、 換気、 空調、 温水
TARC
コンピューター制御再循環空調実験装置
The Computer Controlled Recirculating Air Conditioning Unit, "TARC", has been designed to study both the changes in the air conditions and the refrigeration circuit. For that purpose, temperature sensors, pressure sensors and flow meters have been...
9.2.- 暖房、 換気、 空調、 温水
TAAB
空調実験室装置
The Air Conditioning Laboratory Unit, "TAAB", has been designed to study the change of the air conditions and the refrigeration circuit. The unit consists of a testing tunnel made in stainless steel, in which there have installed two windows....
9.2.- 暖房、 換気、 空調、 温水
TACC
コンピューター制御温度調整チャンバー・水冷却装置付空調システム
The Computer Controlled Air Conditioning Unit with Climatic Chamber and Water Chiller, "TACC", is an actual air conditioning system with climatic chamber suitable for people and allows the study of the influence of different operation modes of the...
補完的な機器
9.2.- 暖房、 換気、 空調、 温水
EACC
コンピューター制御給湯加熱装置指導用装置
The main element of the Computer Controlled Hot Water Production and Heating Teaching Unit, "EACC", is the boiler. Its function is the heating of the water that will flow through the other elements transferring its heat. It is a low temperature...
5.3.7.- バイオ燃料
EBMC
コンピューター制御バイオマスプロセス実験装置
The main element of the unit is the biomass boiler, which will heat the water that will flow through the other components transferring its heat.The boiler is a biomass boiler of 16 kW that works with pellet and other granulated fuels. The body of...
5.3.7.- バイオ燃料
EBMB
バイオマスプロセス実験装置
The main element of the unit is the biomass boiler, which will heat the water that will flow through the other components transferring its heat.The boiler is a biomass boiler of 16 kW that works with pellet and other granulated fuels. The body of...
9.2.- 暖房、 換気、 空調、 温水
TEHSC

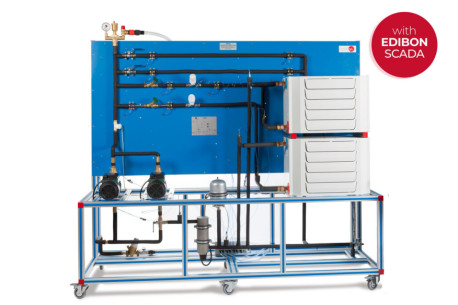

Computer Controlled Unit to Study the Efficiency of a Heating System
The Computer Controlled Unit to Study the Efficiency of a Heating System, "TEHSC",designed by EDIBON allows for studying and analyzing a closed heating system made upof pipes with different diameter and fittings normally used in real heating...
9.2.- 暖房、 換気、 空調、 温水
WHT

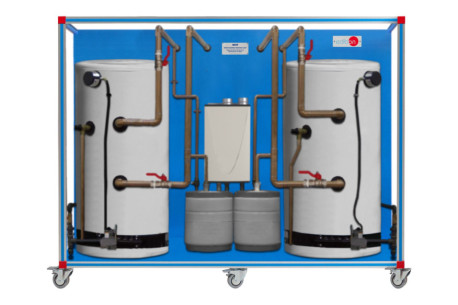

Water Heaters Training Unit
