RISING FILM EVAPORATOR - EPAB

Unit: EPAB. Rising Film Evaporator.

革新的なシステム

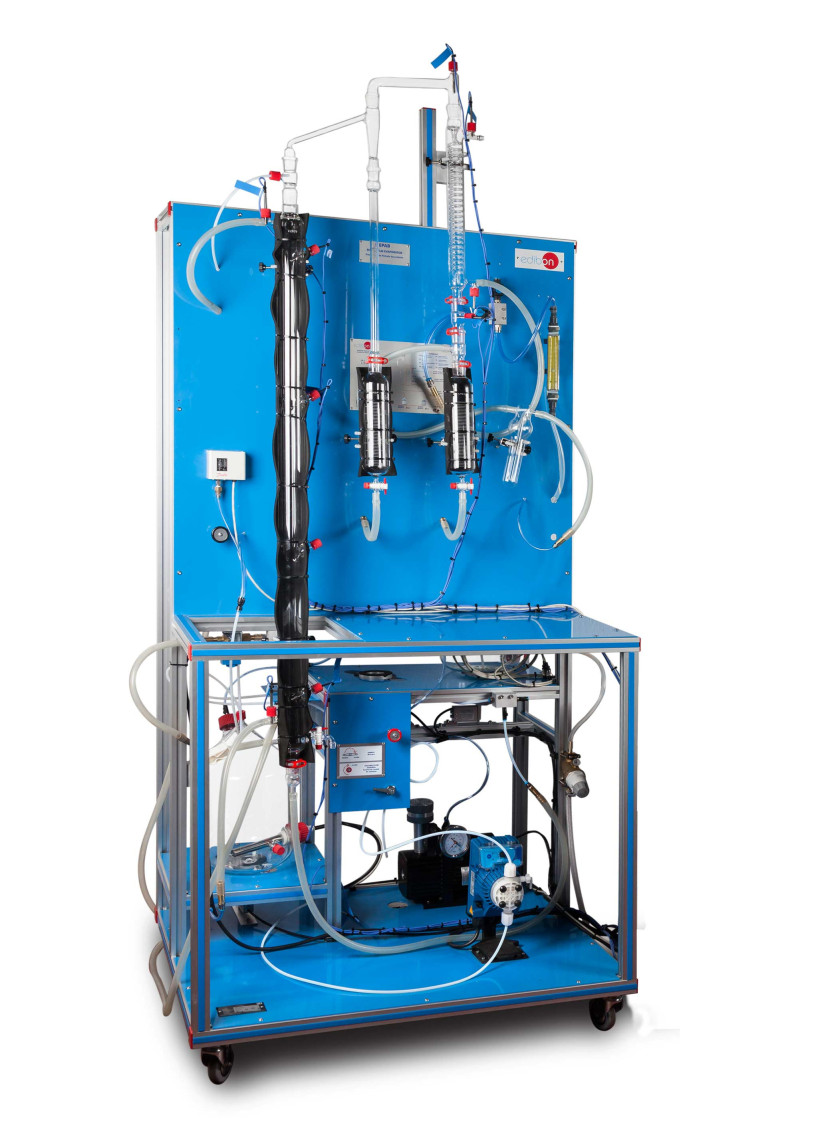

The Rising Film Evaporator, "EPAB", has been designed by EDIBON to study the operating processes of a rising film evaporator. It allows the monitoring of all the variables for a complete study of the process according to the working conditions and to investigate the effects of the variation of process parameters such as: vacuum, temperature, flow, etc. in the rising film evaporation.

一般的な説明を表示

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア

関連ニュース

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
続きを読む
Second-generation biofuels: the sustainable future at EDIBON
Second-generation biofuels: the sustainable future at EDIBON
In a world where energy demand continues to rise and non-renewable resources are rapidly depleting, the need for sustainable, environmentally friendly solutions has never been more urgent. The circular economy and the use of organic biomass to produce biofuels are emerging as key answers to...
続きを読む

概要

The objective of evaporation is to concentrate a non-volatile solute, carrying out the elimination of a volatile compound. Water is the volatile compound used in most evaporations.

Basically, the unit consists of the following circuits:

  • The feed circuit that consists on a feed pump that introduces the product in a double jacket column, which has temperature sensors. The product leaves the tank through a cyclone placed at the output of the column and it is collected in a 500 ml graduated vessel. The vessel is also connected to a 10 l tank for the storage of the concentrated product. This last tank is connected to the feed tank for its recirculation.
  • The distillation circuit starts at the top of the column, where a joint with a pressure meter has been assembled. It is also connected to the cyclone to separate the concentrated product and the distilled one that goes through a spiral condenser. The distilled product is stored in a graduated vessel that is connected to a 10 l collection tank. This last one is connected to the feed tank for its recirculation in a continuous process.
  • The steam circuit, introduced in the external jacket of the column, contains a pressure meter for the control of the temperature of steam. This meter is connected to a high-pressure cutout control that opens or closes a control electrovalve for the steam supply.
  • The vacuum circuit consists on a vacuum pump, one trap placed at the output of the condenser and other trap placed at the output of the cyclone.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

  1. Determination of the capacity of the evaporator.
  2. Study of the capacity of the evaporator in function of the work conditions.
  3. Study of the relation between condensed product and evaporated product.
  4. Verification of the mass balance over all system.
  5. Study of the mass balance of the solute.
  6. Verification of the mass balance of the water.
  7. Determination of the concentration of a sugared solution.
  8. Calculate the enthalpy of the volatile vapours.
  9. Calculate the mass of steam is used by means of an energy balance calculation.
  10. Determination the economy of evaporator.
  11. Energy balance of the tubular condenser.
  12. Determination of the heat transfer global coefficient.
  13. Determination of the C coefficient for a tubular condenser.
  14. Investigation of effect of varying process parameters such as: vacuum, flow rate, temperature, recycle rate.
  15. Fruit juices and vegetable extracts concentration.
  16. Concentrated milk obtaining.
  17. Determination of the efficiency of the steam generator.
