MDU-SSCP ポンプキャビテーションセット

7.4.3.- 設置および保守の慣行

革新的なシステム

The Set to Study Cavitation in Pumps, "MDU-SSCP", allows to produce the cavitation phenomenon and study its vibrational response.

一般的な説明を表示

カタログ

コンテストの仕様

概要

Pump cavitation is produced when steam cavities are created within a fluid in which forces act responding to the pressure differences.

Cavitation causes noise, damage to components and loss of performance.

The Set to Study Cavitation in Pumps, "MDU-SSCP", allows to produce the cavitation phenomenon and study its vibrational response.

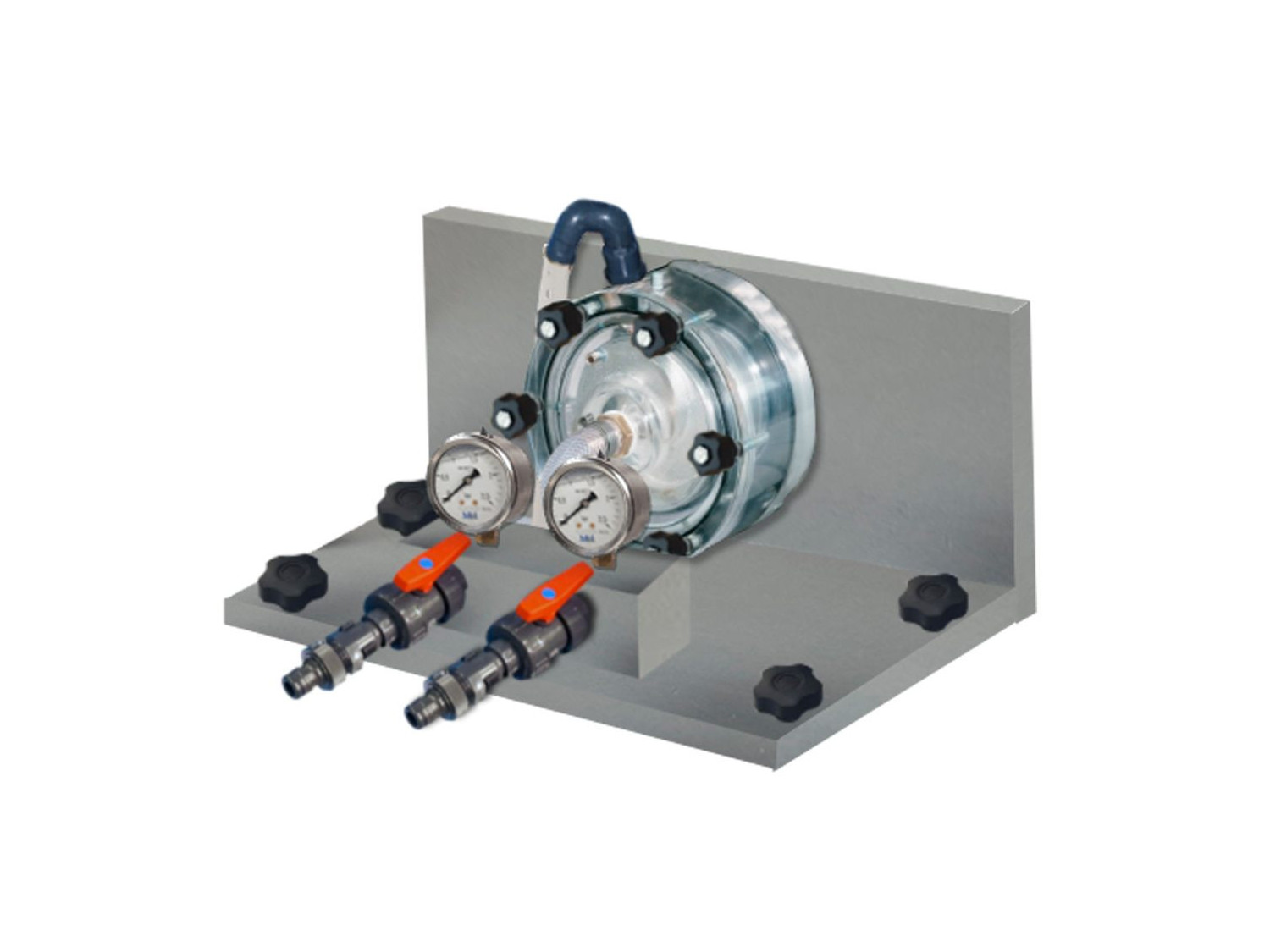

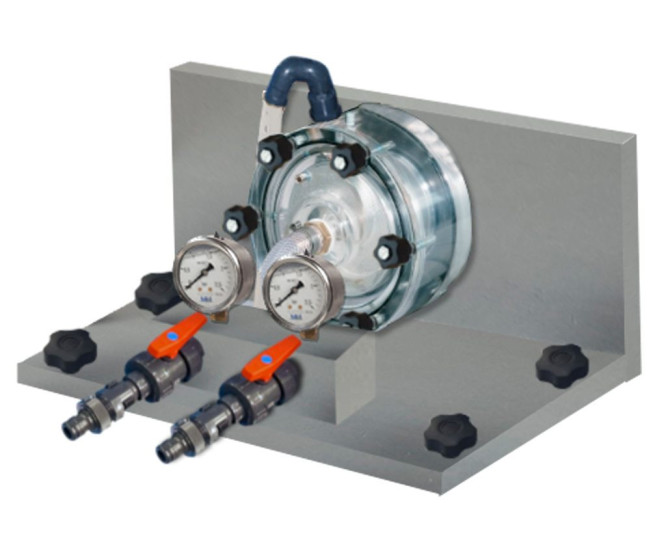

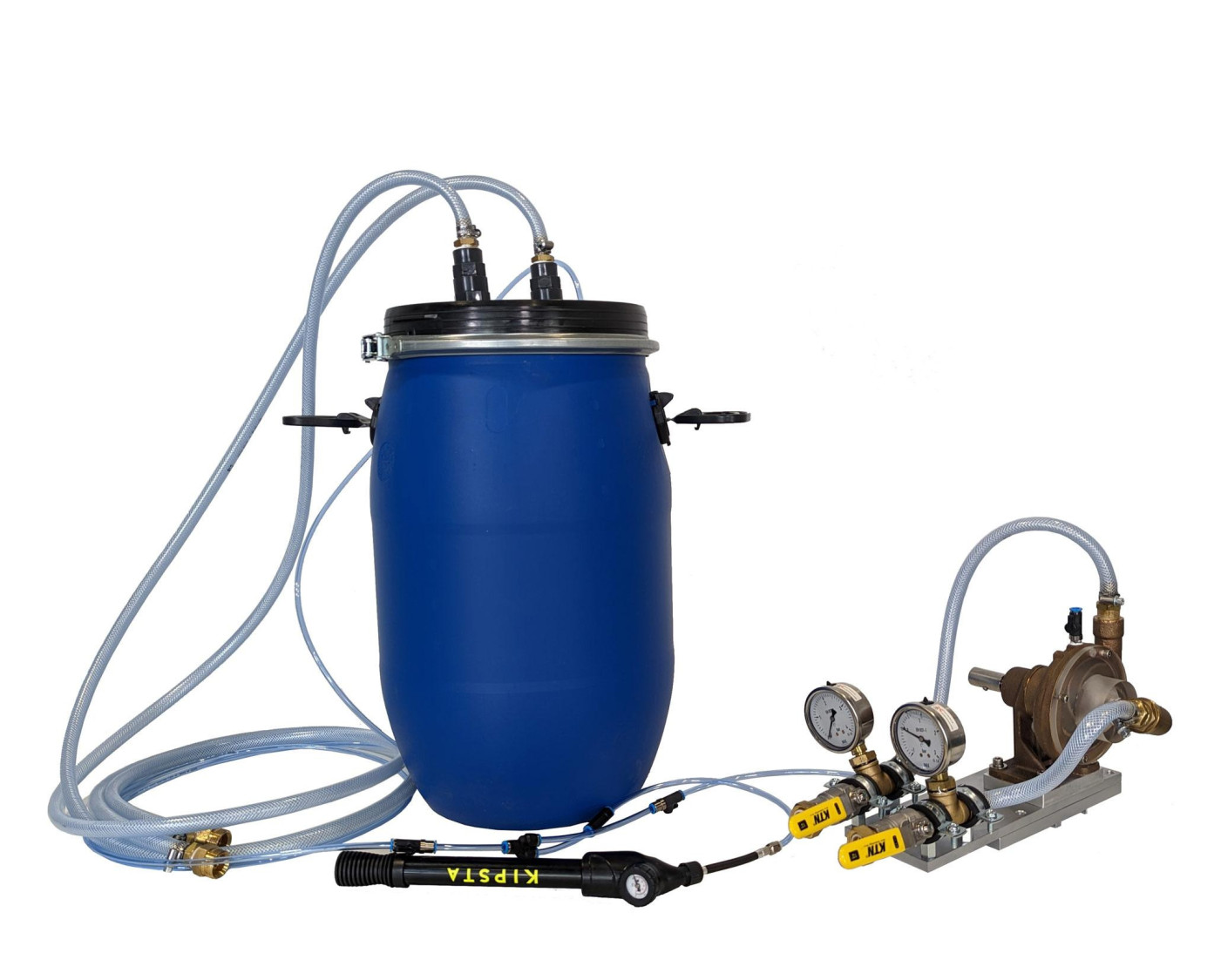

The Set to Study Cavitation in Pumps, "MDU-SSCP", consists of a single-stage centrifugal pump connected to flexible tubes with a tank. It is possible to adjust different operating conditions with valves and manometers. Furthermore, it is possible to observe the inside of a pump in operation through the plastic casing.

The pump can be driven directly through an elastic coupling or the Set of Belt Drive, "MDU-SBD".
