FME32 静止ピトー管

8.1.2.- 測定

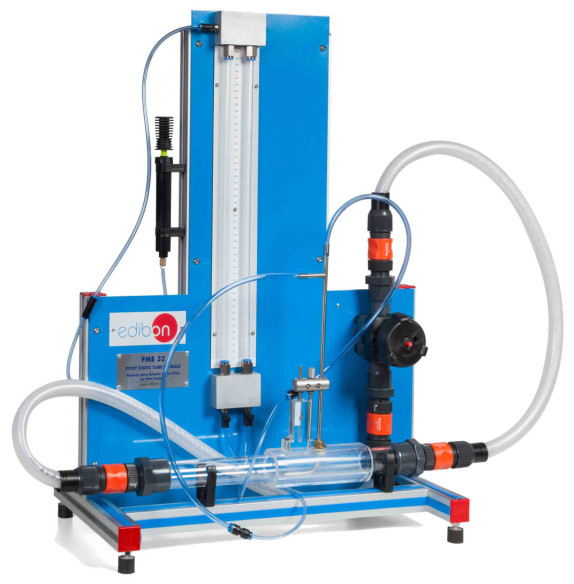

Complete FME32 Unit

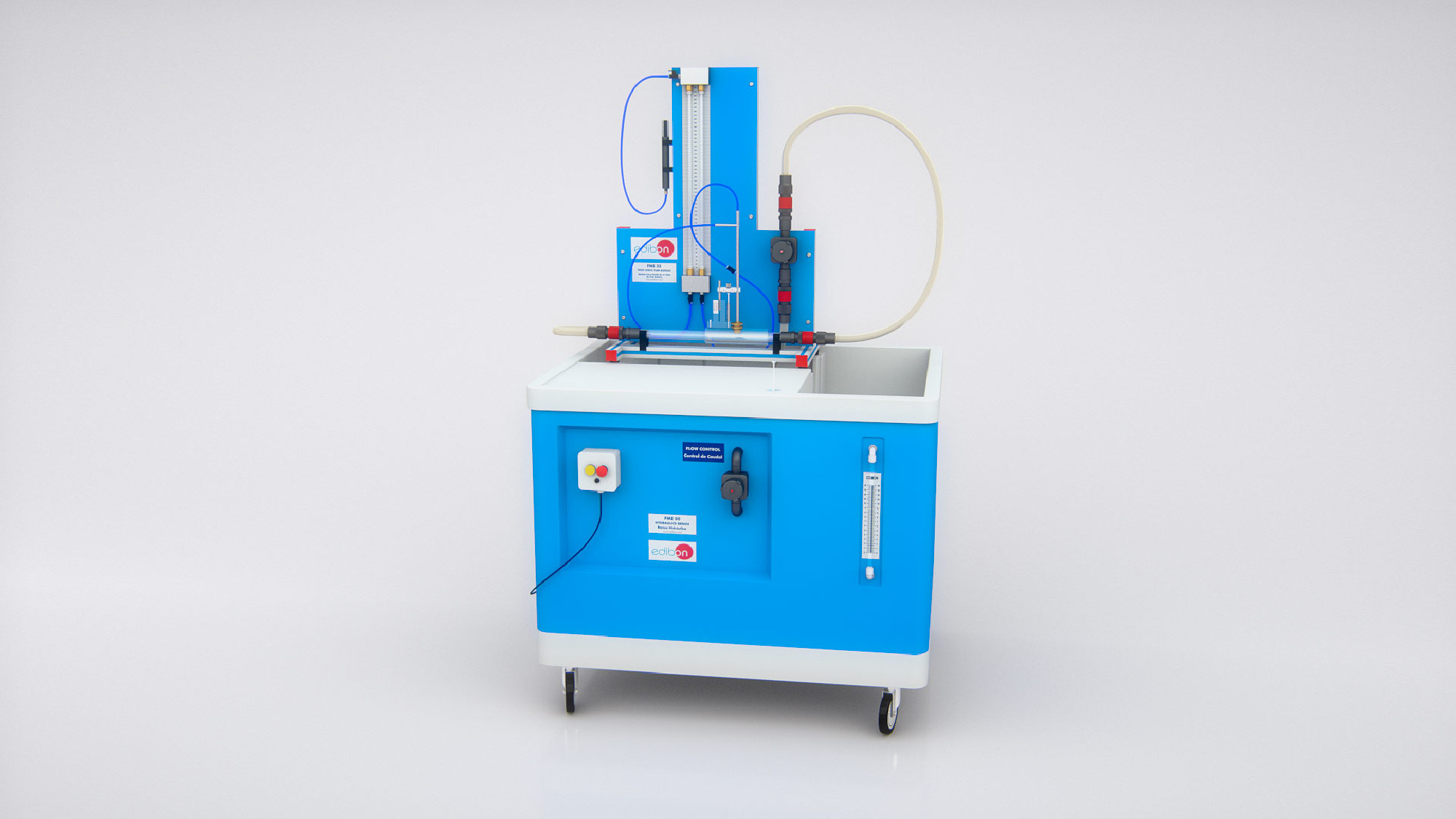

FME32 Unit with service unit FME00

革新的なシステム

The Static Pitot Tube, "FME32", designed by EDIBON, the change in flow speed within a tube can be determined.

一般的な説明を表示

カタログ

コンテストの仕様

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア

MSAC

モジュラーな取得および制御システム

研究室

8TV

技術教育・職業教育のための流体力学研究室

8HE

高等教育用流体力学研究室

概要

The Static Pitot Tube, "FME32", designed by EDIBON, the change in flow speed within a tube can be determined.

The Pitot static tube can be moved across the whole cross-section of the tube, and thus to measure the pressure profile.

This tube is connected to manometers via hoses.

The position of the measuring head relative to the bottom edge of the tube can be measured on a scale.

The water supply can come from the Hydraulics Bench (FME00) or from the Basic Hydraulic Feed System (FME00/B).

演習と指導の慣行

マニュアルに含まれるガイド付き実習

Study of the function of a pitot static tube.
To use a pitot static tube.
Determination of tube flow speed profiles.
Demonstration that the flow speed is proportional to the pressure difference between the total pressure and the static pressure.
Error determination in flow measurements using the Pitot tube as measurement instrument.
Factor Cd determination in the Pitot tube.
