UNDERGROUND TRANSMISSION LINES APPLICATION - AEL-TI-04

革新的なシステム

The Underground Transmission Lines Application, "AEL-TI-04", has been designed to study the most important characteristics of underground transmission lines such as critical length, capacitive, characteristic impedance, energy losses, etc.

一般的な説明を表示

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア

関連ニュース

Laboratory supported by Official College of Technical Industrial Engineers (Spain)
Laboratory supported by Official College of Technical Industrial Engineers (Spain)
At EDIBON, we reaffirm our commitment to the advancement of clean and renewable energy, with a special focus on green hydrogen as a key driver for a more sustainable future. We are proud to have been selected to equip the first Green Hydrogen Laboratory in the Region of Murcia, a pioneering space...
続きを読む
Recycling and energy storage systems
Recycling and energy storage systems
The shift towards electric vehicles (EVs) has gained considerable momentum worldwide, promising a reduction in greenhouse gas emissions and a path to a more sustainable future. However, as the demand for EVs accelerates, so too does the need for large quantities of essential minerals, such as...
続きを読む
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
続きを読む
Setting up in Papua New Guinea
Setting up in Papua New Guinea
We have traveled to Oceania to make an installation in Papua New Guinea. There we have installed our Analysis of Three-phase Power Lines Application, (AEL-TI-01), our Distribution Transfomer with Motor Regulation Application (AEL-TI-02), Arc Suppression Coil Application (AEL-TI- 03), Underground...
続きを読む
Setting up at Béjaia University
Setting up at Béjaia University
We have traveled to the Béjaia University to install several of our equipment in the areas of Electrical Engineering and Heat Transfer.
続きを読む
SMART GRID. What is about?
SMART GRID. What is about?
With the new smart bidirectional meters, all protection and control devices and the wide use of Internet, the grid has become an intelligent (smart) grid.
続きを読む
NEW Renewable Energies leaflet
NEW Renewable Energies leaflet
The growing concern over pollution and climate change has exponentially increased the interest about clean energies. Computer Controlled Renewable Energies units (with SCADA), designed by EDIBON, are not only an effective learning tool to understand all energy related processes, but also a...
続きを読む

概要

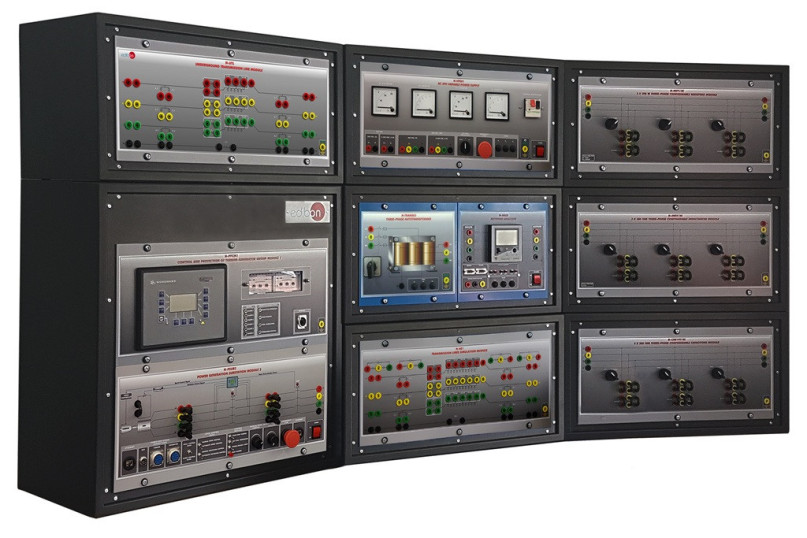

The Underground Transmission Lines Application, "AEL-TI-04", has been designed to study the most important characteristics of underground transmission lines such as critical length, capacitive, characteristic impedance, energy losses, etc. Thus, this application allows to compare both aerial and underground transmission lines, their interconnection and the response against different type of loads.
