USSB Unit for Ship Stability Studies

UNIT TO STUDY STABILITY IN BOATS - USSB

革新的なシステム

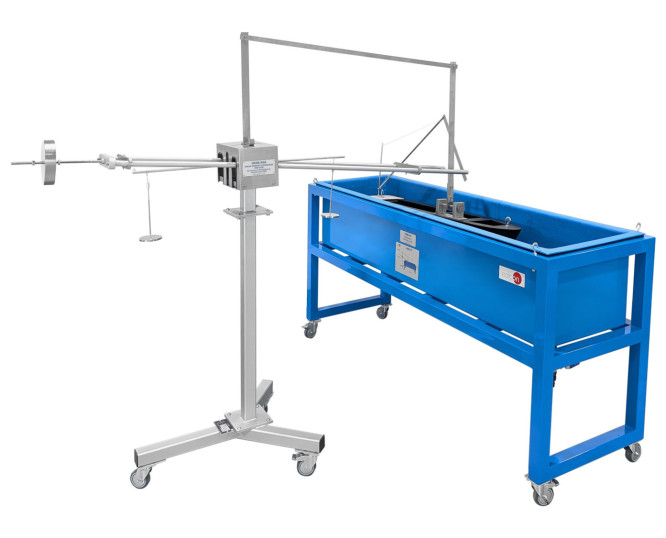

The Ship Stability Study Unit, "USSB", designed by EDIBON, enables a comprehensive analysis of a ship's stability, vibrations, and hydrostatics. This equipment also allows for the determination of the buoyant force, the metacenter, and the center of mass.

一般的な説明を表示

関連ニュース

概要

The study of ship stability and the analysis of vibrations that can occur in a vessel are crucial aspects for the construction and development of naval engineering.

The Ship Stability Study Unit, "USSB", designed by EDIBON, enables a comprehensive analysis of a ship's stability, vibrations, and hydrostatics. This equipment also allows for the determination of the buoyant force, the metacenter, and the center of mass.

In this way, it provides a detailed analysis of the ship's dynamic behavior and stability, which are critical for understanding how vibrations and design can influence the structural and operational stability of the vessel under various navigation conditions.

Four different models are available depending on the study to be conducted (not included):

  • USSB/A. Rectangular Barge Model. A scale representation of a barge, a flat-bottomed vessel commonly used for transporting goods in rivers and canals.
  • USSB/B. Trawler Model. A scale representation of a trawler, typically designed for fishing and usually equipped with nets that drag along the sea floor to catch fish and seafood.
  • USSB/C. Crane Ship Model. A scale representation of a vessel equipped with a crane, primarily used for loading and unloading operations, lifting, and transporting heavy loads in ports, offshore platforms, and other maritime areas.
  • USSB/V. Vibration Study Model. A scale representation designed to study the dynamic behavior and vibrations of naval structures, allowing for the analysis of how different frequencies and vibration modes influence the stability and performance of the vessel.

Additionally, the Water Tank and Angle Stability Accessories for USSB, "USSB/TAN," allow for the study of stability by immersing different ship models, which are secured with a mechanism equipped with a clinometer. This facilitates the execution of rolling and righting experiments. Additional ballast and weights enable complementary tests, providing a comprehensive understanding of the critical aspects of stability and the dynamic behavior of naval structures.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

  1. Study and conduct the heel test in air.
  2. Study and conduct the heel test in water (requires at least one of the models and USSB/TAN).
  3. Determine the effect of free surface on stability.
  4. Determine the influence of a suspended mass on stability.
  5. Study the effect of flooding one or more compartments.
  6. Study and conduct the rolling period test.
  7. Study and determine the buoyant force and center of buoyancy.
  8. Measure the natural frequencies of the ship model in air (USSB/V).
  9. Analyze the vibration behavior of the ship model in air (USSB/V).
  10. Compare theory (approximation formula to determine the first flexible natural frequency) with practice (measured natural frequency) in (USSB/V).
  11. Study the effect of different masses on the natural frequency and mode shape (USSB/V).
  12. Analyze the vibration behavior of the floating ship model (USSB/V + USSB/TAN).

より実用的な練習をして、ユニットを完成させる

  1. Several other exercises can be done and designed by the user.
