MRYE1 ホイール＆車軸実験装置

7.1.3.- 静的および動的 14.1.3.- 静的および動的

革新的なシステム

The Wheel and Axle Unit, "MRYE1", is a unit which allows to investigate the mechanics of a simple wheel and axle machine and to demonstrate the laws of the formation of equilibrium of moments in static systems.

一般的な説明を表示

カタログ

コンテストの仕様

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア

MSAC

モジュラーな取得および制御システム

研究室

7TV

機械・自動車・材料研究室

7HE

高等教育のための機械・自動車・材料研究室

概要

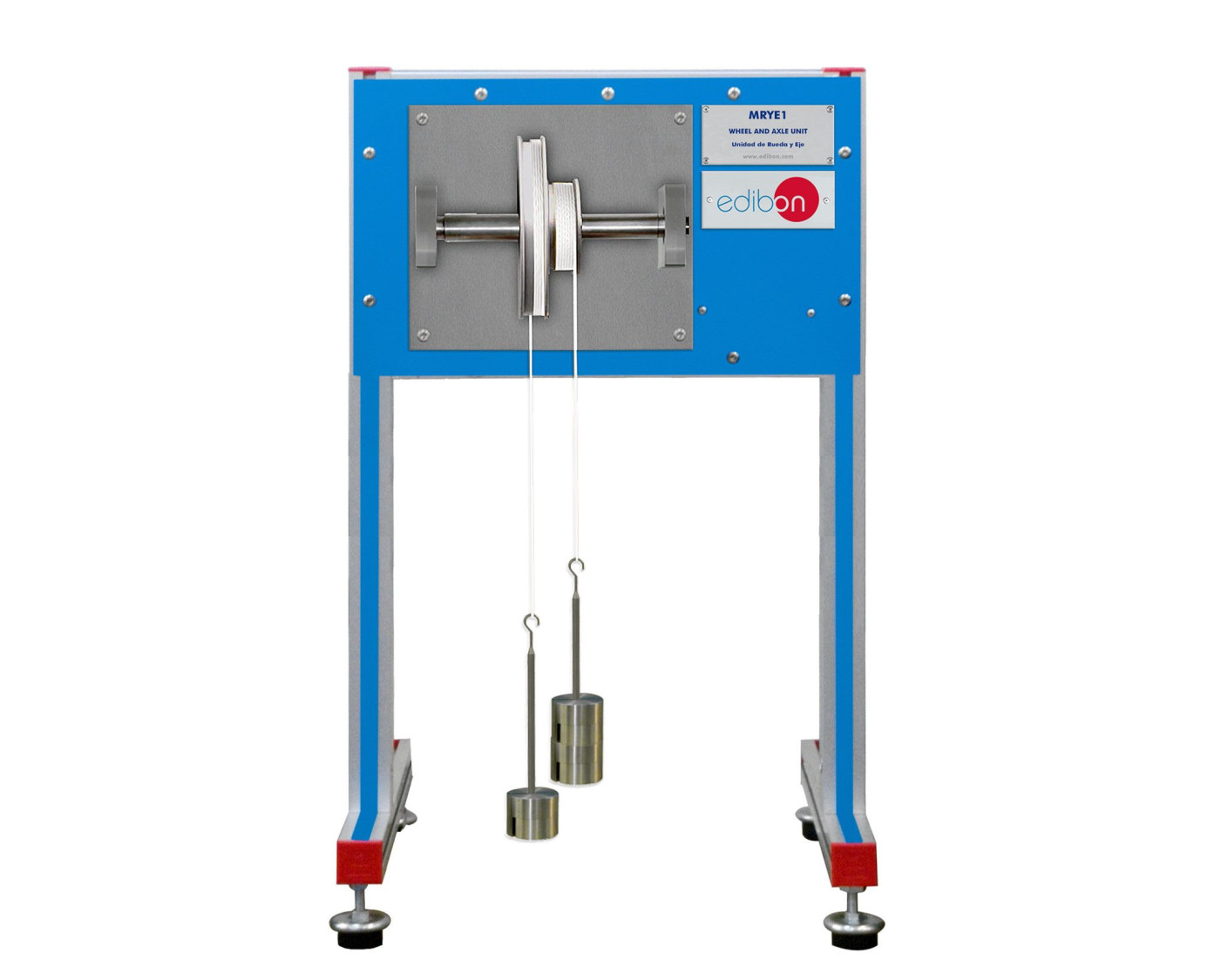

Two pulleys with different diameter have an axle supported on pivots with ball bearings in a base plate. Each pulley (wheel) has a cord wrapped around its periphery. The cords can be wrapped in either direction around each pulley.

A weights holder is added to each cord, allowing the loading of the pulleys using the set of weights provided. These weights can be easily changed, thus allowing to quickly vary the peripheral force on the pulleys.

Using the holders and weights the velocity ratio can be experimentally determined and compared with the calculated values. Students can also determine the variation of effort with load and the variation of efficiency with load.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

Study of equilibrium of moments.
Determination of velocity ratio and comparison with calculated value.
Determination of variation of effort with load.
Determination of variation of efficiency with load.
