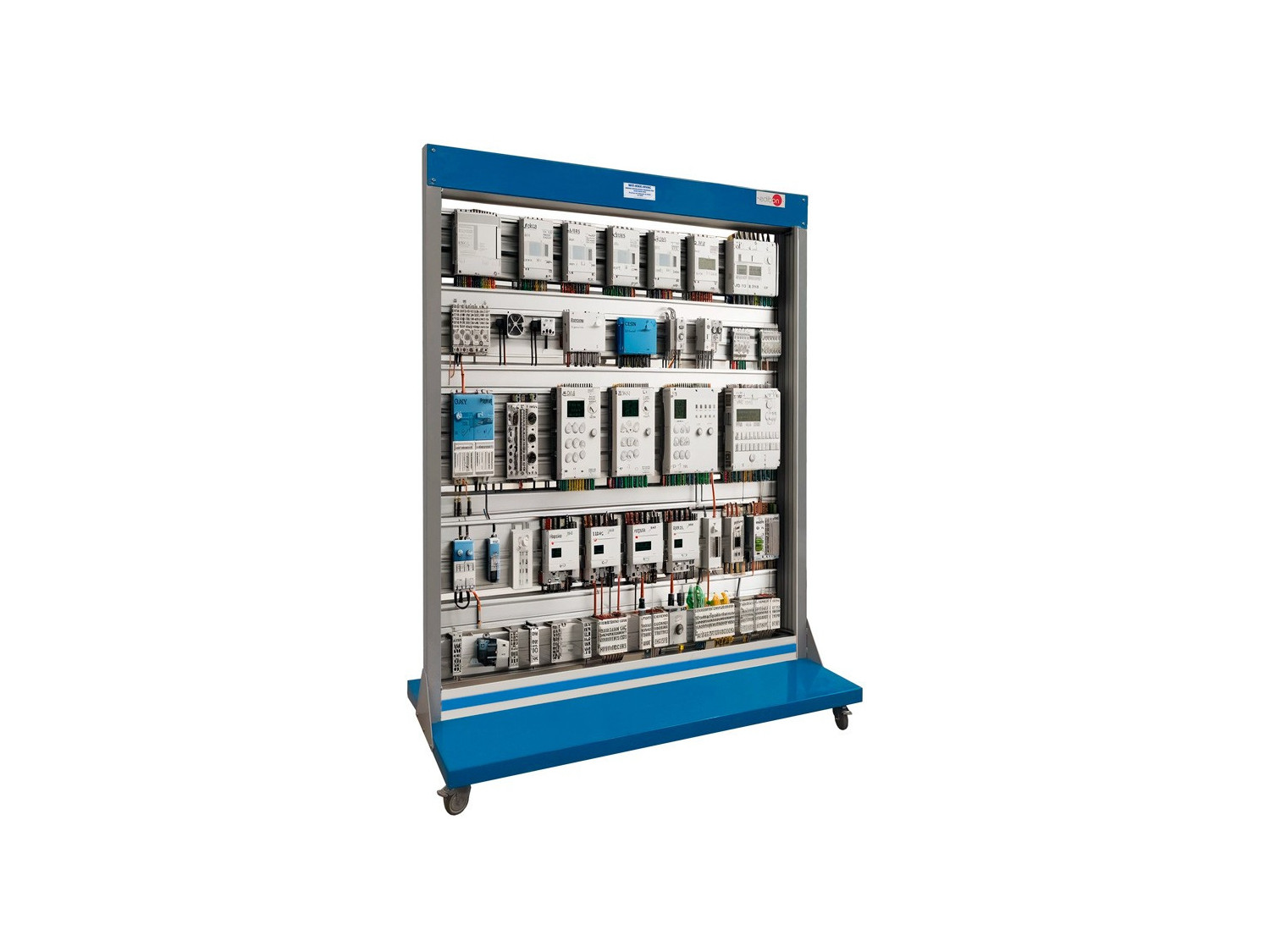

WIRING INSTALLATION TRAINING FOR HVAC WITH KNX - WIT-KNX-HVAC

革新的なシステム

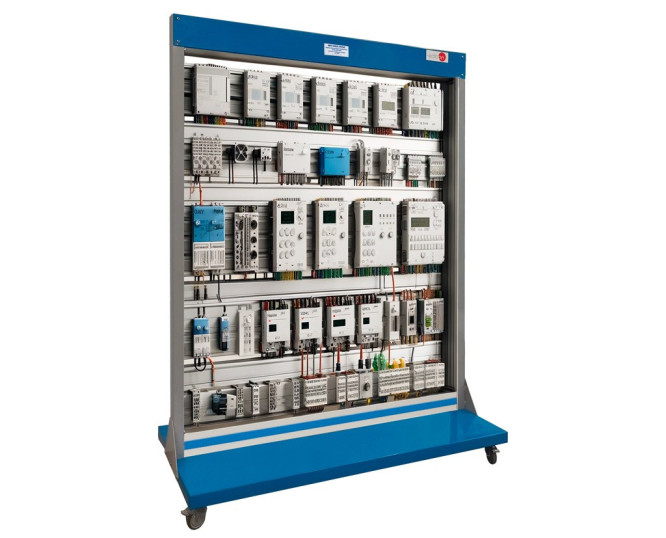

The WIT-KNX-HVAC is a unit designed to facilitate the study and understanding of KNX wiring practices specifically tailored for Hea­ting, Ventilation, and Air Conditioning (HVAC) control systems. This unit serves as a valuable tool for educational and professional purposes, providing hands-on experience and insights into the wiring techniques, programming and commissioning associated with KNX technology in the context of HVAC applications.

一般的な説明を表示
