The Acceleration of Geared Systems Unit, "MAE", designed by EDIBON, allows to perform tests to calculate the moment of inertia of a gear train system.

일반적인 설명보기
목록 목록
컨테스트 사양
정보 요청

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어
MSAC

모듈식 획득 및 제어 시스템

실험실

7TV
 기술 및 직업 교육을위한 기계, 자동차 및 재료 연구실
7HE
 고등 교육을위한 기계, 자동차 및 재료 연구실

관련 뉴스

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
더 읽어보기
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
더 읽어보기

일반적인 설명

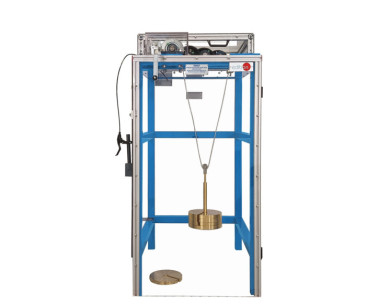

The Acceleration of Geared Systems Unit, "MAE", designed by EDIBON, allows to perform tests to calculate the moment of inertia of a gear train system.
