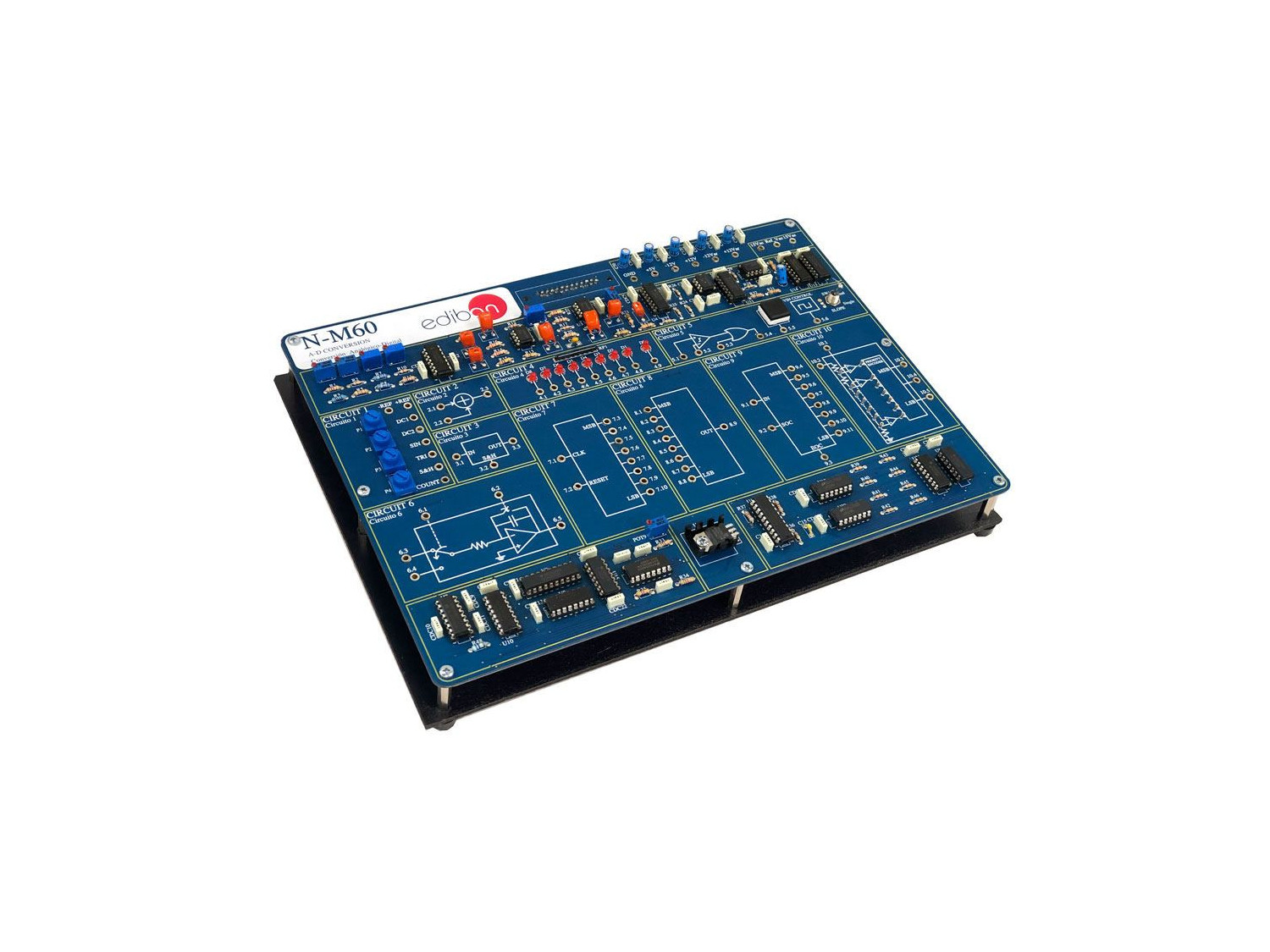

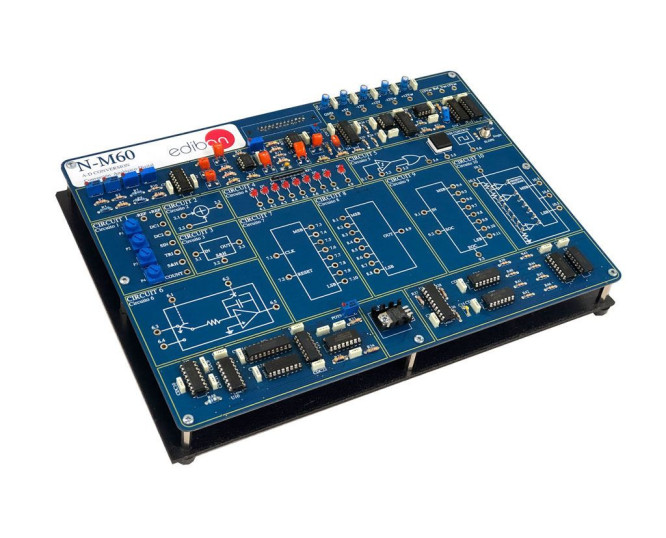

N-M60 Analog/Digital Converters Module

2.3.3.- 디지털 전자 14.2.1.3.- 디지털 전자
ANALOG/DIGITAL CONVERTERS MODULE - N-M60

혁신적인 시스템

With EDIBON's Analog/Digital Converters Module, "N-M60", the different types of analog/digital conversion can be studied.

일반적인 설명보기

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어

관련 뉴스

Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
더 읽어보기

일반적인 설명

Most of the "information" generated in the world by various physical phenomena has a strong analogical character. This means that the information undergoes a continuous variation within certain limits determined over time. Of course, there is also information of a digital character, but its number is considerably smaller than that mentioned above.

When you need to process information, an analog signal, it is usually better to convert the signal to digital form so you can process it digitally. The reason is that the automatic processing of digital information involves great technological simplicity.

With EDIBON's Analog/Digital Converters Module, "N-M60", the different types of analog/digital conversion can be studied.

In addition, faults can be simulated in most of the circuits under study. The student must investigate what is happening in the circuit and why it is not working properly. These faults simulations can be of several types from damage components to a hypothetical incorrect circuit assembly.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

  1. Sampling theorem.
  2. Monopolar simple ramp converter.
  3. Monopolar double ramp converter.
  4. Monopolar binary ramp converter.
  5. A/D integrated converter. Monopolar assembly.
  6. A/D integrated converter. Bipolar assembly.
  7. Flash converter.

장비로 수행 할 수있는 더 많은 실용적 연습

  1. Several other exercises can be done and designed by the user.
