AUTOMOTIVE FUNDAMENTAL ELECTRICAL CIRCUITS UNIT - AV-ELC

혁신적인 시스템

The Automotive Fundamental Electrical Circuits Unit, "AV-ELC", is a group of the main electrical circuits used in all modern cars today. It offers a good introduction to the automotive electric systems.

일반적인 설명보기

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어

관련 뉴스

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
더 읽어보기
Setting up with the Ministry of Education, Culture and Sports of Castilla La Mancha (Spain)
Setting up with the Ministry of Education, Culture and Sports of Castilla La Mancha (Spain)
We have supplied some of our units to the IES Pedro Mercedes (Cuenca), IES Aguas Vivas (Guadalajara) and IES Juanelo Turriano (Toledo).
더 읽어보기
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
더 읽어보기

일반적인 설명

The Automotive Fundamental Electrical Circuits Unit, "AV-ELC", provides a practical solution to the introduction of electricity in the automotive field with a group of common circuits used by the automobiles today.

The circuits included in the "AV-ELC" are focused on different functions, so there are power supply circuits, rectifier circuits, lamp circuits and resistor circuits, capacitor circuits and logic gates circuits. All of these circuits are designed to provide a good introduction to automotive electric systems.

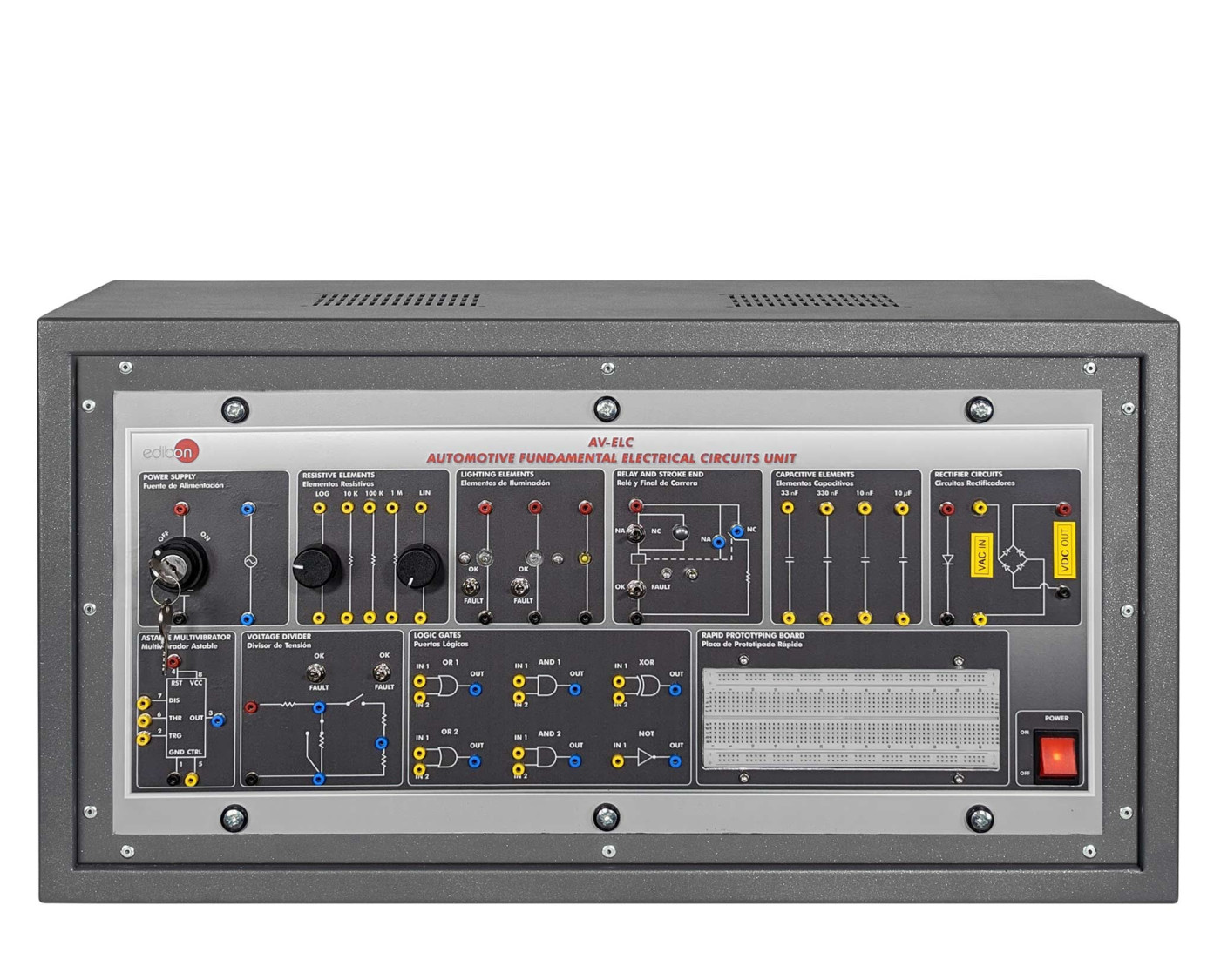

The "AV-ELC" unit is mounted on a metallic plate that can be used alone or assembled on the EDIBON workbenches.

All circuits included in the unit are isolated to understand the function of the circuits separately. Each circuit has different test points accessible through 2 mm standard lab sockets.

The "AV-ELC" circuits include a series of faults that can be inserted to different components of each circuit to allow the students to detect and understand common failures of the electrical components.

The "AV-ELC" unit is provided with a set of practical exercises, through which the student will understand how the fundamental electric circuits used in the automotive field works.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

Power supply circuits:

  1. Waveform study in AC.
  2. Study of DC signals.
  3. Study of faults in the waveform circuit.

Load circuits:

  1. Resistance measurements.
  2. Resistance association.
  3. Voltage divider ratio.
  4. Study of faults in the resistance circuit.
  5. Resistance of a lamp.
  6. Light intensity variation.
  7. Turn signals temporization.

Capacitive elements circuit:

  1. Capacitors measurements.
  2. Capacitors associations.
  3. Study of a low-pass filter.
  4. Study of a high-pass filter.
  5. Frequency response of a low-pass filter.
  6. Frequency response of a high-pass filter.

Rectifier circuit:

  1. Study of the diode function.
  2. Half wave rectifier.
  3. Full wave rectifier.
  4. Study of faults in rectifier circuits.
  5. Full wave rectifier with filter.

Logic gates circuit:

  1. Study the operation with logic gates: NOT, AND, NAND, OR, NOR, XOR and XNOR.

Relay circuit:

  1. Study the relays terminals.
  2. Power supply of a DC relay coil.
  3. Control of a relay with a stroke end.
  4. Study of relay faults.
더보기

장비로 수행 할 수있는 더 많은 실용적 연습

  1. Several other exercises can be done and designed by the user.
