QUSC QRC를 위한 베이스 및 서비스 유닛

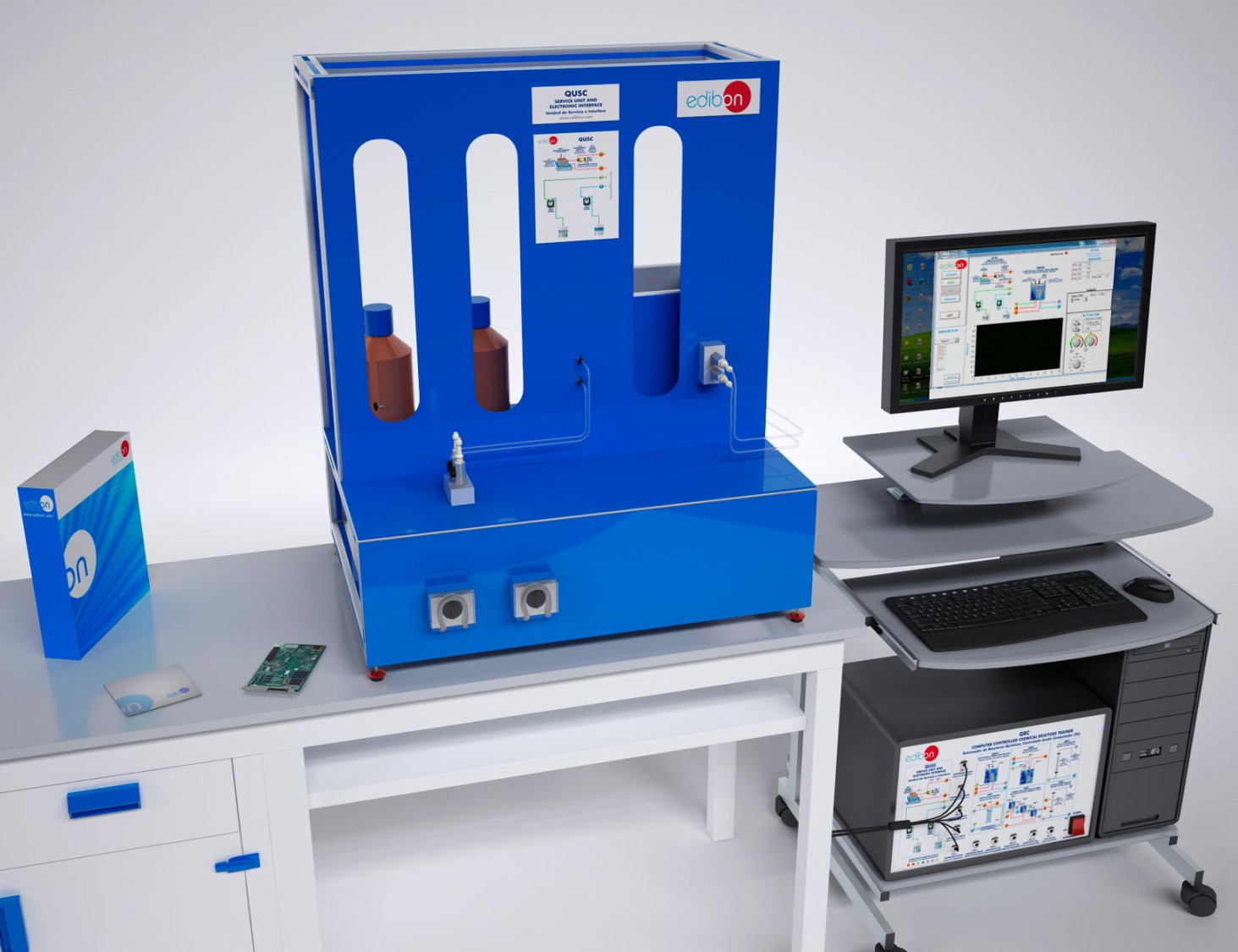

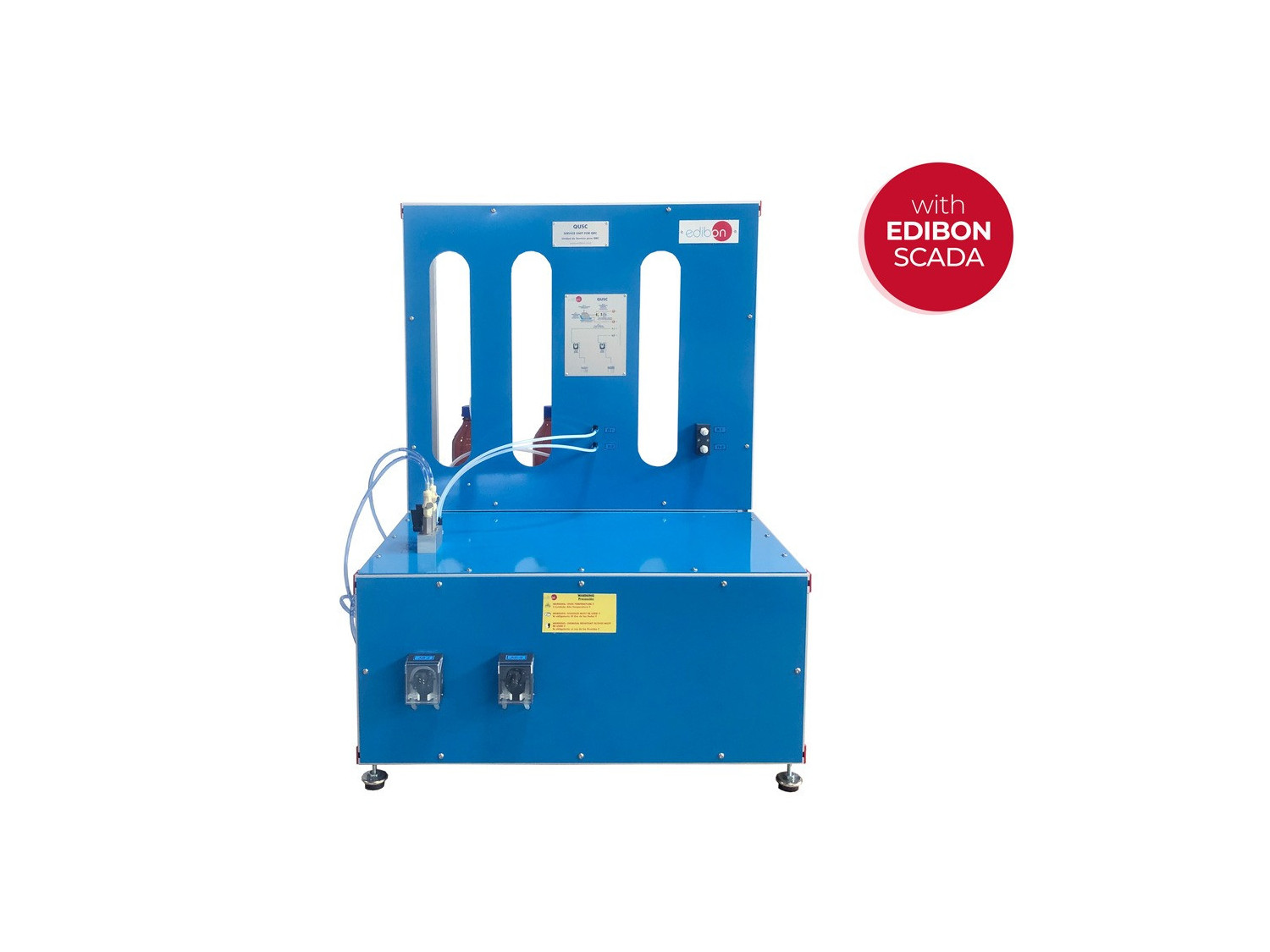

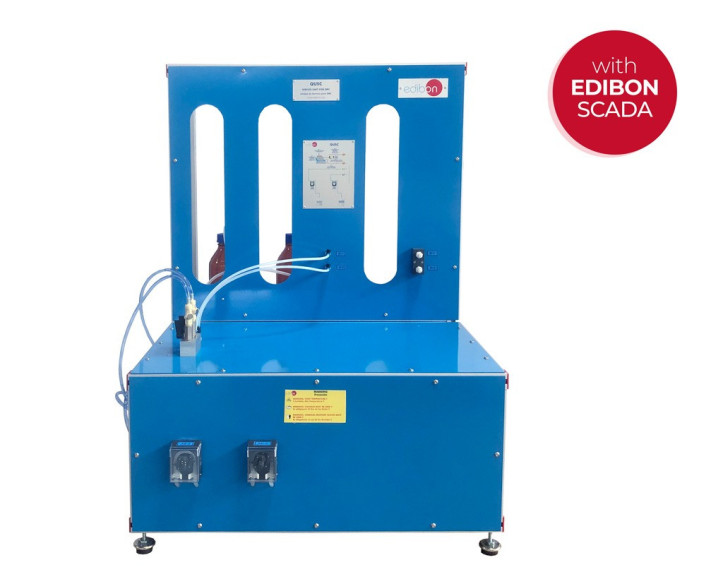

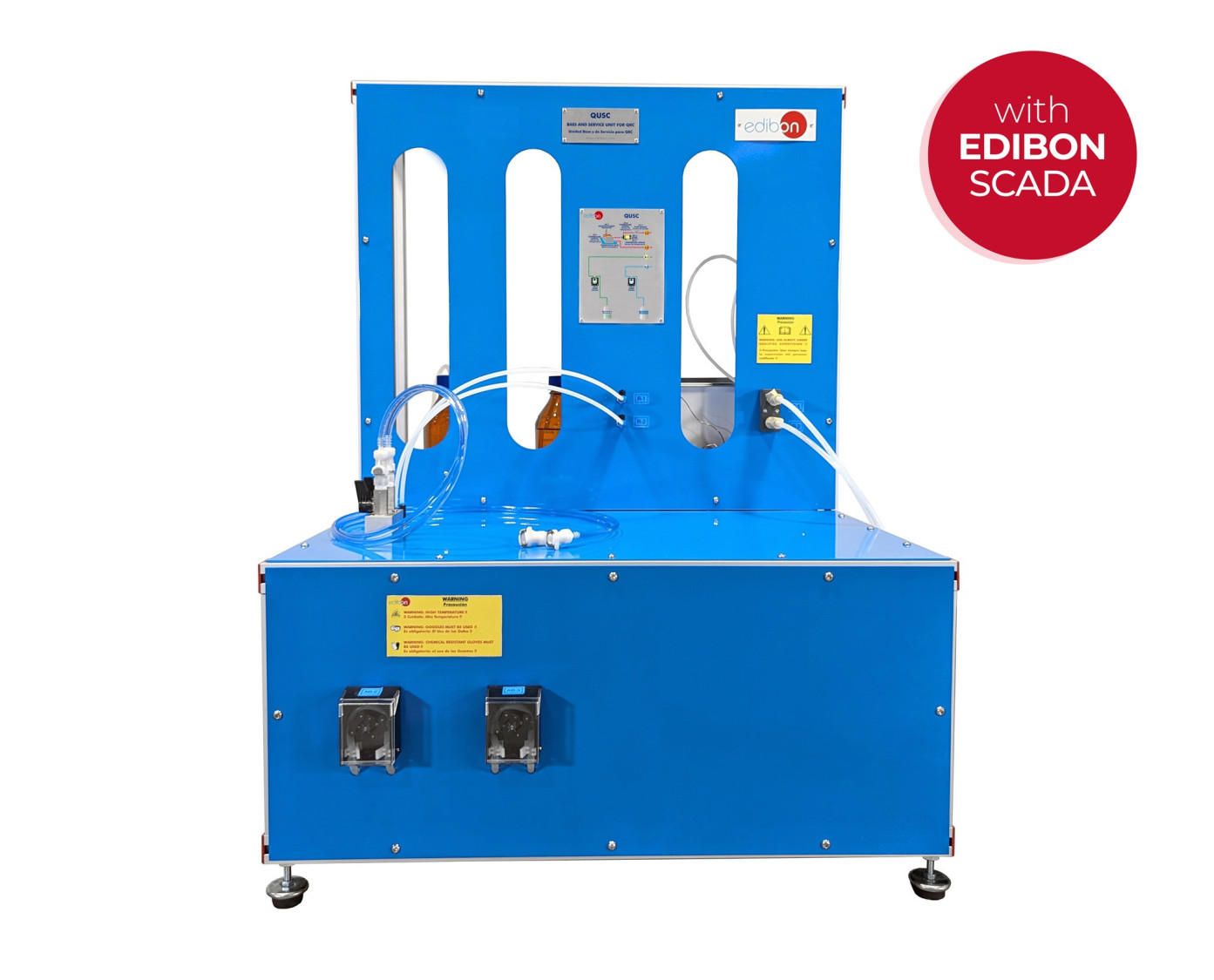

The Service Unit for QRC, "QUSC", provides the necessary elements for the operation of the different reactor modules. It performs the following functions:

• Reagent supply: consisting of two 1 l pyrex containers each located at the back, two dosing pumps and all the necessary connections.
• Temperature control: consisting of a thermostatic bath and an impulsion pump.
• Quick and easy to perform reactor exchange and positioning system.
• This unit allows feeding reagents and temperature control of reactors with a volume up to 1.5 l.

These Computer Controlled Units are supplied with EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.
