BASIC COMBINATIONAL CIRCUITS MODULE - N-M12

혁신적인 시스템

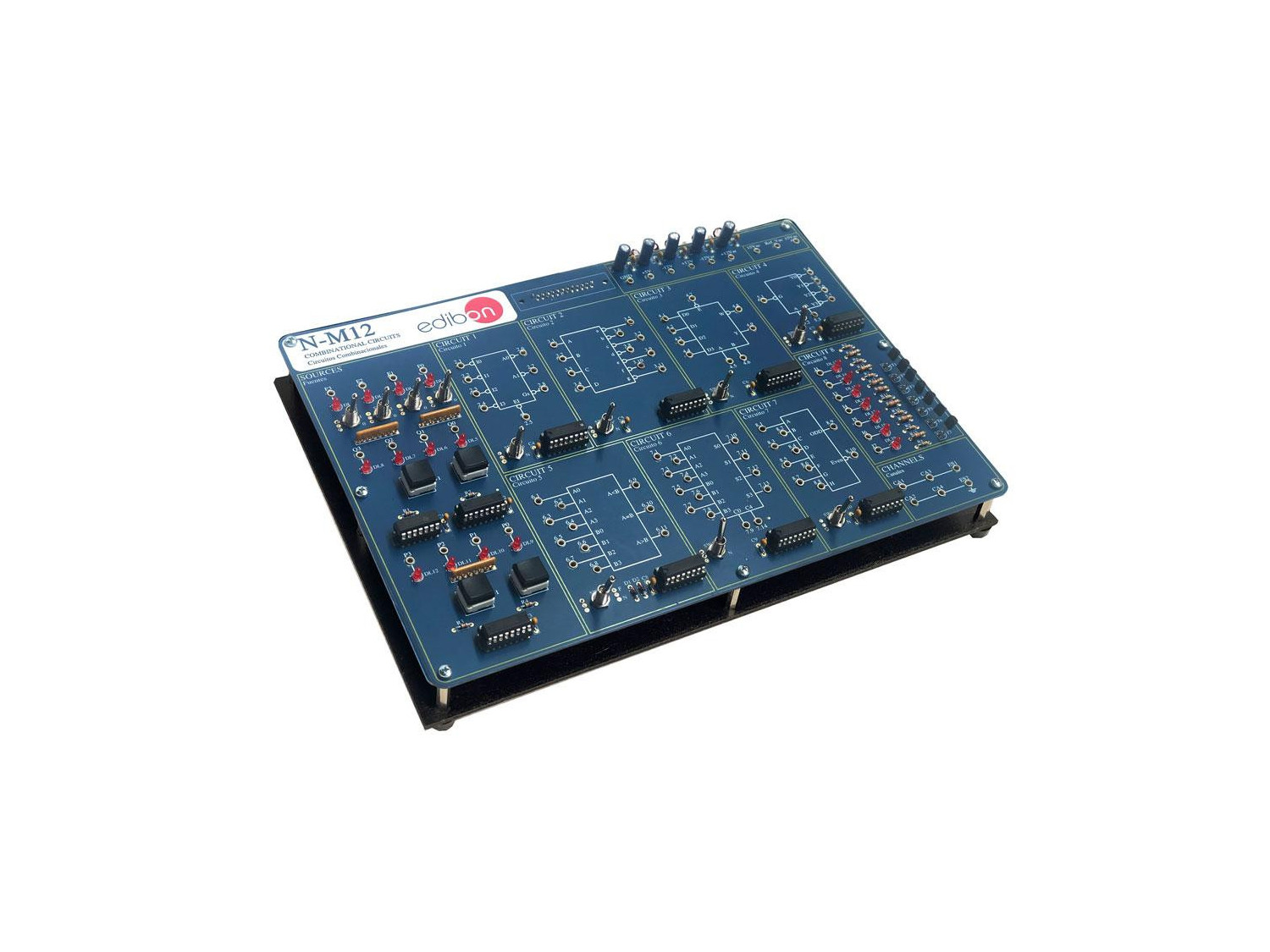

With Basic Combinational Circuits Module, "N-M12", designed by EDIBON, encoders, decoders, multiplexers, demultiplexers, digital comparators and arithmetic and logical operations can be studied.

일반적인 설명보기

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어
EMSK

NI LabVIEW™을 활용한 EDIBON 회로 시뮬레이션 개발 키트

관련 뉴스

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
더 읽어보기
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
더 읽어보기

일반적인 설명

A combinational circuit is an electronic circuit in which the value of its outputs at a given instant, depends on the value of the inputs at the same instant. In other words, it is a circuit that has no memory. Combinational circuits work with numbers and with the technology with which these numbers are made (represented in binary).

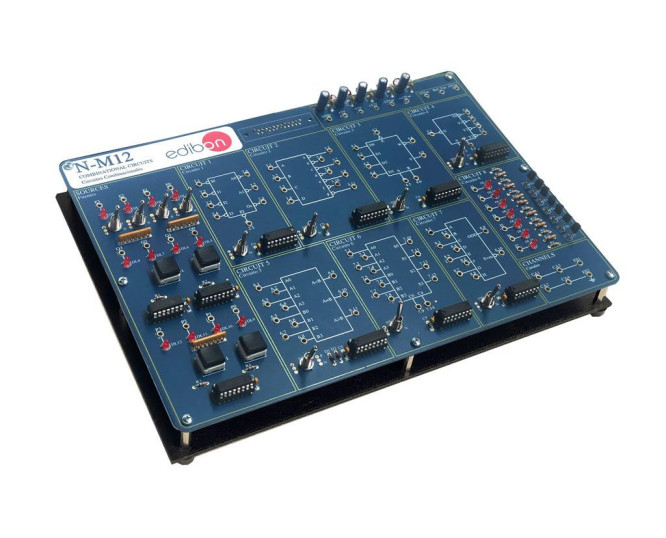

With Basic Combinational Circuits Module, "N-M12", designed by EDIBON, encoders, decoders, multiplexers, demultiplexers, digital comparators and arithmetic and logical operations can be studied.

In addition, faults can be simulated in most of the circuits under study. The student must investigate what is happening in the circuit and why it is not working properly. These faults simulations can be of several types from damage components to a hypothetical incorrect circuit assembly.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

Encoders:

  1. Study of an encoder.
  2. Faults study in the encoder.
  3. Theoretical/practical exercises.

Decoders:

  1. Study of a decoder.
  2. Faults study in the decoder.
  3. Theoretical/practical exercises.

Multiplexers:

  1. Study of a multiplexer.
  2. Faults study in the multiplexers.
  3. Theoretical/practical exercises.

Demultiplexers:

  1. Study of a demultiplexer.
  2. Faults study in demultiplexers.
  3. Theoretical/practical exercises.

Digital Comparators:

  1. Study of a comparator.
  2. Faults study in a comparator.
  3. Theoretical/practical exercises.

Arithmetic and logic operations:

  1. Study of an adder.
  2. Faults study in the arithmetic and logic operations.
  3. Study of a parity generator.
  4. Faults study in the Parity generator.
  5. Theoretical/practical exercises.
더보기

장비로 수행 할 수있는 더 많은 실용적 연습

  1. Several other exercises can be done and designed by the user.
