The Belt Friction Unit with Dynamometers, "MCF/A", allows studies and investigations to compare the friction coefficient for a given contact angle of a flat belt and a V-belt.

일반적인 설명보기

컨테스트 사양

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어

일반적인 설명

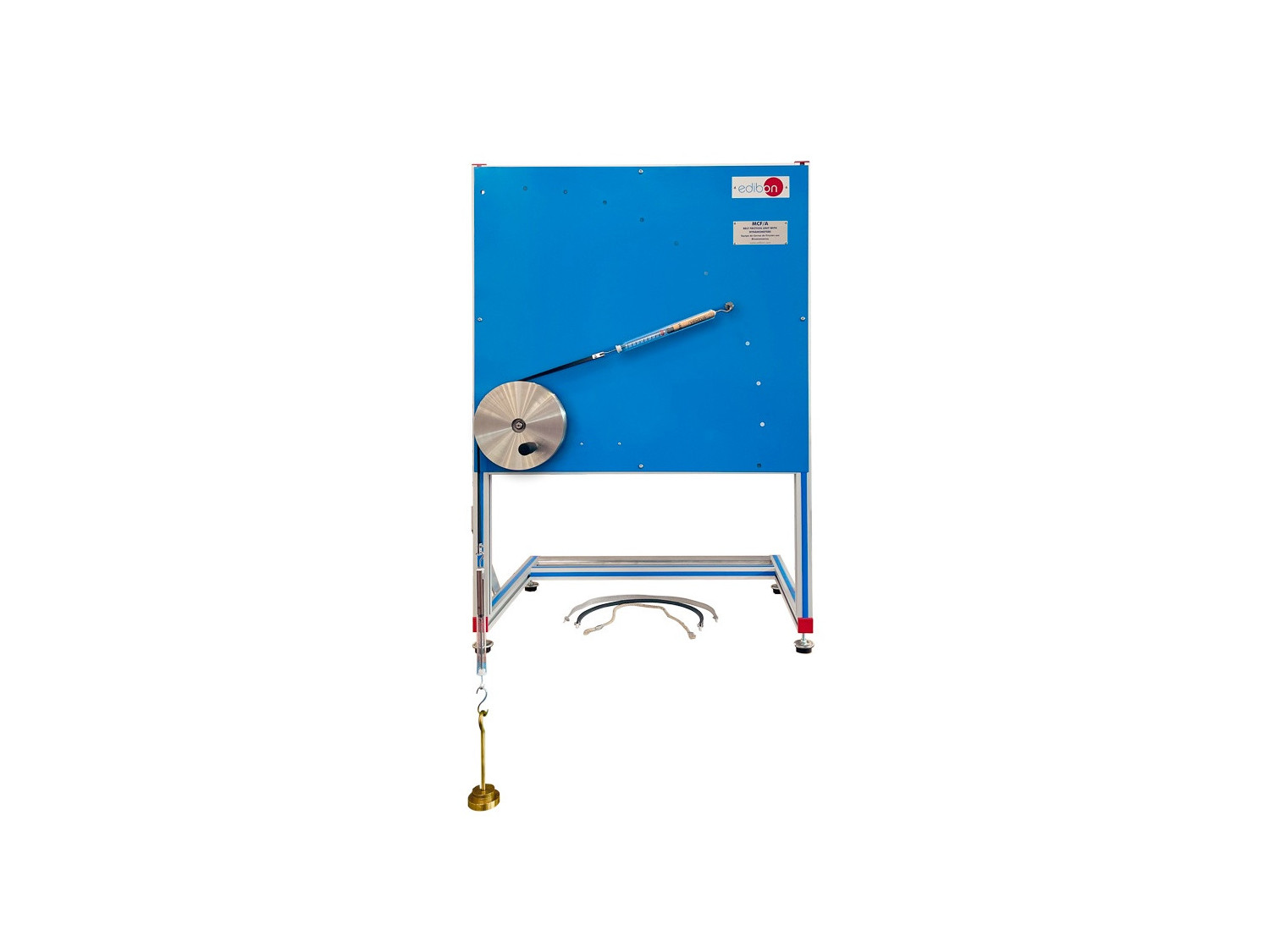

The Belt Friction Unit with Dynamometers, "MCF/A", allows studies and investigations to compare the friction coefficient for a given contact angle of a flat belt and a V-belt.

With this unit it is possible to observe the relationship between tensions on both sides of a belt, to evaluate the differences between flat belts (different material) and V-belts and to investigate, among other things, the effect of the contact angle.

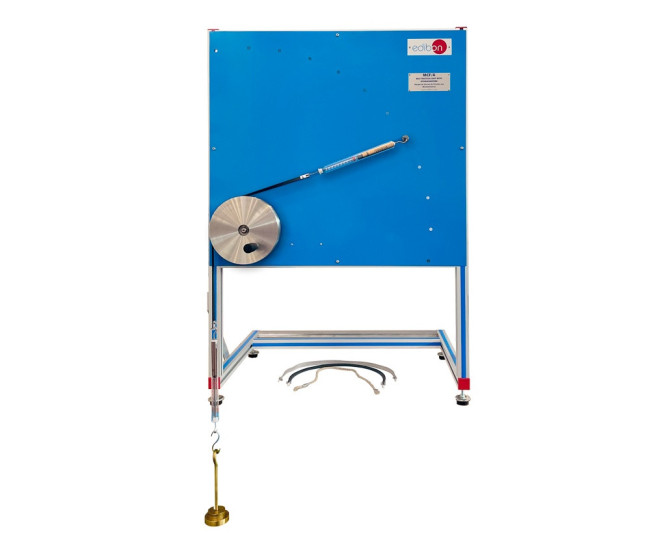

The pulley has different grooves to accommodate different belts and is balanced and mounted on bearings to reduce friction losses.

The pulley is driven by a crank and two dynamometers record the tensile forces at each end of the belt. Belt tension can be adjusted at one end of the belt.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

Evaluation of the differences between a flat belt and a V-belt.
Investigation of the relationship between the belt tension and the angle of lap for a flat belt.
Determination of the coefficient of friction between the pulley and the belt for the belt sections.
Verification of the belt tension equation.
Analysis of the effect of a badly fitted V-belt.

비슷한 제품

Available

7.1.5.- 트라이 볼 로지 (마찰, 마모, 윤활)

MCF

Belt Friction Unit

The Belt Friction Unit, "MCF", allows us to carry out studies and investigations to compare the driving torque for a given degree of overlap of a flat belt (leather or rope) and a V belt.With this unit the relationship between the tensions in the...

보완 장비

Available

7.1.5.- 트라이 볼 로지 (마찰, 마모, 윤활)

MCF

Belt Friction Unit

Available

7.1.5.- 트라이 볼 로지 (마찰, 마모, 윤활)

MEF

Friction Study Unit

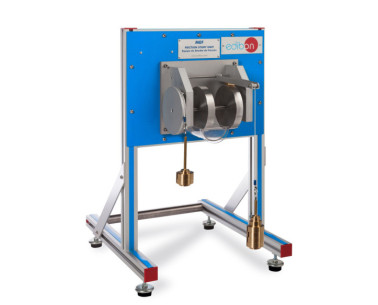

The Friction Study Unit, "MEF", allows the unit to illustrate the friction force by simple demonstrations.It is designed for the study of the relations between friction forces and normal forces, between hard or soft surfaces, between lubricated or...
