TBMC-CG Computer Controlled Exhaust Gas Calorimeter

7.2.3.- 엔진 9.9.- 내부 연소 엔진
COMPUTER CONTROLLED EXHAUST GAS CALORIMETER - TBMC-CG

혁신적인 시스템

The Computer Controlled Exhaust Gas Calorimeter, "TBMC-CG", designed by EDIBON, is a calorimeter thought to measure the heat contained in the exhaust gases of a combustion engine.

일반적인 설명보기

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어
FSS

고장 시뮬레이션 시스템
ELK

EDIBON 소프트웨어 개발 키트, NI LabVIEW™에서 제공하는 기능
ECR

NI CompactRIO를 사용한 EDIBON의 산업용 모듈식 시스템
ESN

EDIBON Scada-Net 시스템
ECL

EDIBON 원격 교육

실험실

9TV
 기술 및 직업 교육을위한 열역학 및 열공학 실험실
9HE
 고등 교육을위한 열역학 및 열공학 실험실

관련 뉴스

Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and thermotechnology are fundamental fields of engineering that play a critical role across various industries, from energy generation to climate control. Understanding these foundational concepts is essential not only for engineers but also for fostering technological innovations...
더 읽어보기
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
더 읽어보기
We are excited to celebrate the publication of the article by Prof. Dr. Nina Penkova titled "Performance of Diffusion Absorption Refrigerators with Variable Input Power" The study explores how absorption refrigerators, which utilize waste or solar energy for heating and cooling, can operate...
더 읽어보기
Setting up at Polytechnic School (University Carlos III of Madrid)
Setting up at Polytechnic School (University Carlos III of Madrid)
This is the last installation we have done at the Polytechnic School (University Carlos III of Madrid). There we have installed several units in the Thermal and Fluids Engineering Department.
더 읽어보기

일반적인 설명

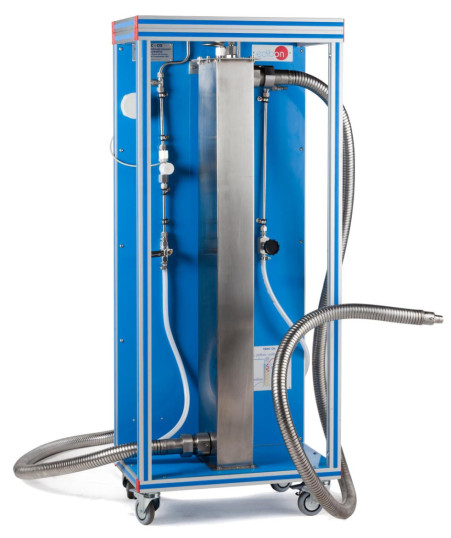

The Computer Controlled Exhaust Gas Calorimeter, "TBMC-CG", is mounted on a laminated aluminium profiles frame and panels in painted steel.

The main element consists on a double-wall tank made in stainless steel. Through the tank interior the exhaust gases of a combustion engine flow from the lower to the upper part. These gases cross the external surface of a finned steel pipe. Through the pipe interior, crosscurrent water flows with the aim of absorbing the heat contained in the gases which flow through the exterior.

The function of the double-wall is having an air chamber between the gases to be analyzed and the external environment to minimize the heat losses with the exterior.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

  1. Determination of the heat content of exhaust gases from test engines.
  2. Heat and energy balance studies.
  3. Determination of exhaust gas thermal output power given up.
  4. To determine the specific heat capacity of exhaust gases.

장비로 수행 할 수있는 더 많은 실용적 연습

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc. in real time.
  3. The Computer Control System with SCADA allows a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the TBMC-CG unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the TBMC-CG unit process.
  9. Several other exercises can be done and designed by the user.

품질

판매 후 서비스

정보 요청
