COMPUTER CONTROLLED EXPERIMENTAL IMPULSE TURBINE - HTIC

혁신적인 시스템

The Computer Controlled Experimental Impulsion Turbine, "HTIC", designed by EDIBON, consists of a small-scale impulsion turbine, which is driven by compressed air and allows the study of its operating characteristics.

일반적인 설명보기

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어
FSS

고장 시뮬레이션 시스템
PLC

PLC에 의한 산업 프로세스 제어
PLCHMI

HMI와 함께하는 로컬/원격 IIoT 제어 및 모니터링
ELK

EDIBON 소프트웨어 개발 키트, NI LabVIEW™에서 제공하는 기능
ECR

NI CompactRIO를 사용한 EDIBON의 산업용 모듈식 시스템
ESN

EDIBON Scada-Net 시스템
ECL

EDIBON 원격 교육

실험실

11PTC
 석유 연수원 연구실
8TV
 기술 및 직업 교육을위한 유체 역학 연구실
8HE
 고등 교육을위한 유체 역학 연구실

관련 뉴스

Laboratory supported by Official College of Technical Industrial Engineers (Spain)
Laboratory supported by Official College of Technical Industrial Engineers (Spain)
At EDIBON, we reaffirm our commitment to the advancement of clean and renewable energy, with a special focus on green hydrogen as a key driver for a more sustainable future. We are proud to have been selected to equip the first Green Hydrogen Laboratory in the Region of Murcia, a pioneering space...
더 읽어보기
Recycling and energy storage systems
Recycling and energy storage systems
The shift towards electric vehicles (EVs) has gained considerable momentum worldwide, promising a reduction in greenhouse gas emissions and a path to a more sustainable future. However, as the demand for EVs accelerates, so too does the need for large quantities of essential minerals, such as...
더 읽어보기
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
더 읽어보기
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
더 읽어보기

일반적인 설명

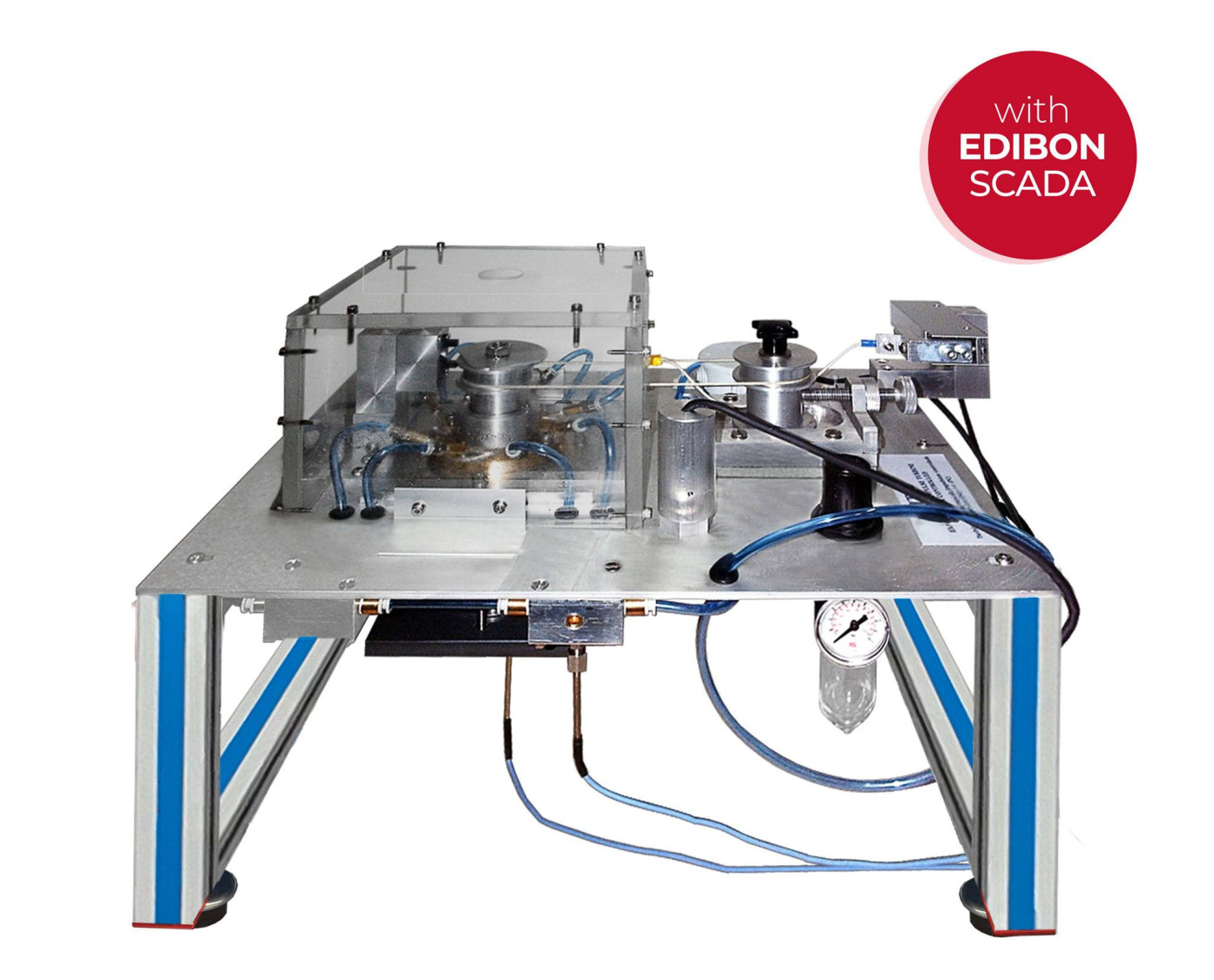

The Computer Controlled Experimental Impulse Turbine, "HTIC", allows to study the characteristics and the behavior of a small scale impulse turbine.

This unit includes suitable instrumentation to measure the main parameters:

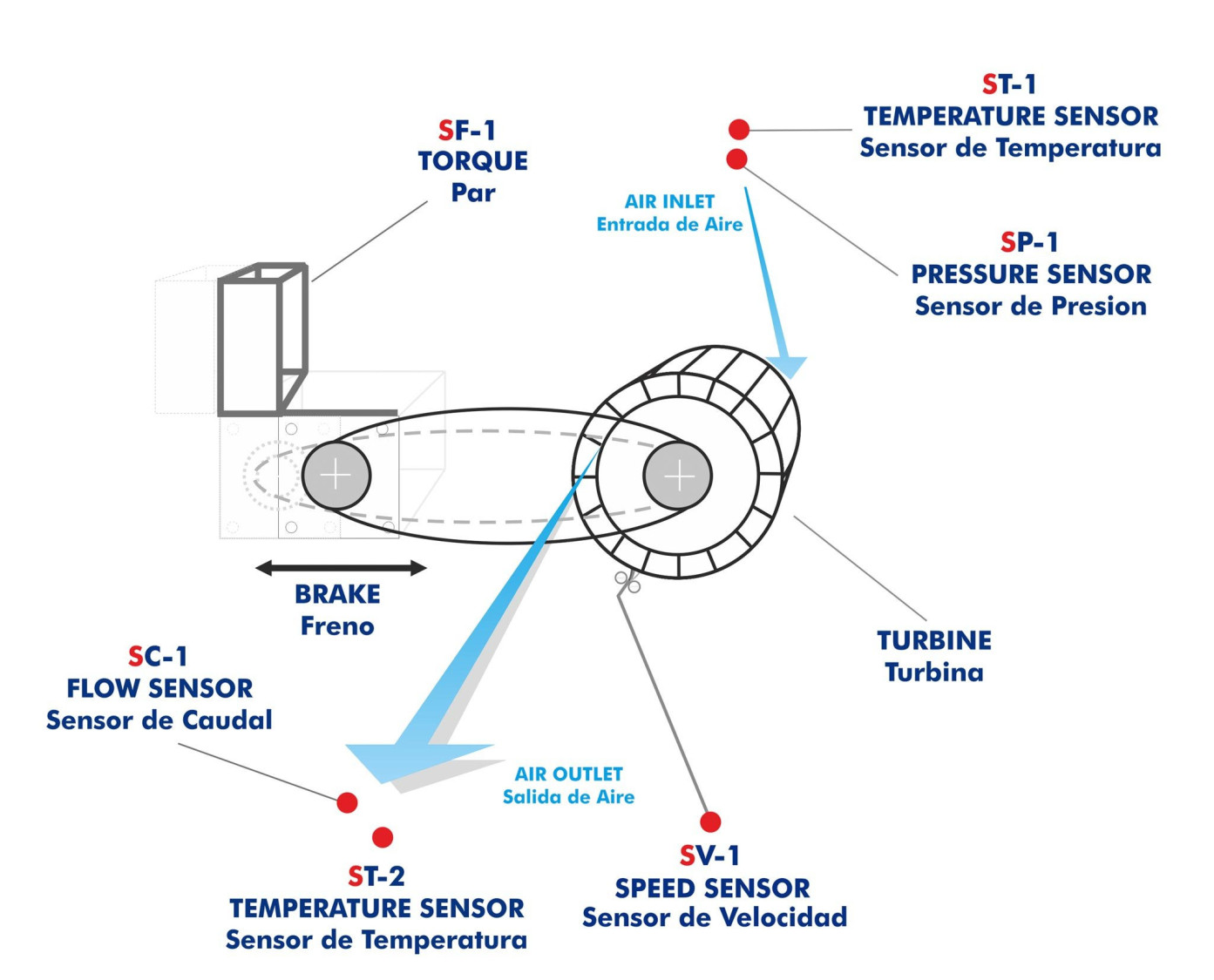

  • There is a pressure sensor at the turbine’s fluid inlet that measures the admission pressure, a sensor that determines the speed of the turbine’s axis, a flow sensor for the outlet air and two temperature sensors for the turbine’s inlet and outlet air.
  • It also includes a band brake connected to a load cell to vary the load transmitted to the turbine through a connecting device.

This unit allows to determine the operation characteristics of this type of turbine, the hydraulic and mechanical efficiency curves, to obtain the hydraulic and mechanical power, etc.

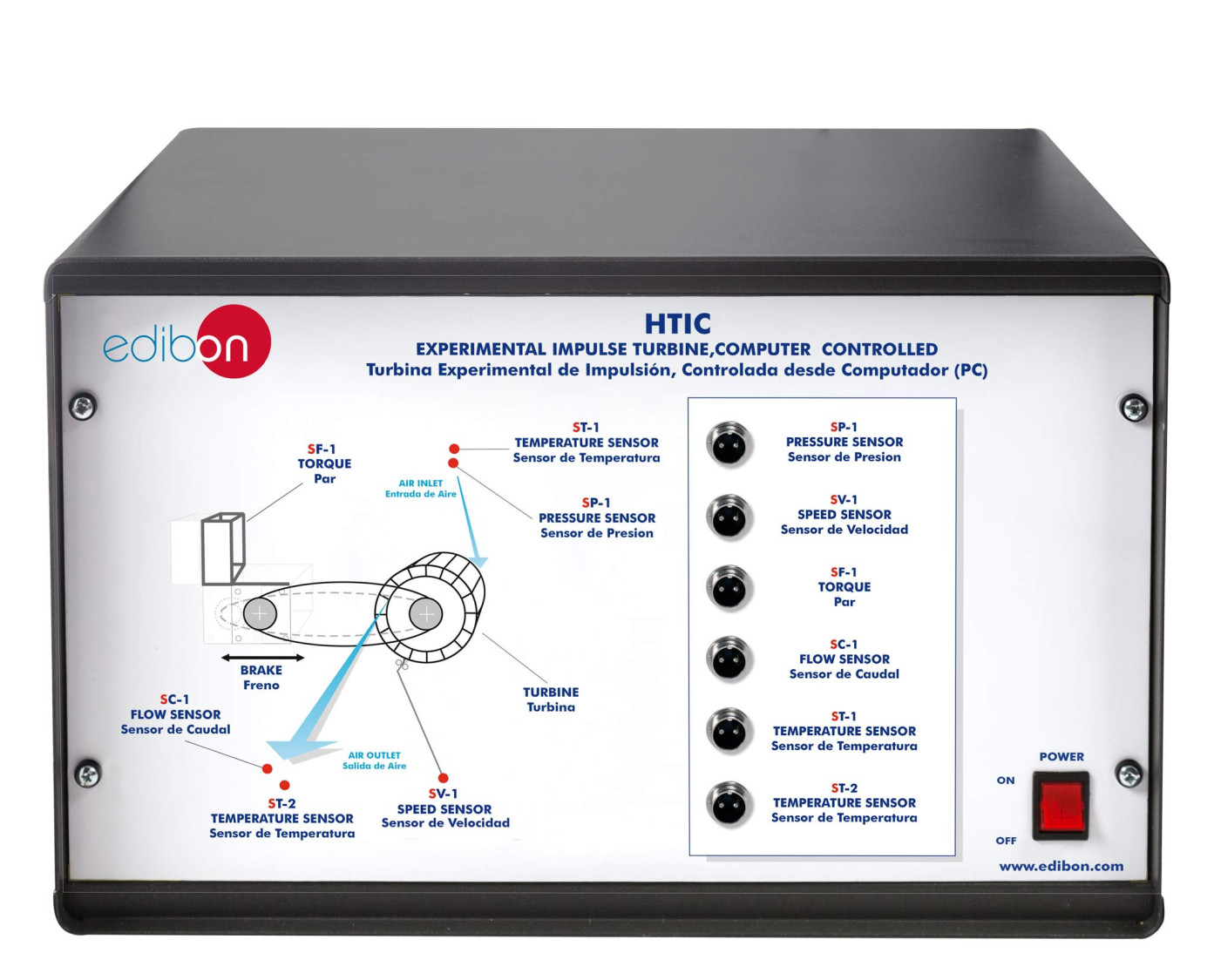

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.
