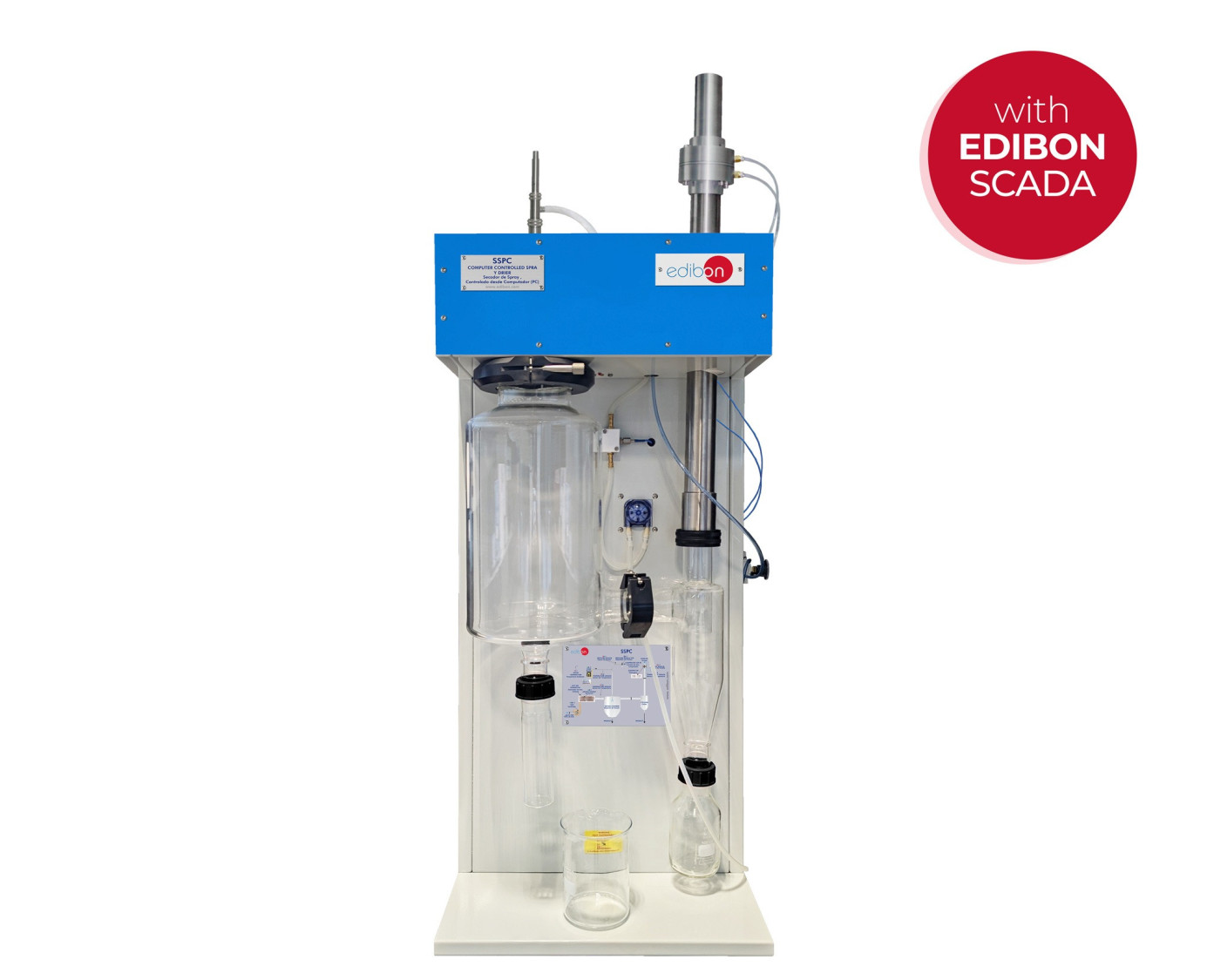

Unit: SSPC. Computer Controlled Spray Drier

COMPUTER CONTROLLED SPRAY DRIER - SSPC

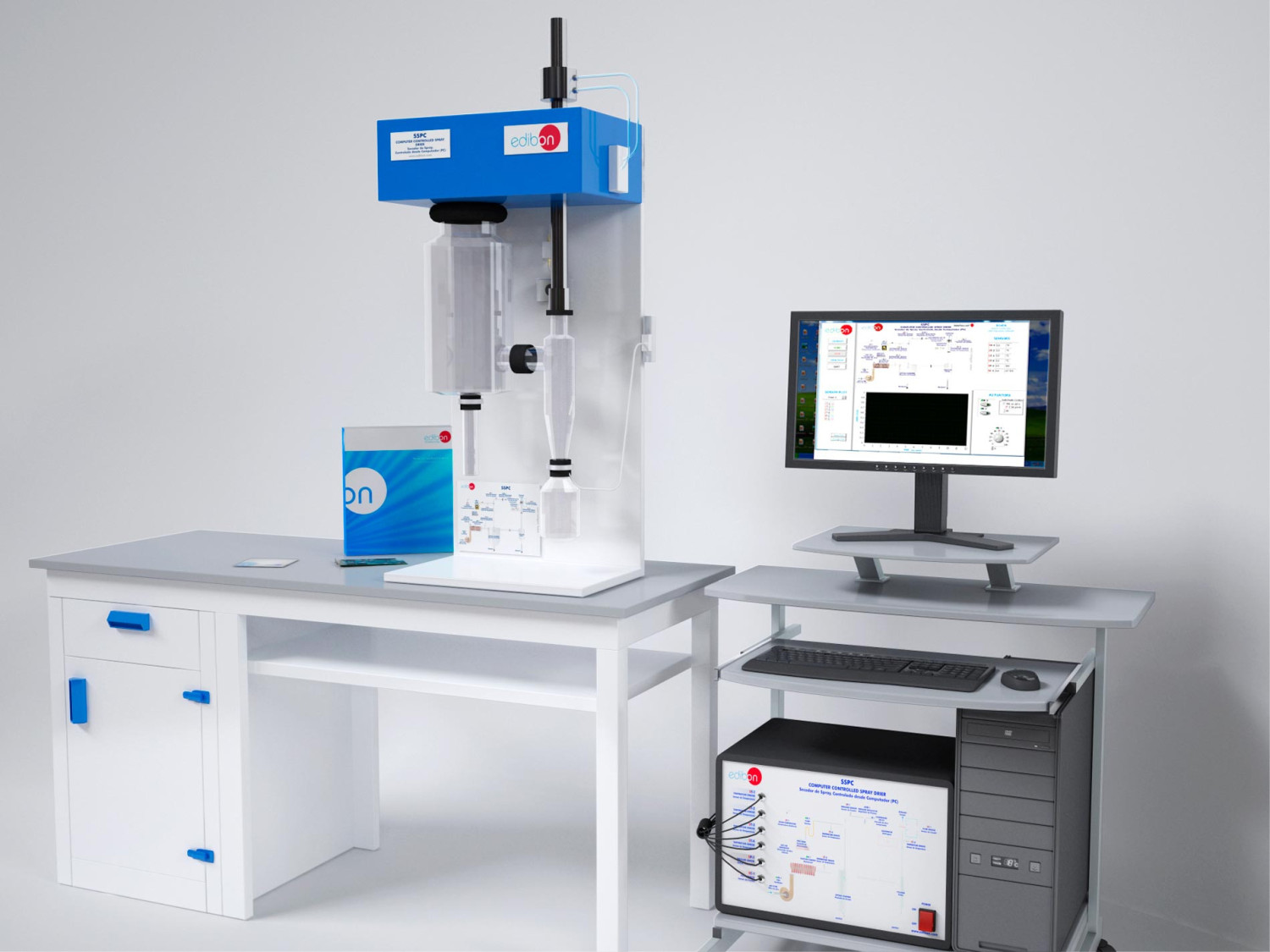

Complete SSPC Unit

COMPUTER CONTROLLED SPRAY DRIER - SSPC
COMPUTER CONTROLLED SPRAY DRIER - SSPC

혁신적인 시스템

The Computer Controlled Spray Drier, "SSPC", allows to study processes that involve aqueous emulsions, solutions, suspensions andcolloidal solutions.

일반적인 설명보기

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어
FSS

고장 시뮬레이션 시스템
PLC

PLC에 의한 산업 프로세스 제어
PLCHMI

HMI와 함께하는 로컬/원격 IIoT 제어 및 모니터링
ELK

EDIBON 소프트웨어 개발 키트, NI LabVIEW™에서 제공하는 기능
ECR

NI CompactRIO를 사용한 EDIBON의 산업용 모듈식 시스템
ESN

EDIBON Scada-Net 시스템
ECL

EDIBON 원격 교육

실험실

11TV
 기술 및 직업 교육을위한 화학 공학 연구실
11HE
 고등 교육을위한 화학 공학 연구실
11PTC
 석유 연수원 연구실
12TV
 기술 및 직업 교육을위한 식품 기술 연구소
12HE
 고등 교육을위한 식품 기술 연구소

관련 뉴스

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
더 읽어보기
Second-generation biofuels: the sustainable future at EDIBON
Second-generation biofuels: the sustainable future at EDIBON
In a world where energy demand continues to rise and non-renewable resources are rapidly depleting, the need for sustainable, environmentally friendly solutions has never been more urgent. The circular economy and the use of organic biomass to produce biofuels are emerging as key answers to...
더 읽어보기
NEW Food & Water technologies leaflets
NEW Food & Water technologies leaflets
Food Technology is a branch of Food Science based on multidisciplinary knowledge of nutrition, chemical analysis, physics, biochemistry and engineering. Water treatment technologies obtain drinking water, so necessary for our life. Both disciplines have become in recent years an indispensable...
더 읽어보기

일반적인 설명

The Computer Controlled Spray Drier, "SSPC", allows to study processes that involve aqueous emulsions, solutions, suspensions andcolloidal solutions.

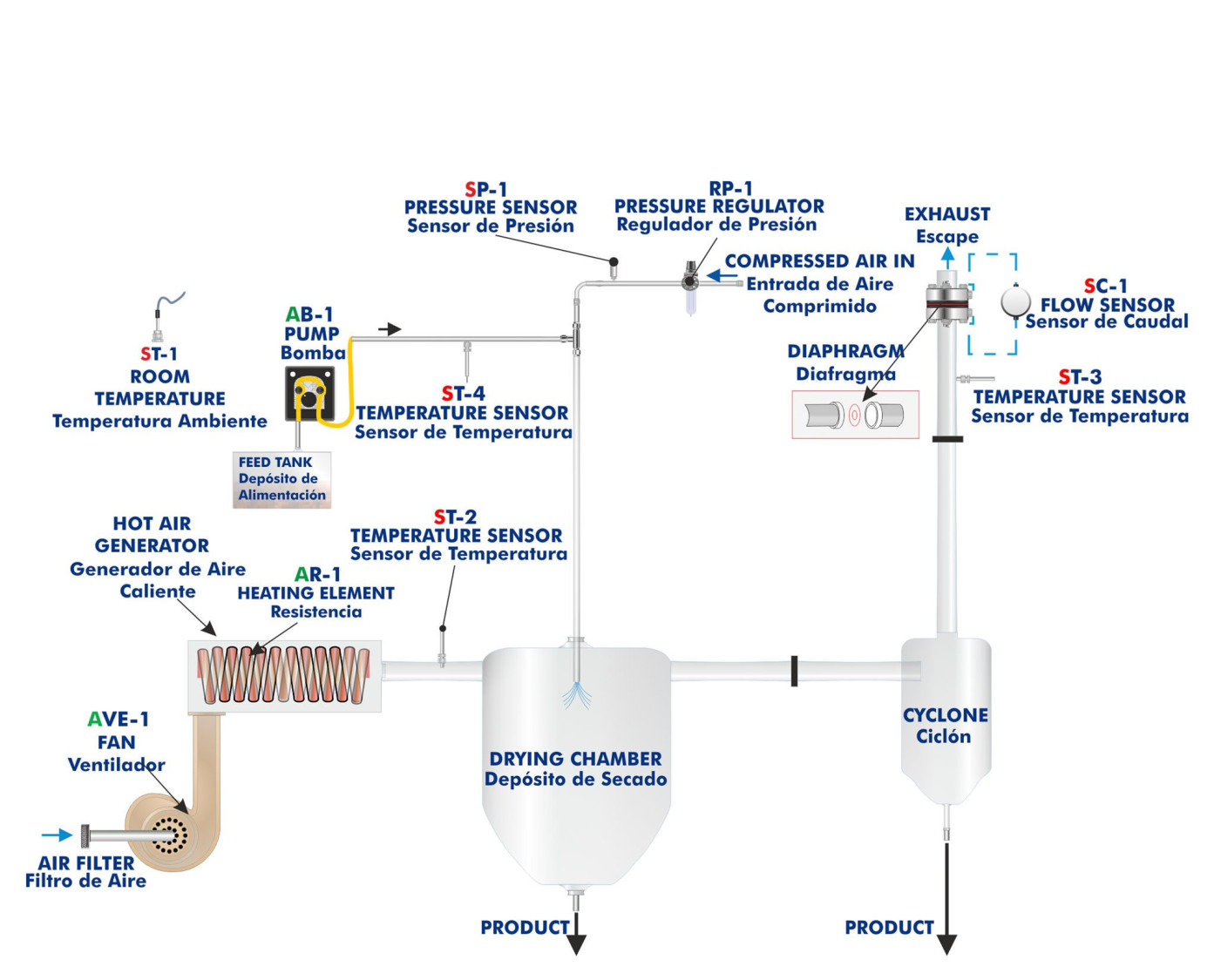

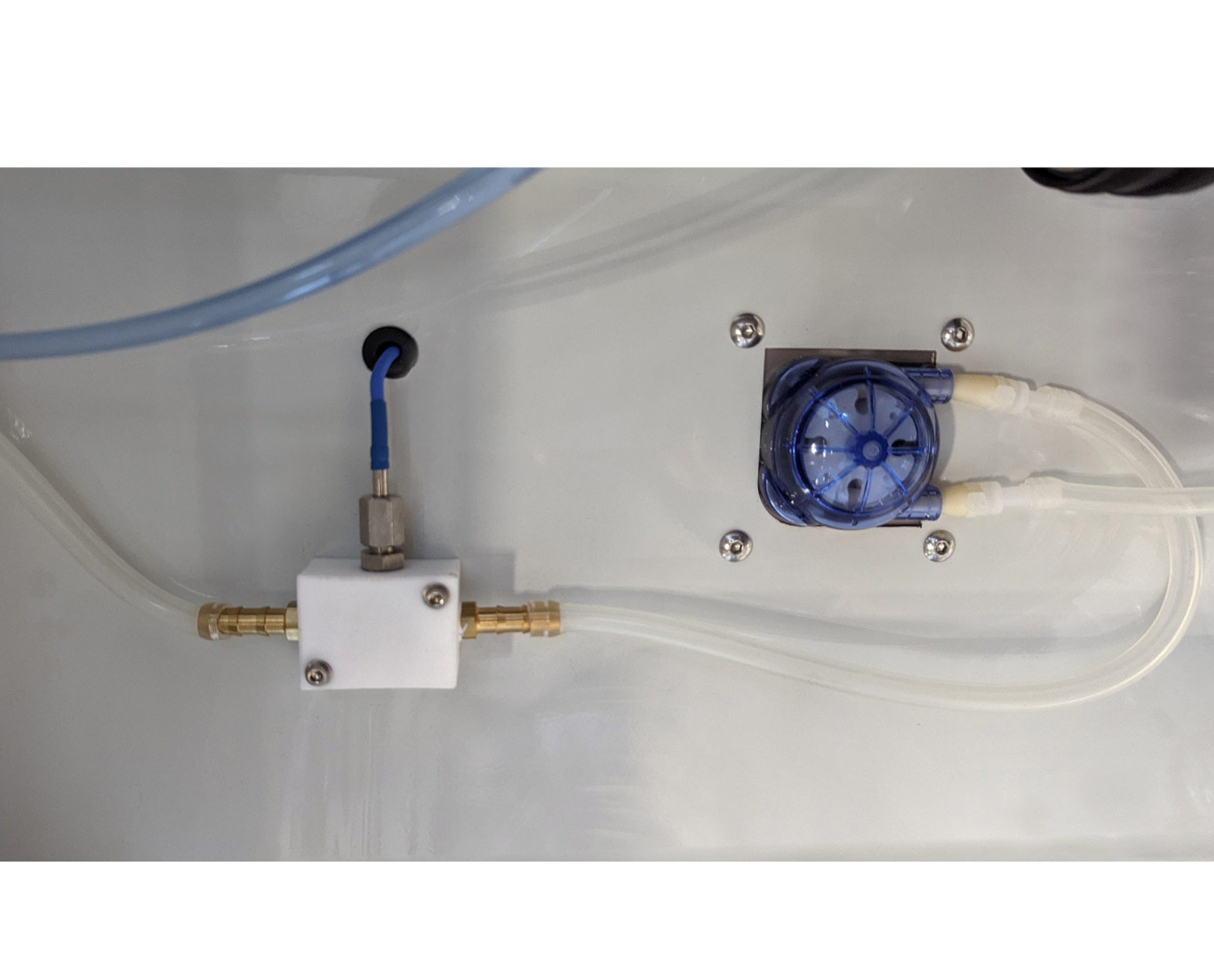

Peristaltic pump delivers the liquid sample from a container through a small diameter jet into the drying chamber. At the same timecompressed air enters the outer tube of the jet which causes the liquid to emerge as a fine atomized spray into the drying chamber. Heatedair is blown through the drying chamber evaporating the liquid content of the atomized spray.

The solid particles of the material are separated from the exhaust air flow by a cyclone and collected in the sample collection bottle. Theexhaust airflow is directed to the atmosphere or to an extraction system existing in the laboratory.

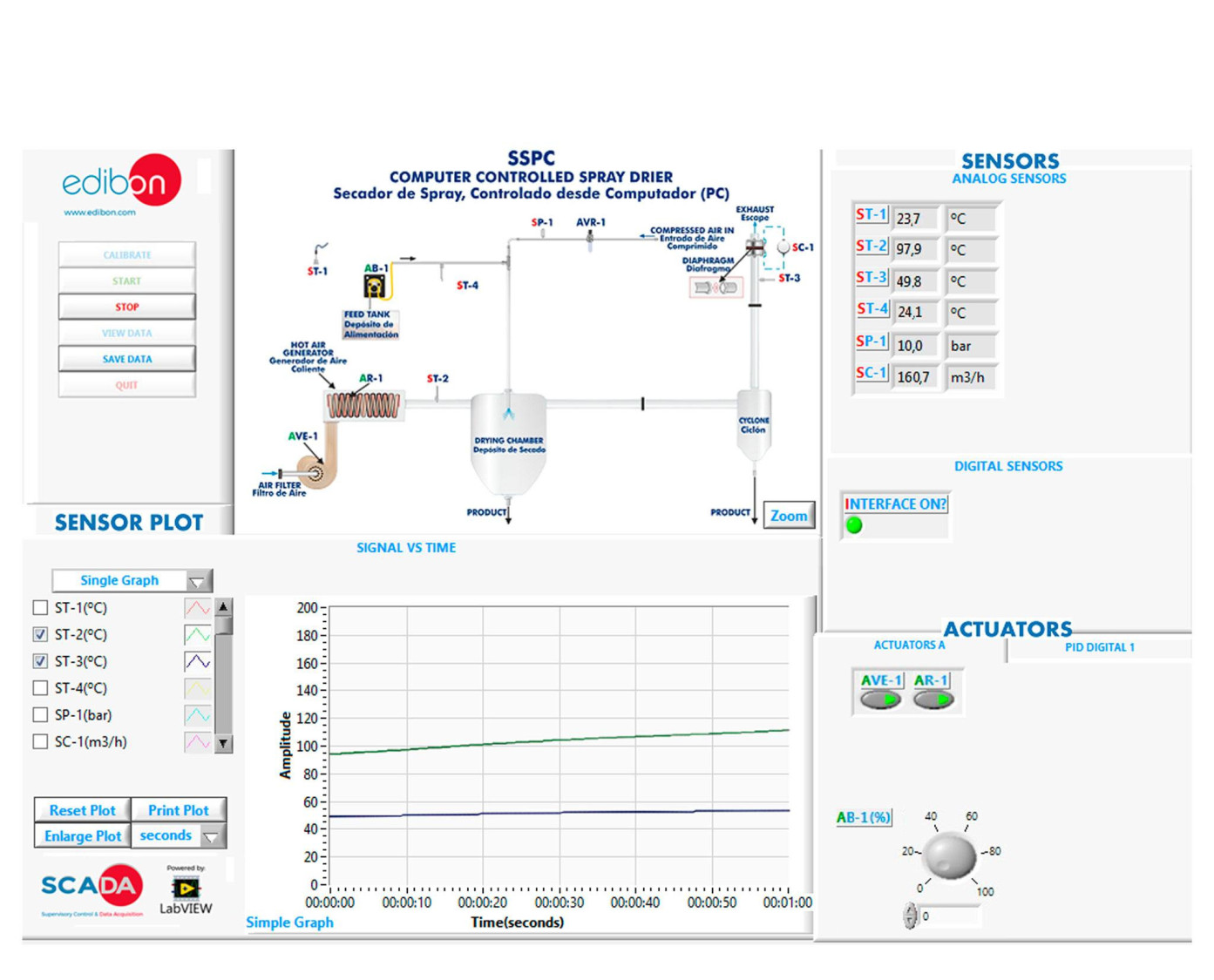

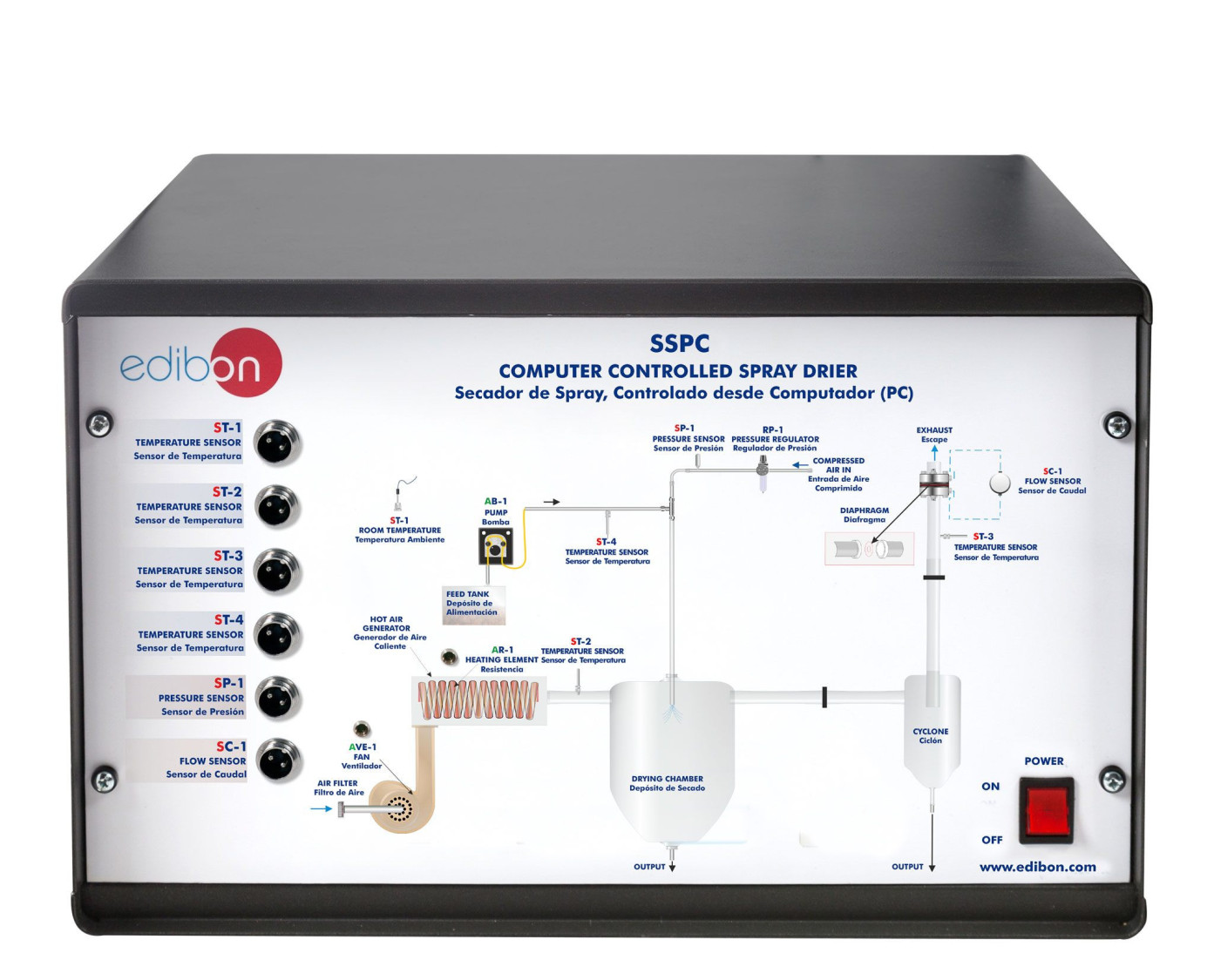

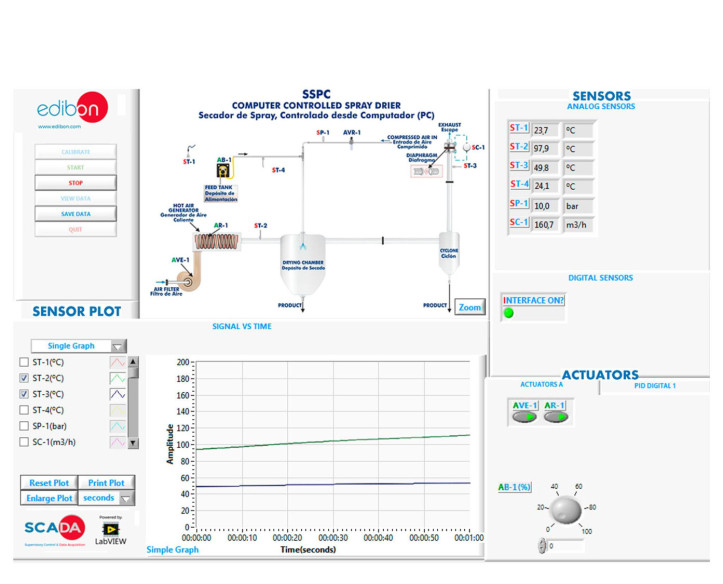

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + aControl Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, forcontrolling the process and all parameters involved in the process.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

  1. Operation principle of a spray drier.
  2. Effect of the drop size on the drying process.
  3. Effect of the air input temperature on the drying process.
  4. Effect of the feed flow of the product on the drying process.
  5. Mass balance of a spray drier.
  6. Spray drier efficiency.
  7. Sensors calibration.

장비로 수행 할 수있는 더 많은 실용적 연습

  1. Energy balance of a spray drier.

Other possibilities to be done with this Unit:

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivate parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the SSPC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the SSPC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
