The Computer Controlled Water Quality Control Unit, "PCCAC", has been designed to control and regulate the main physical-chemical parameters characteristic of water quality: conductivity, pH, oxygen concentration, and redox potential.

일반적인 설명보기

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어
FSS

고장 시뮬레이션 시스템
PLC

PLC에 의한 산업 프로세스 제어
ELK

EDIBON 소프트웨어 개발 키트, NI LabVIEW™에서 제공하는 기능
ECR

NI CompactRIO를 사용한 EDIBON의 산업용 모듈식 시스템
ESN

EDIBON SCADA-Net
ECL

EDIBON 원격 교육

관련 뉴스

Water Treatment: A global priority that demands educational innovation
Water Treatment: A global priority that demands educational innovation
Water is an essential resource for human life, economic development, and the planet’s ecological balance. However, as we move deeper into the 21st century, its availability and quality are increasingly at risk. Population growth, industrial and agricultural pollution, water scarcity in vulnerable...
더 읽어보기
CO₂ adsorption: a current necessity
CO₂ adsorption: a current necessity
In a world where climate change represents one of the greatest threats to our future, carbon dioxide (CO2) adsorption has become an urgent priority. The increasing concentration of CO2 in the atmosphere, primarily driven by human activities such as fossil fuel combustion and deforestation, has...
더 읽어보기
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
더 읽어보기
직접 공기 포집: 기후 변화에 맞서는 핵심 기술
직접 공기 포집: 기후 변화에 맞서는 핵심 기술
직접 공기 포집 (DAC)은 액체 용매 또는 고체 흡수제와의 화학 반응을 사용하여 공기 중의 CO₂를 직접 제거하는 혁신적인 기술입니다. 높은 비용과 에너지 소비와 같은 도전 과제가 있지만, DAC는 대기 중 CO₂ 농도를 줄이고 기후 변화를 완화하는 잠재적 해결책을 제공합니다. DAC의 연구 및 개발을 지속하는 것은 그 실행 가능성과 효과를 개선하는 데 중요합니다.
더 읽어보기
음용수 처리 시스템 이해 및 개선
음용수 처리 시스템 이해 및 개선
폐수 처리 시설 식수 처리 시설이 안전한 식수 제공에 중점을 두는 반면, 폐수 처리 시설은 사용된 물을 다시 환경에 방출하기 전에 처리합니다. 이러한 시설은 수자원 보호와 공중 보건에 중요한 역할을 합니다. 고급 처리 기술은 오염 물질을 제거하고 처리된 물이 환경 기준을 충족하도록 보장합니다.
더 읽어보기
NEW Food & Water technologies leaflets
NEW Food & Water technologies leaflets
Food Technology is a branch of Food Science based on multidisciplinary knowledge of nutrition, chemical analysis, physics, biochemistry and engineering. Water treatment technologies obtain drinking water, so necessary for our life. Both disciplines have become in recent years an indispensable...
더 읽어보기

일반적인 설명

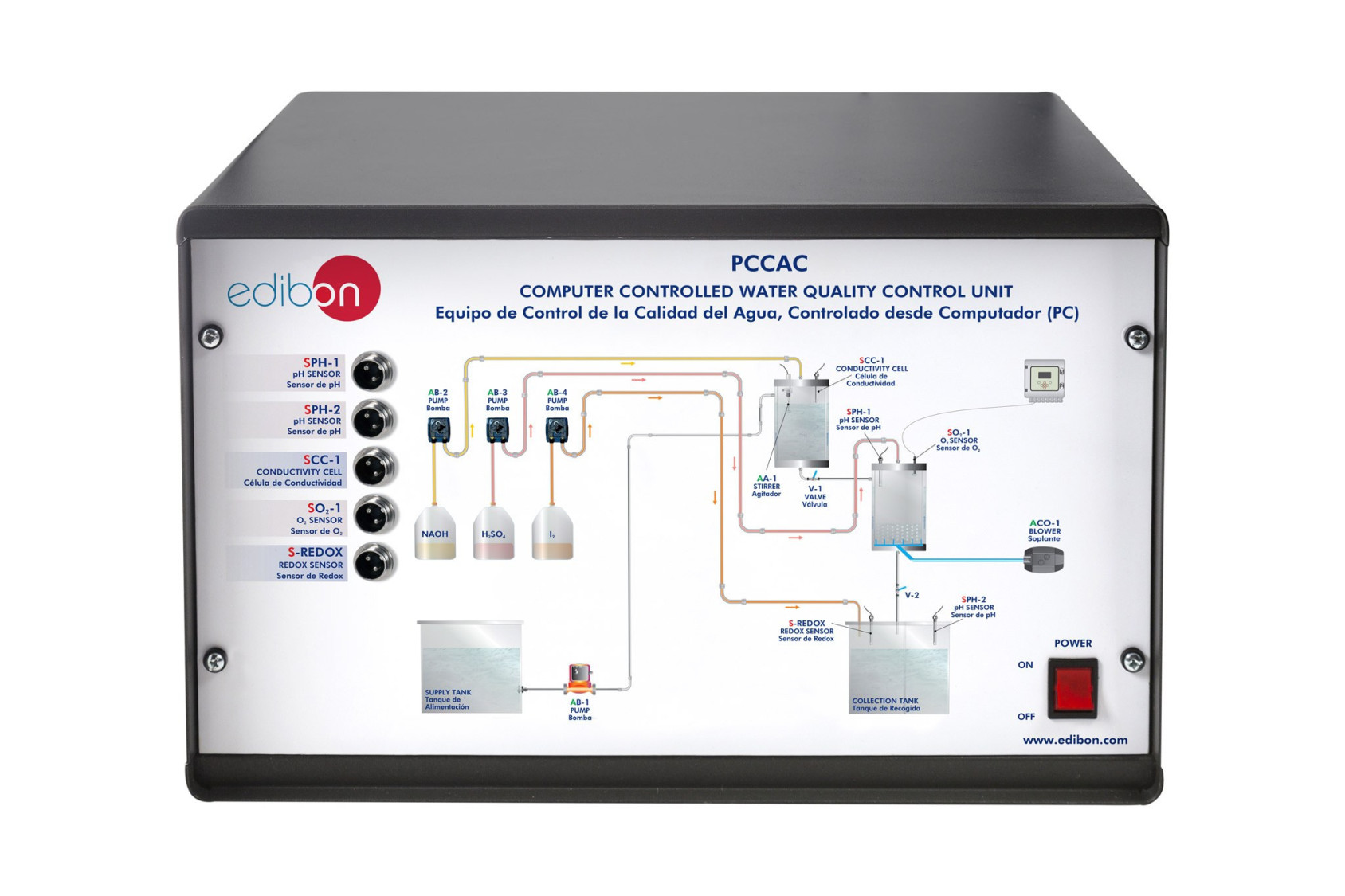

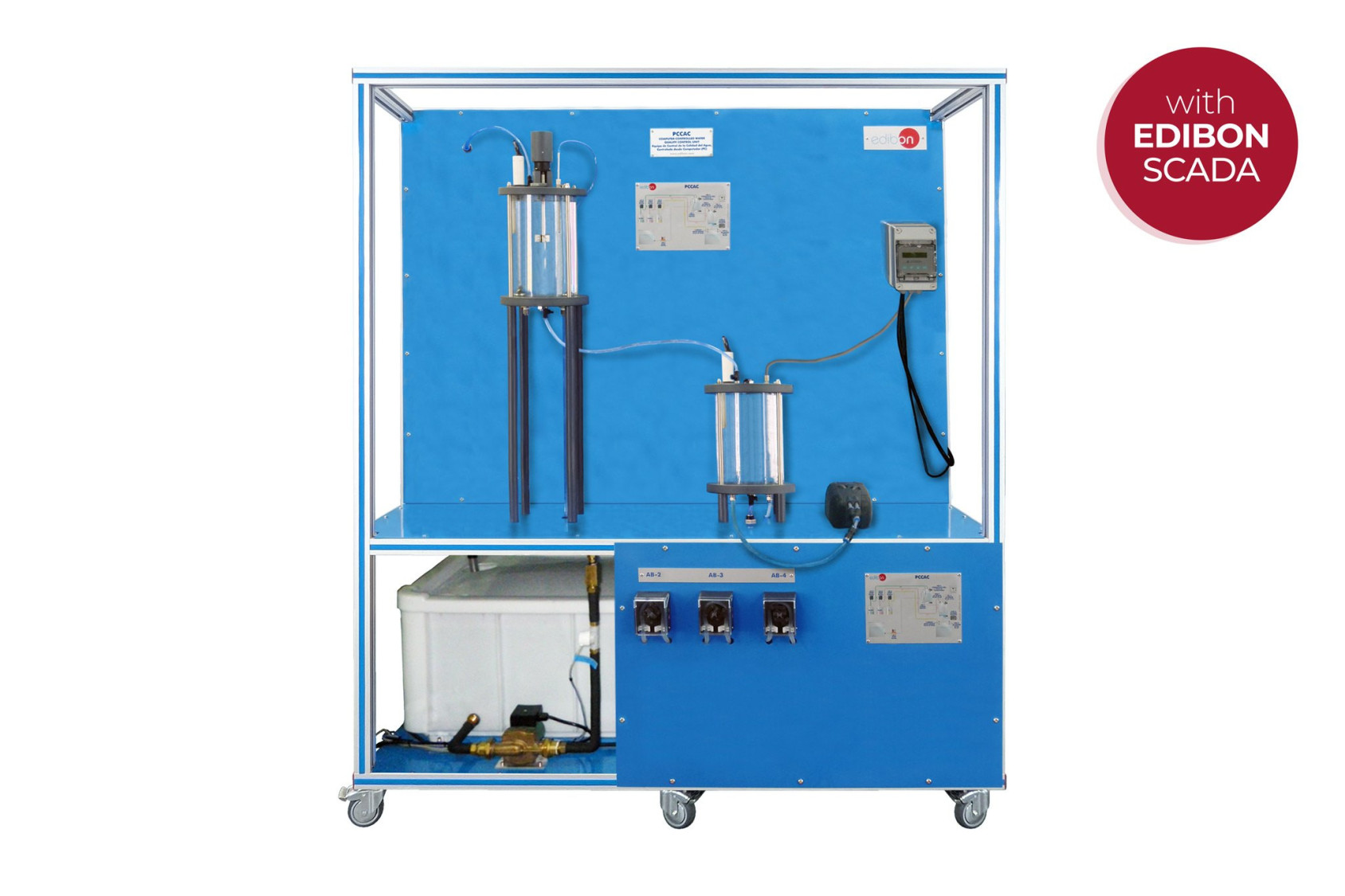

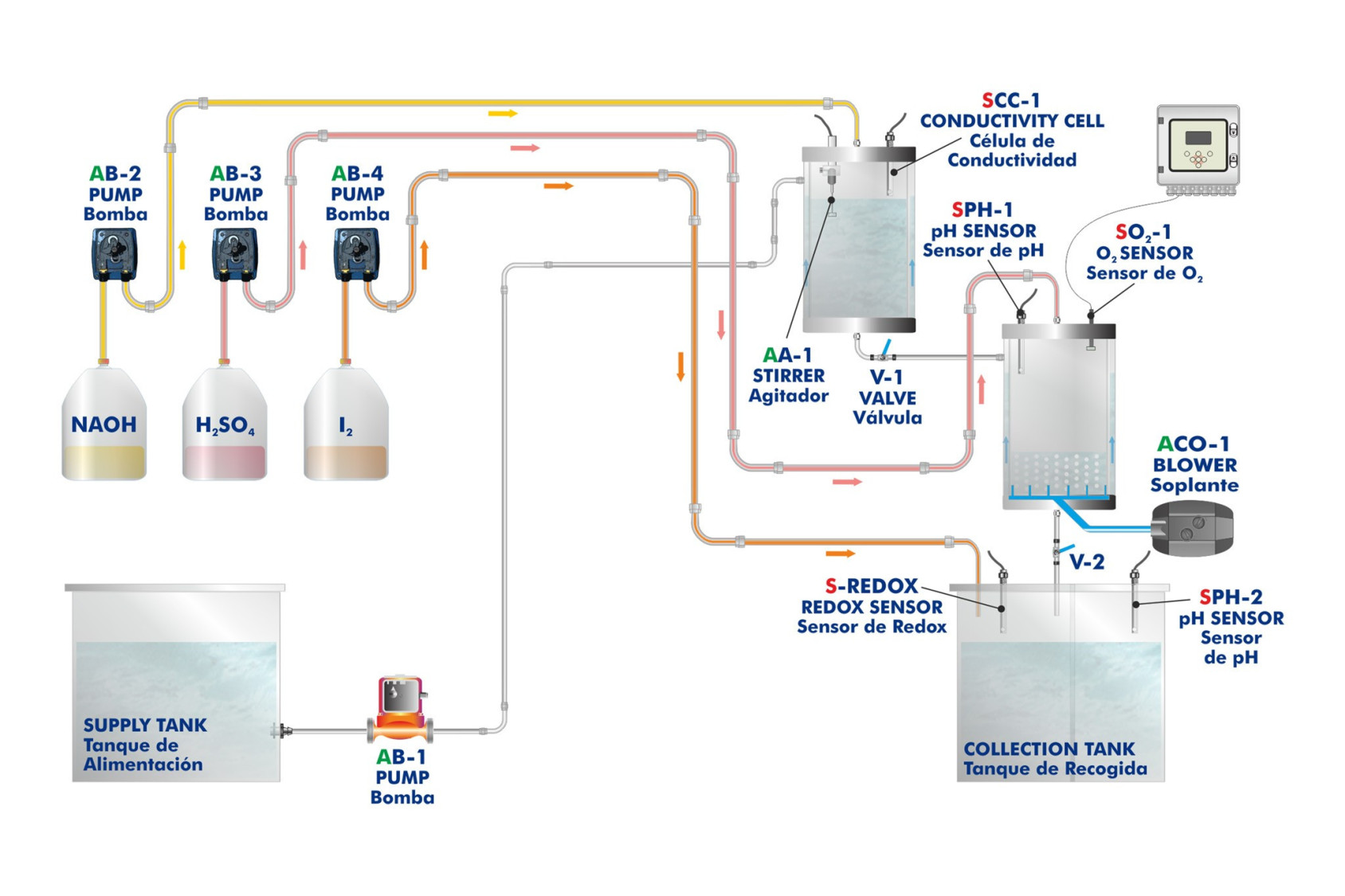

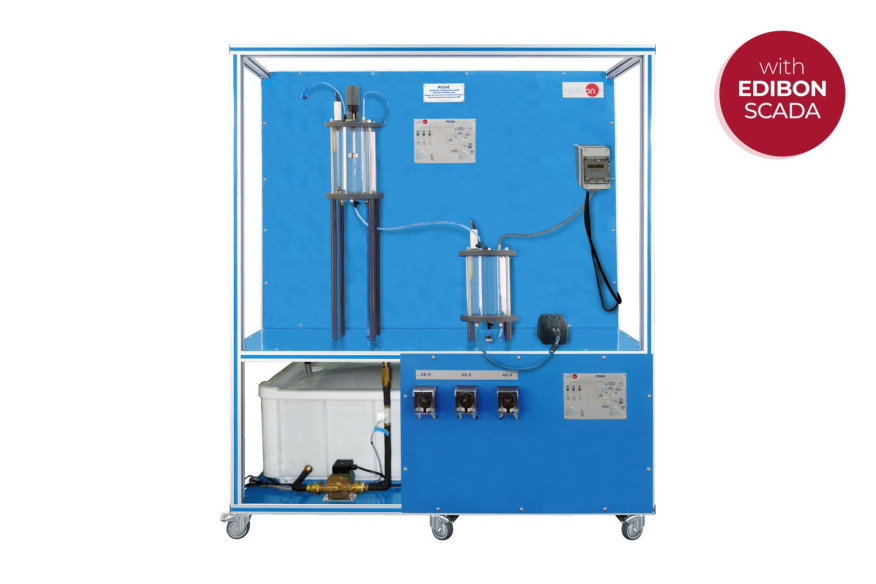

The Computer Controlled Water Quality Control Unit, "PCCAC", has been designed to use a pump to transfer water from a feed tank to a first transparent tank equipped with an agitator and conductivity sensor. In this tank, conductivity is regulated by adding diluted caustic soda driven by a peristaltic pump controlled by a computer.

Afterwards, water flows by gravity towards a second transparent tank equipped with a pH sensor and a dissolved oxygen sensor. Due to the caustic soda added to the first tank, the pH increases considerably. Diluted sulfuric acid is added with a computer controlled peristaltic pump to neutralize water to a suitable pH. A computer controlled compressor will inject compressed air in this second tank to regulate dissolved oxygen.

Finally, water flows towards a collection tank, where the redox potential and the pH are measured through sensors. Other computer controlled peristaltic pump allows the addition of an iodine solution to regulate the redox potential.

P, PD, PI and PID controls for the different stages.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

  1. Study and influence of the main physical-chemical parameters on the water quality.
  2. Analysis of the conductivity, pH, oxygen concentration and redox potential of water.
  3. Influence of caustic soda on the electric conductivity of water.
  4. Influence of caustic soda on the water pH.
  5. Influence of sulfuric acid on the water pH.
  6. Influence of air injection on the water oxygen concentration.
  7. Influence of iodine on the water redox potential.
  8. Analysis and study of different types of control P, PD, PI, PID.
  9. Sensors calibration

장비로 수행 할 수있는 더 많은 실용적 연습

  1. Study and influence of the main physical-chemical parameters on the water quality.
  2. Analysis of the conductivity, pH, oxygen concentration and redox potential of water.
  3. Influence of caustic soda on the electric conductivity of water.
  4. Influence of caustic soda on the water pH.
  5. Influence of sulfuric acid on the water pH.
  6. Influence of air injection on the water oxygen concentration.
  7. Influence of iodine on the water redox potential.
  8. Analysis and study of different types of control P, PD, PI, PID.
  9. Sensors calibration
  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the PCCAC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the PCCAC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.

품질

판매 후 서비스

정보 요청
