ELECTRICAL CONNECTION OF REFRIGERANT COMPRESSORS UNIT - TECR

혁신적인 시스템

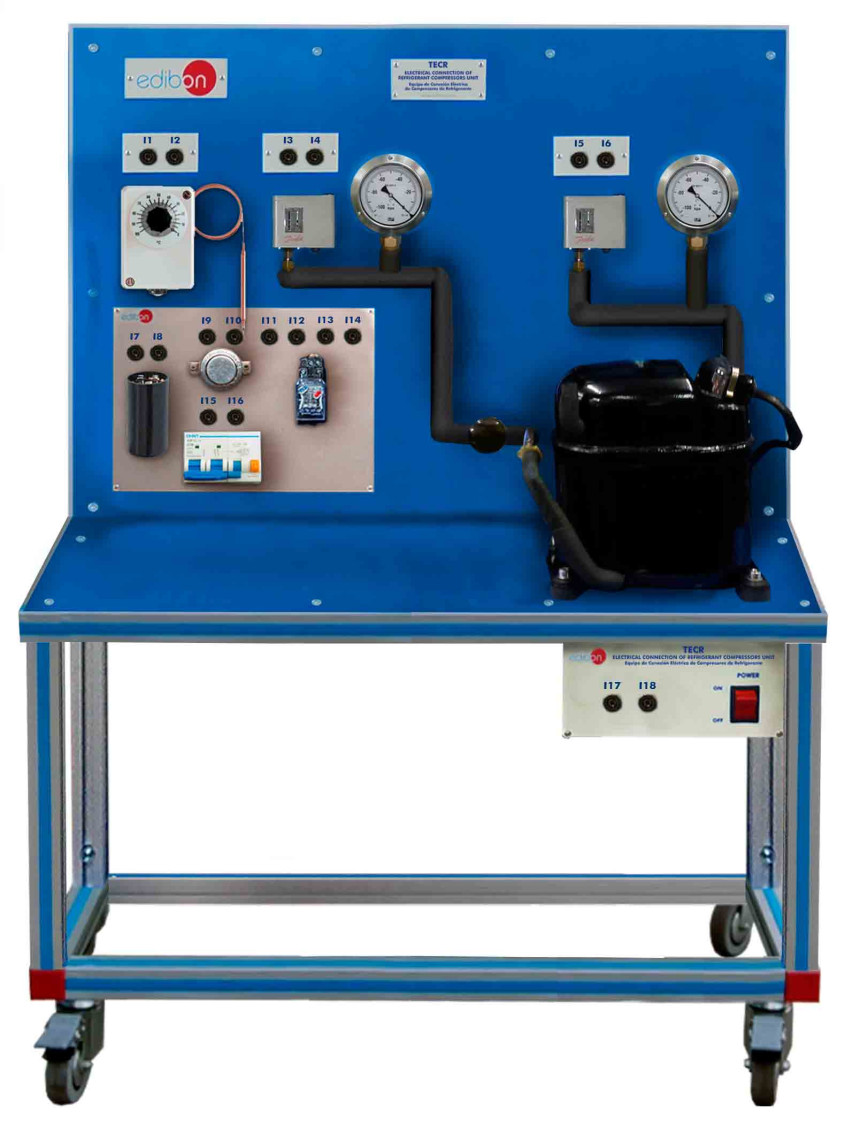

The Electrical Connection of Refrigerant Compressors Unit, "TECR", includes the electrical elements required for the start and operation of a refrigerant compressor and the necessary safety elements, arranged on a panel in a clear and visible way, with connections distributed in such a way that they can be easily identified.

일반적인 설명보기

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어

관련 뉴스

Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and thermotechnology are fundamental fields of engineering that play a critical role across various industries, from energy generation to climate control. Understanding these foundational concepts is essential not only for engineers but also for fostering technological innovations...
더 읽어보기
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
더 읽어보기
We are excited to celebrate the publication of the article by Prof. Dr. Nina Penkova titled "Performance of Diffusion Absorption Refrigerators with Variable Input Power" The study explores how absorption refrigerators, which utilize waste or solar energy for heating and cooling, can operate...
더 읽어보기

일반적인 설명

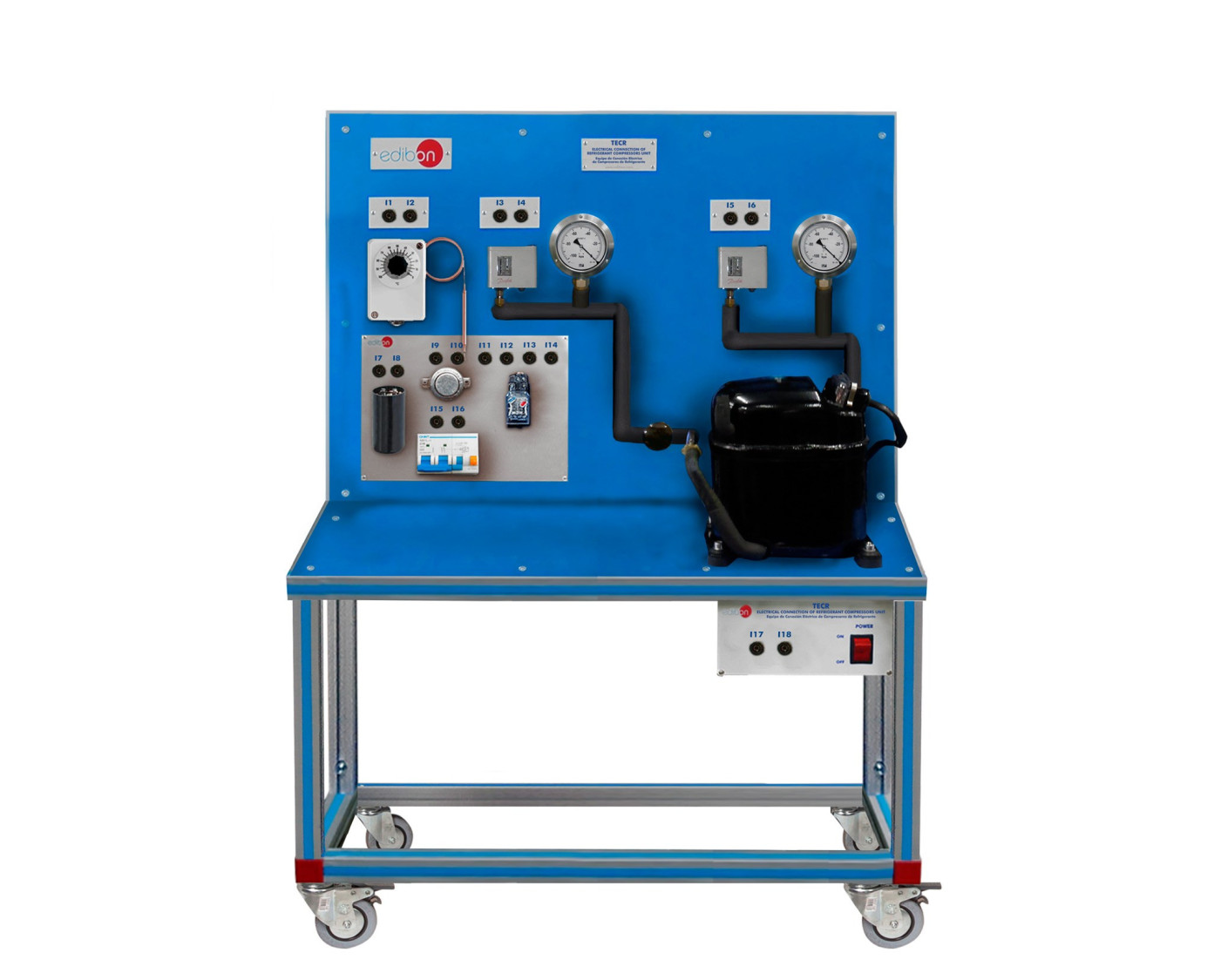

The Electrical Connection of Refrigerant Compressors Unit, "TECR", includes the electrical elements required for the start and operation of a refrigerant compressor and the necessary safety elements, arranged on a panel in a clear and visible way, with connections distributed in such a way that they can be easily identified.
