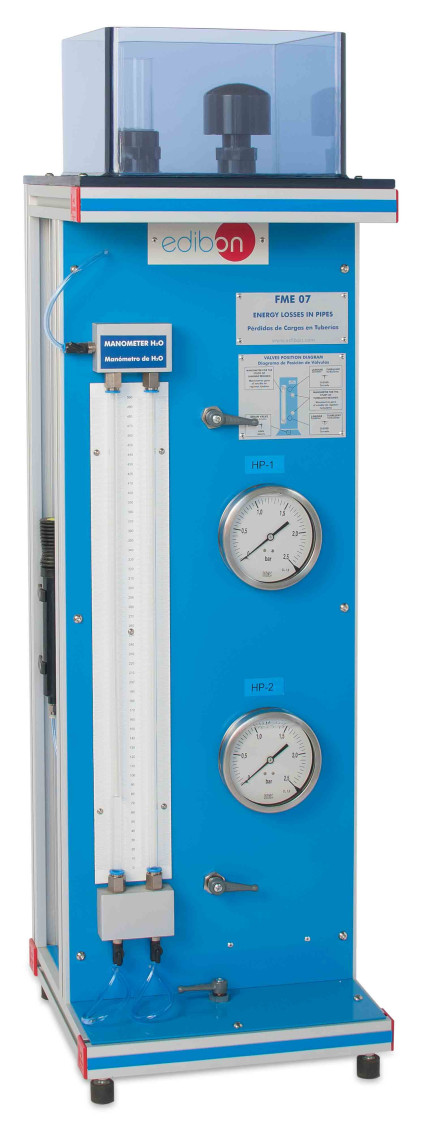

FME07 Energy Losses in Pipes

With the Energy Losses in Pipes, "FME07", designed by EDIBON, the user will be able to measure the head losses generated in a pipeline for different flow rates in both laminar and turbulent regimes.

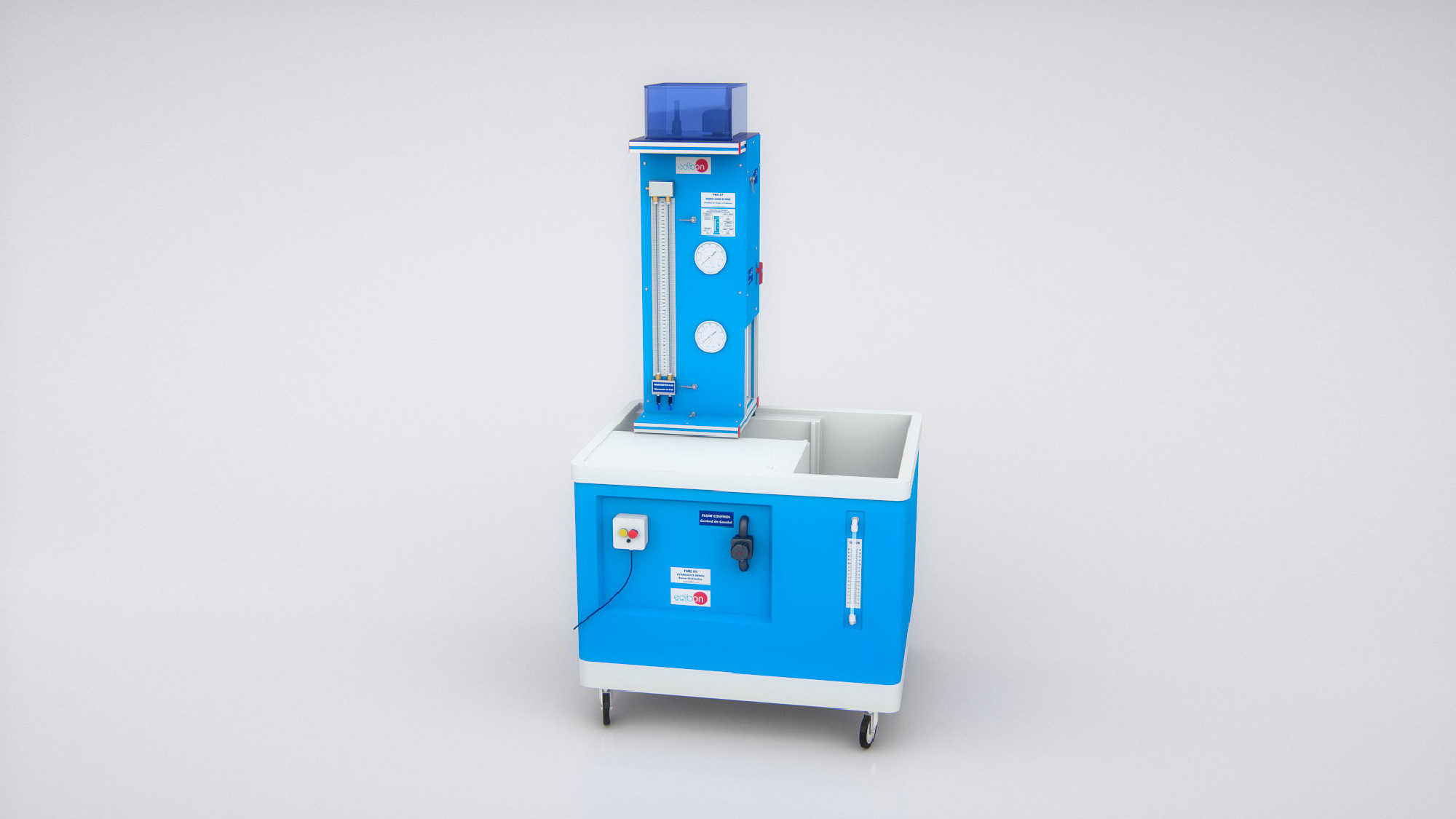

The unit consists of the following elements, used in combination with the Hydraulics Bench (FME00) or the Basic Hydraulic Feed System (FME00/B):

• Pipe with quick connector to be coupled to the water outlet’s mouthpiece at the Hydraulics Bench (FME00) or the Basic Hydraulic Feed System (FME00/B).
• 6 mm external/4 mm inner diameter metallic test pipe.
• One water column differential manometer.
• Constant height tank.
• Two Bourdon type manometers.
